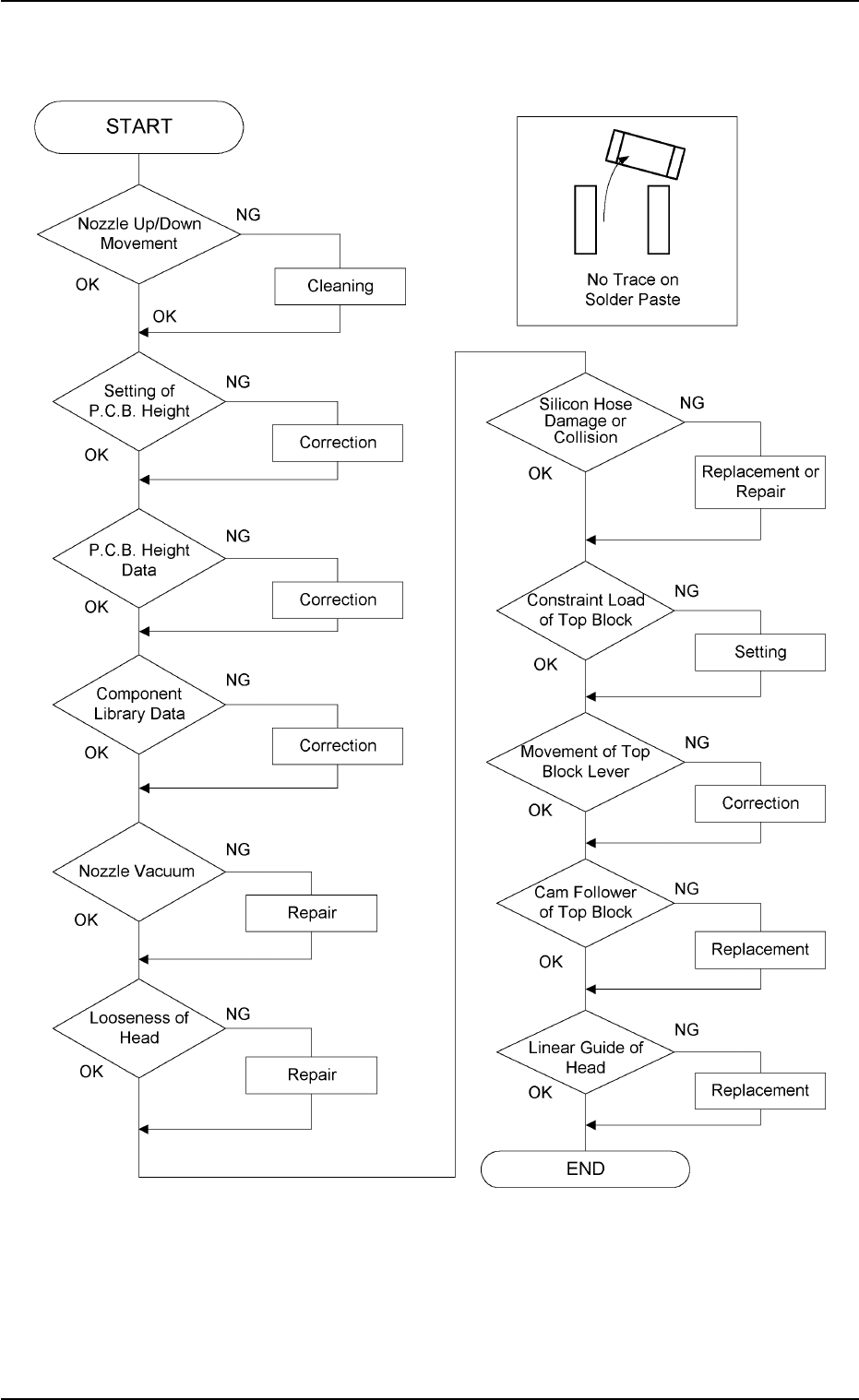

(2) No Component Placement Marks at Specified Positions on P.C.B.

Lands

Fig. 4B40

0110-003 2-207 AFO01ETRP

5.3 Troubleshooting on Placement Errors

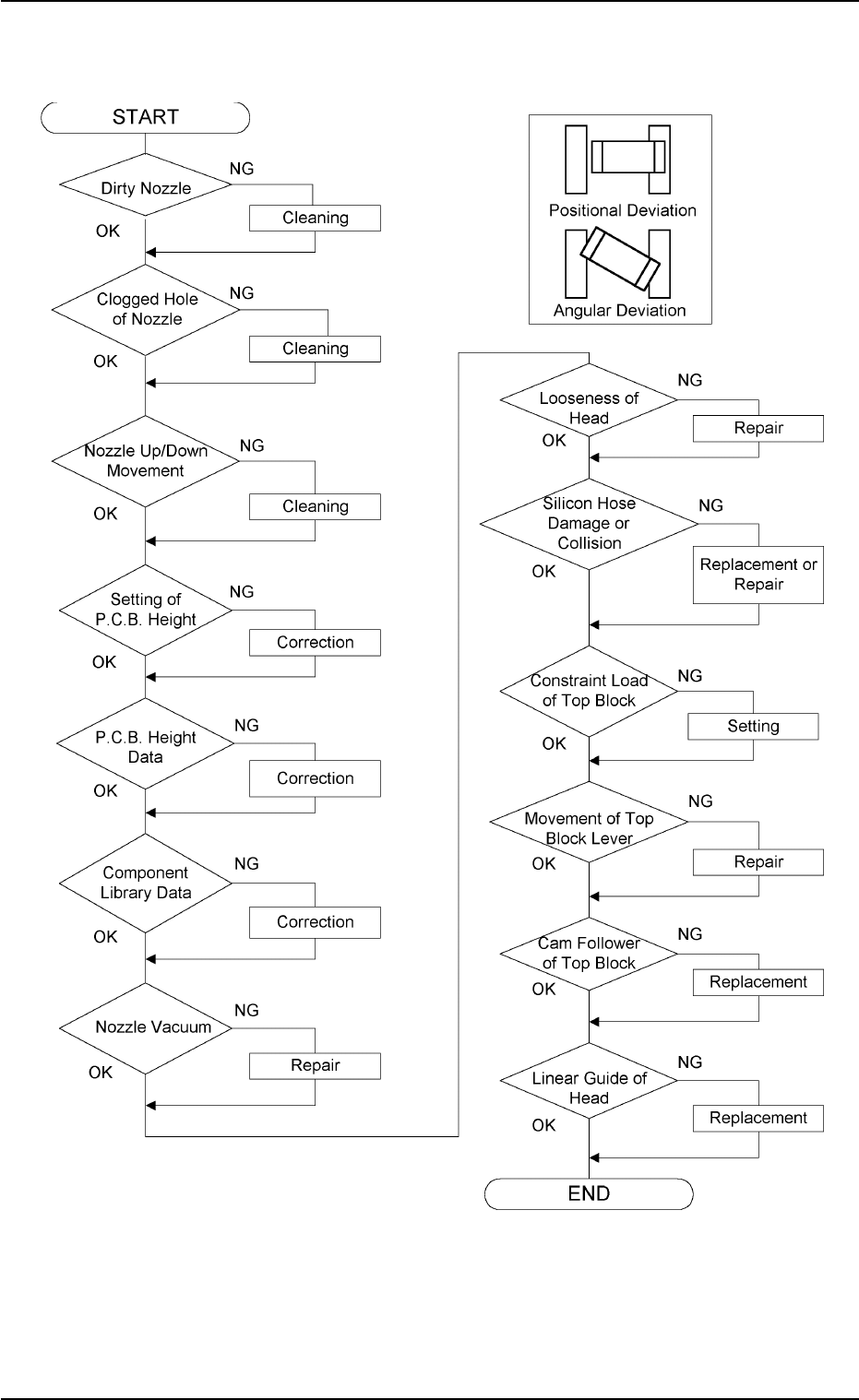

(3) Positional and Angular Deviations of Component Placement

Fig. 4B41

0110-003 2-208

AFO01ETRP

5.3 Troubleshooting on Placement Errors
