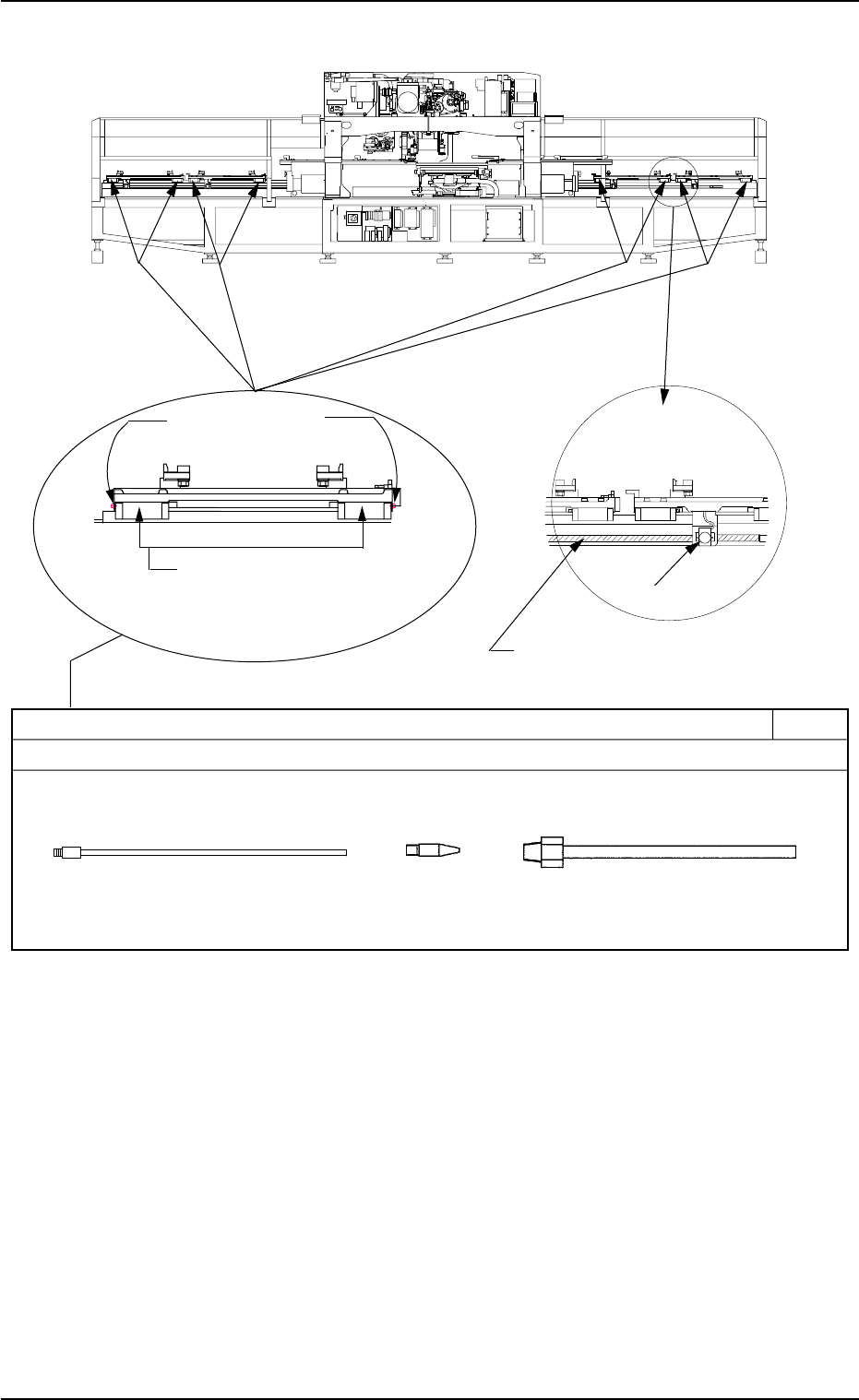

Grease Nipples Magnified View of Feeder Carriage Slide Block of Linear Guide Slide Block of Linear Guide (Rear Side) 6M5 Every 6 Months Lubrication (DAPHNE EPONEX GREASE No. 1) Grease should be applied every 6 months aft…
Grease Nipples
Magnified View of Feeder Carriage
Slide Block of Linear Guide
Linear Scale in Feeder Carriage Section
(Located in the areas of F1 through F4)
Encoder Head
Slide Block of Linear Guide (Front Side) 6M4
Every 6 Months Lubrication (DAPHNE EPONEX GREASE No. 1)
Grease should be applied every 6 months after the initial month.
* Use the FL- and P-type or the U- and P-type attachments.
Refer to "1.4.8 Lubrication of Linear Guide in Feeder Carriage Section" for details.
P Type
FL Type U Type
Fig. 4A29 Front View of Machine
0307-005 1-28
AFO01ETRP
1.3 Maintenance Spots
Grease Nipples
Magnified View of Feeder Carriage
Slide Block of Linear Guide
Slide Block of Linear Guide (Rear Side) 6M5
Every 6 Months Lubrication (DAPHNE EPONEX GREASE No. 1)
Grease should be applied every 6 months after the initial month.
* Use the FL- and P-type or the U- and P-type attachments.
Refer to "1.4.8 Lubrication of Linear Guide in Feeder Carriage Section" for details.
P TypeFL Type U Type
Fig. 4A32 Rear View of Machine
1.3 Maintenance Spots
0307-005 1-29 AFO01ETRP
(14) Placement Change Correction Section
(15) Nozzle Change Section
1.3 Maintenance Spots
0207-004 1-30 AFO01ETRP
Fig. 4A35 Front View of Machine
Fig. 4A36 Front View of Machine
