(14) Placement Change Correction Section (15) Nozzle Change Section 1.3 Maintenance Spots 0207-004 1-30 AFO01ETRP Fig. 4A35 Front View of Machine Fig. 4A36 Front View of Machine

Grease Nipples

Magnified View of Feeder Carriage

Slide Block of Linear Guide

Slide Block of Linear Guide (Rear Side) 6M5

Every 6 Months Lubrication (DAPHNE EPONEX GREASE No. 1)

Grease should be applied every 6 months after the initial month.

* Use the FL- and P-type or the U- and P-type attachments.

Refer to "1.4.8 Lubrication of Linear Guide in Feeder Carriage Section" for details.

P TypeFL Type U Type

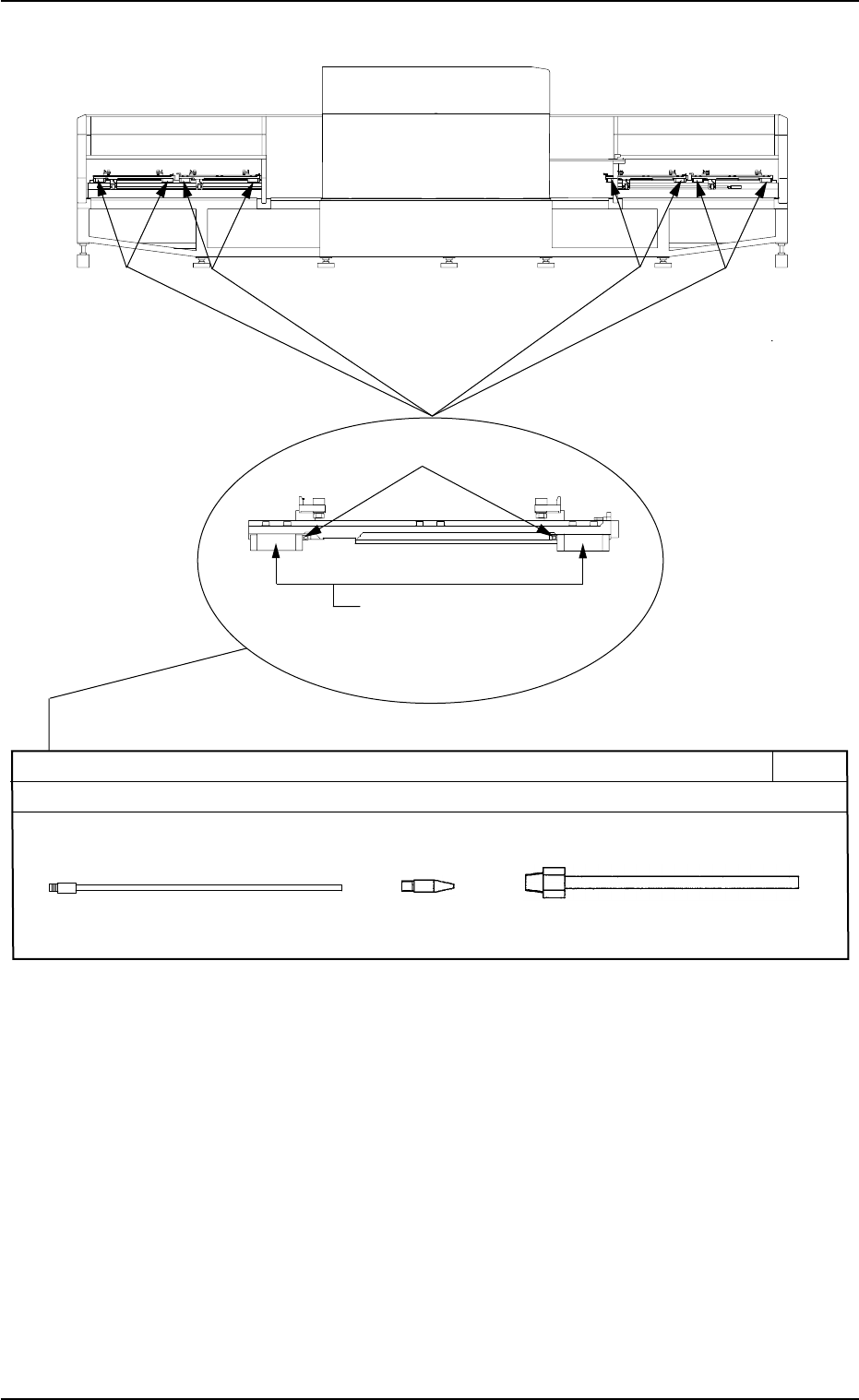

Fig. 4A32 Rear View of Machine

1.3 Maintenance Spots

0307-005 1-29 AFO01ETRP

(14) Placement Change Correction Section

(15) Nozzle Change Section

1.3 Maintenance Spots

0207-004 1-30 AFO01ETRP

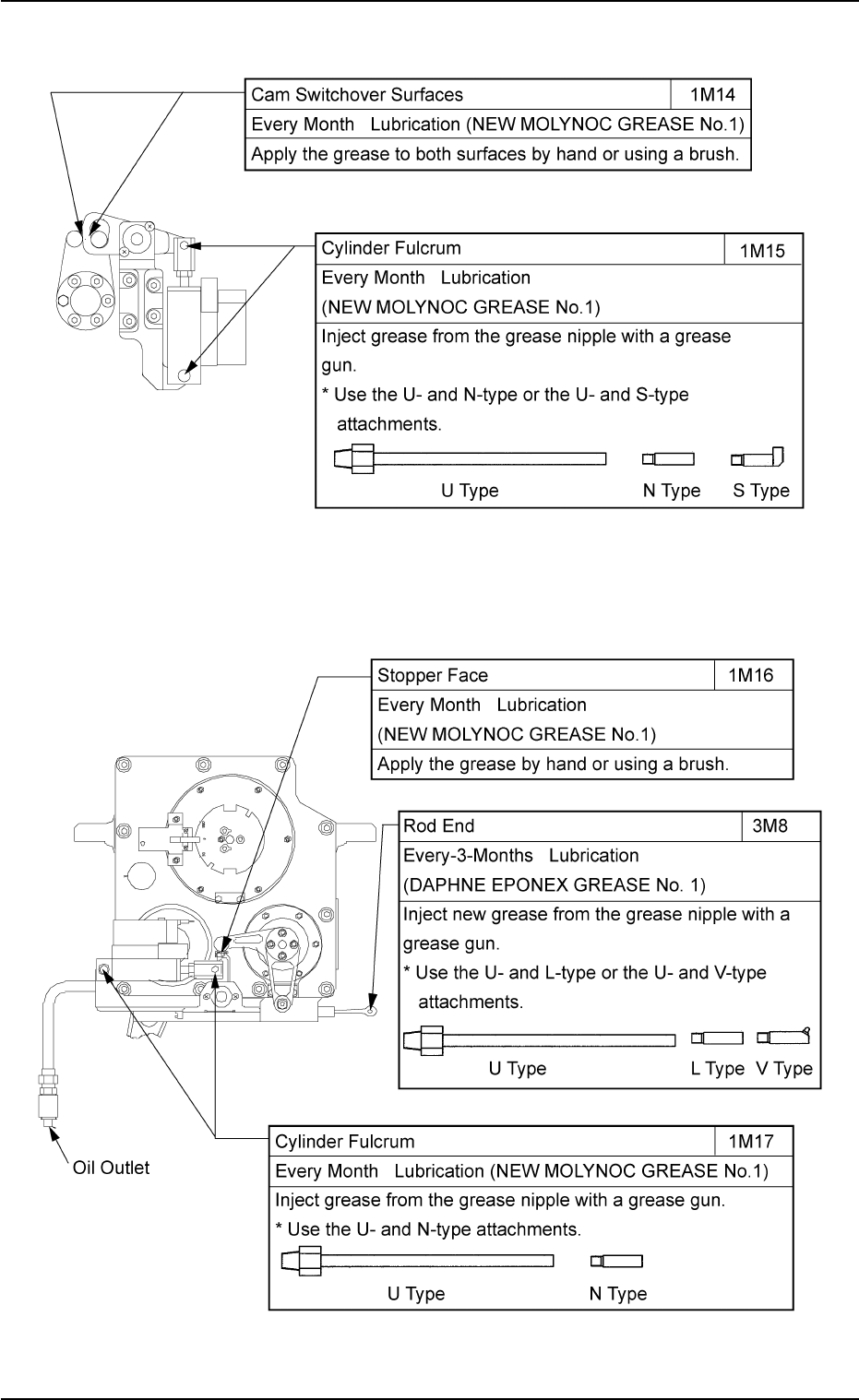

Fig. 4A35 Front View of Machine

Fig. 4A36 Front View of Machine

(16) Nozzle Change/Return Section

1.3 Maintenance Spots

0207-004 1-31 AFO01ETRP

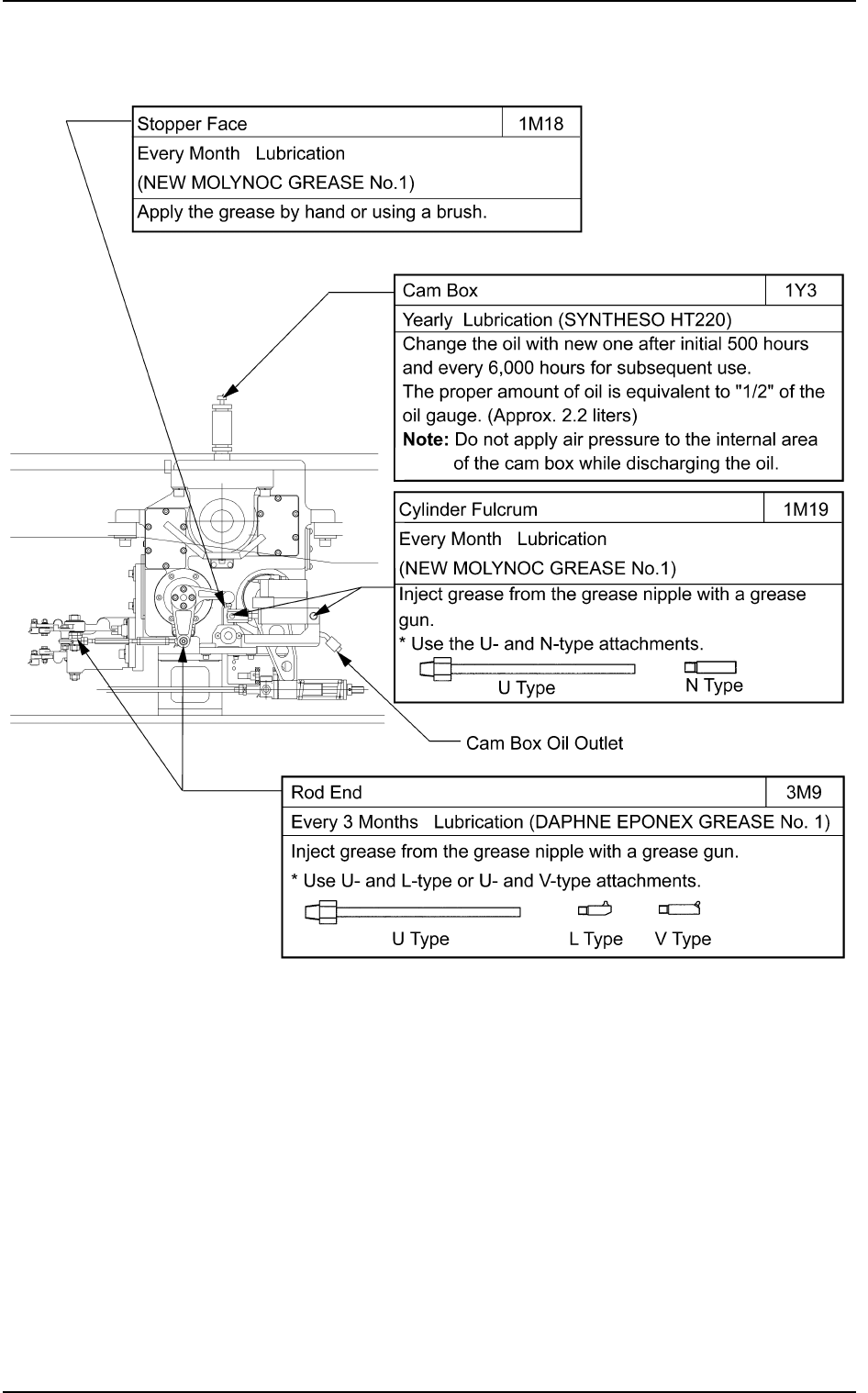

Fig. 4A37

Rear View of Machine
