4OM-1050-002 - 第55页
(23) Nozzle Guide Section 1.3 Maintenance Spots 0207-004 1-41 AFO01ETRP Fig. 4A47
(22) Tape Feed Unit Section
1.3 Maintenance Spots
0207-004 1-40 AFO01ETRP
Fig. 4A46

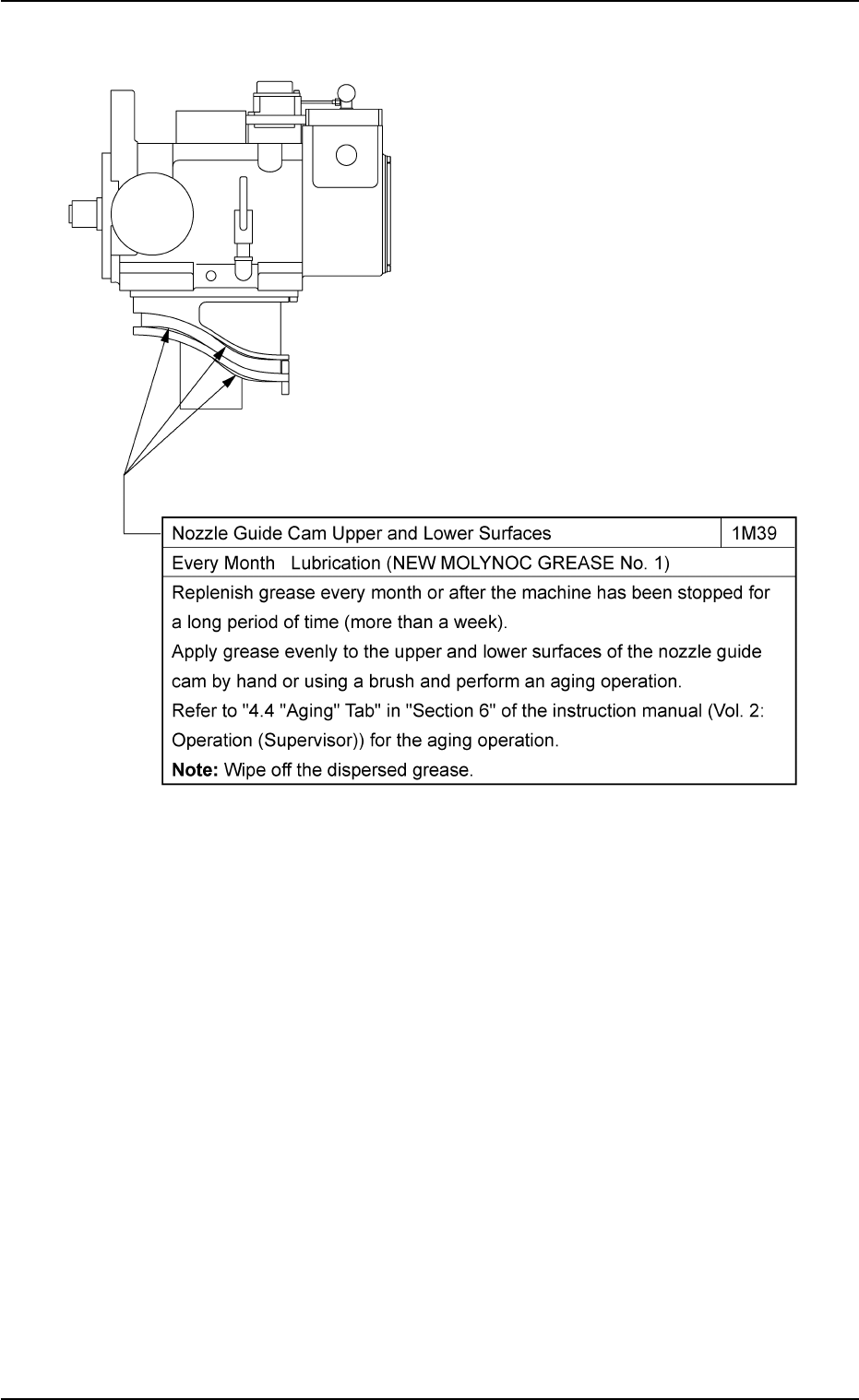

(23) Nozzle Guide Section
1.3 Maintenance Spots
0207-004 1-41 AFO01ETRP
Fig. 4A47

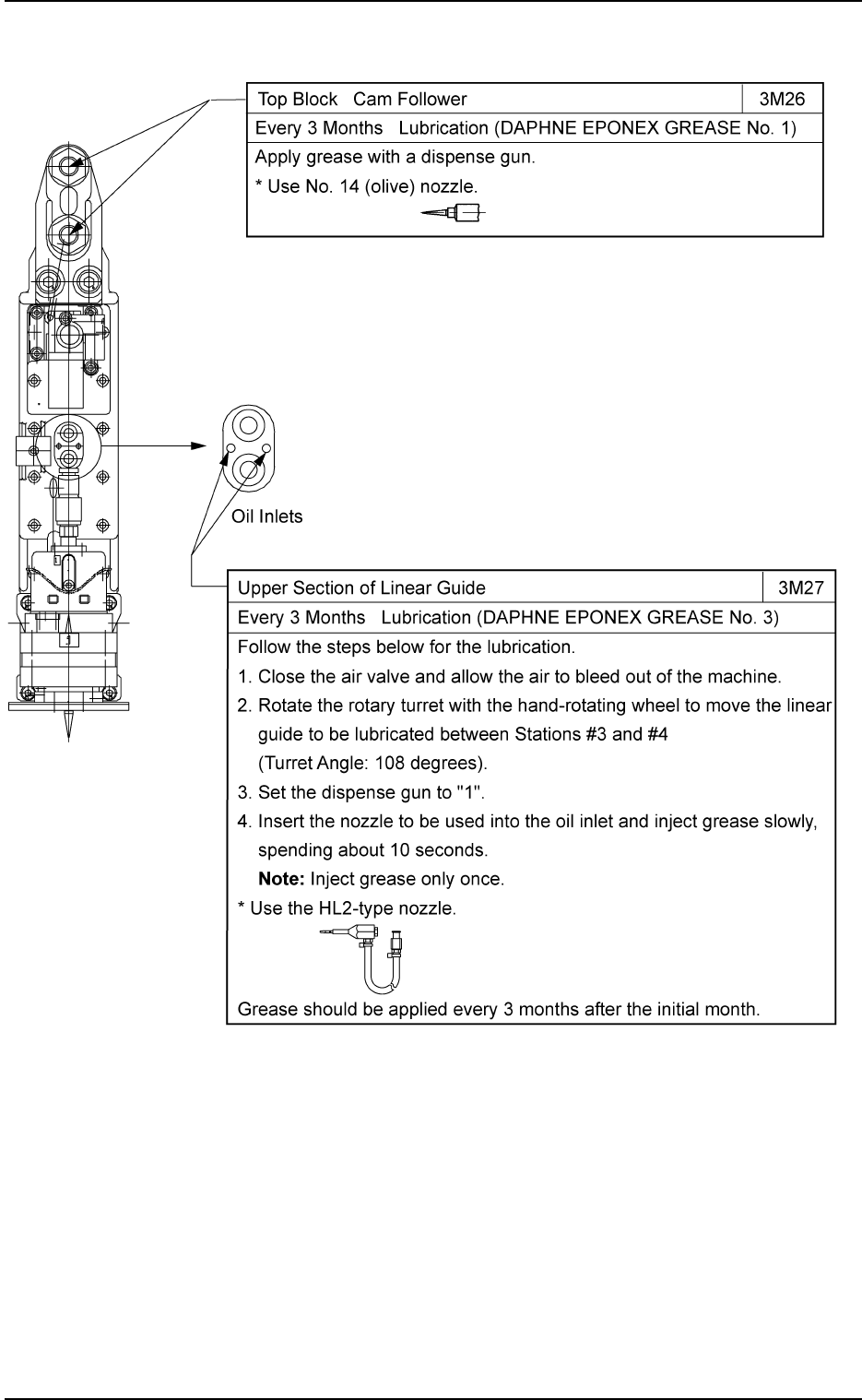

(24) Head Up/Down Section
1.3 Maintenance Spots
0207-004 1-42 AFO01ETRP
Fig. 4A48
