1.4 Maintenance Method

0307-005 1-69 AFO01ETRP

(2) When the [Start Oil Supply] button is pressed in the "Oil Supply" tab

sheet, the following sheet appears.

Fig. 4A84-6

(3) Press the [ALL] button entitled "ZERO". In 2 seconds, press the

[ENABLE] button on the operation panel. All devices are zeroed.

(4) Press one of the [F1], [F2A], [F3B], [F2B], [F3A] and [F4] buttons

entitled "FEEDER READY".

(5) Press the [ON] button entitled "MOVE". In 2 seconds, press the [EN-

ABLE] button on the operation panel.

All axis automatic tuning takes place and the following sheet ap-

pears. (The feeder carriage moves slightly.)

Fig. 4A84-7

1.4 Maintenance Method

0307-005 1-70 AFO01ETRP

(6) Press the [ON] button entitled "MOVE". In 2 seconds, press the [EN-

ABLE] button on the operation panel.

The grease nipple of No. 3 on Feeder Carriage #2 (F2) moves to the

grease supply position and the following sheet appears.

Fig. 4A84-8 "Oil Supply" Tab Sheet (First Grease Supply Position)

*1 Supply Hole Position

*2 First Grease Supply Position

The current grease supply position is indicated in red.

*3 Current Oil Supply No.

(7) Use the FL- and P-type attachments.

Give one push to the grease gun to inject grease from the relevant

nipple.

1.4 Maintenance Method

0307-005 1-71 AFO01ETRP

(8) Press the [ON] button entitled "MOVE". In 2 seconds, press the

[ENABLE] button on the operation panel.

The grease nipple of No. 2 on Feeder Carriage #2 moves to the

grease supply position and the following sheet appears. Inject

grease from the nipple.

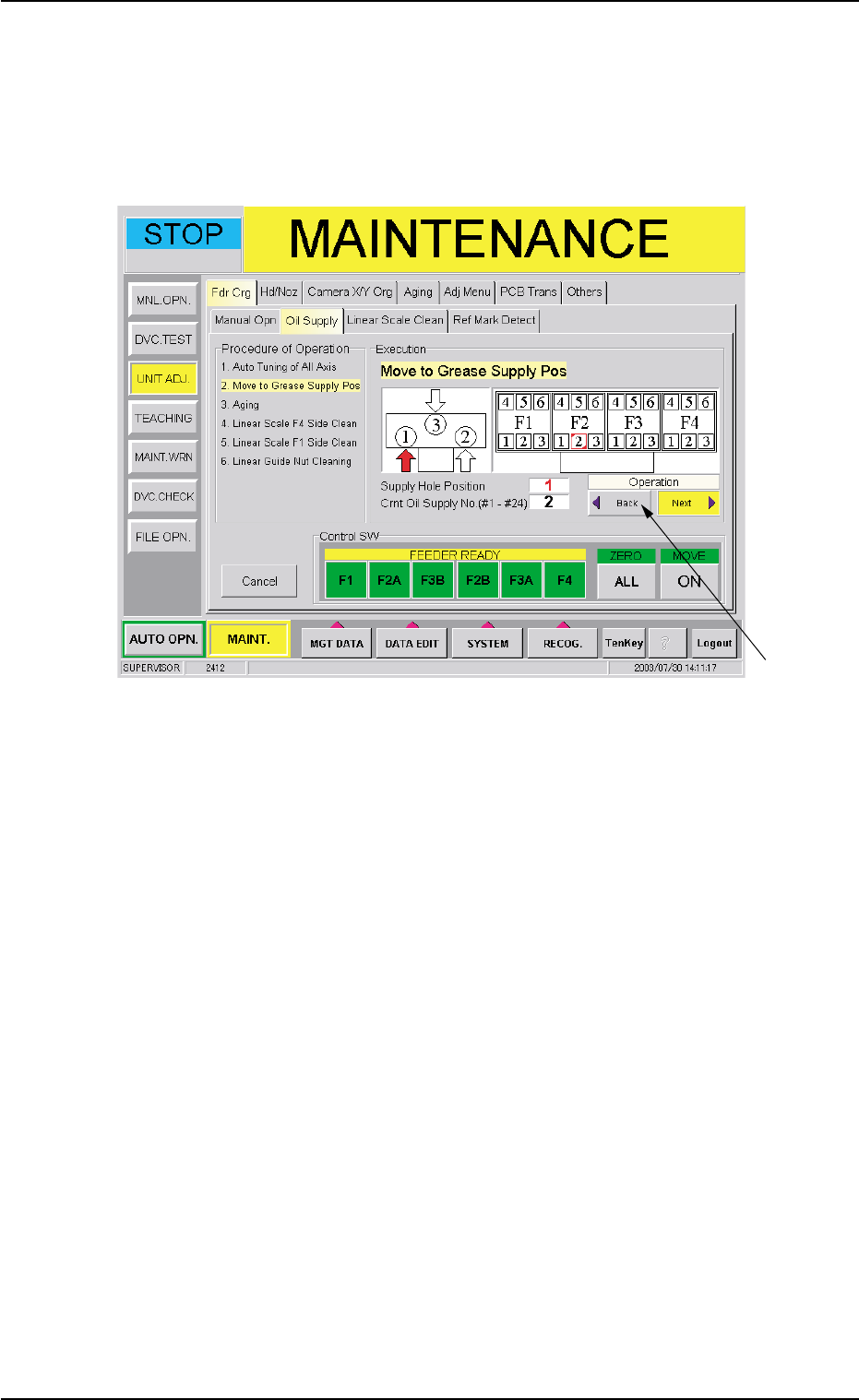

Fig. 4A84-9

"Oil Supply" Tab Sheet (Second Grease Supply Position)

(9) Apply grease to 24 spots (the front and rear sides of the machine)

in the same way.

Whenever you notice that you forgot to supply grease to a spot,

press the [Back] button (*1) and the [ON] button (entitled

"MOVE"). In 2 seconds, press the [ENABLE] button on the opera-

tion panel. The previous grease supply position is selected.
