4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.3 Database Settings Edition 08/2008 EN
100
4

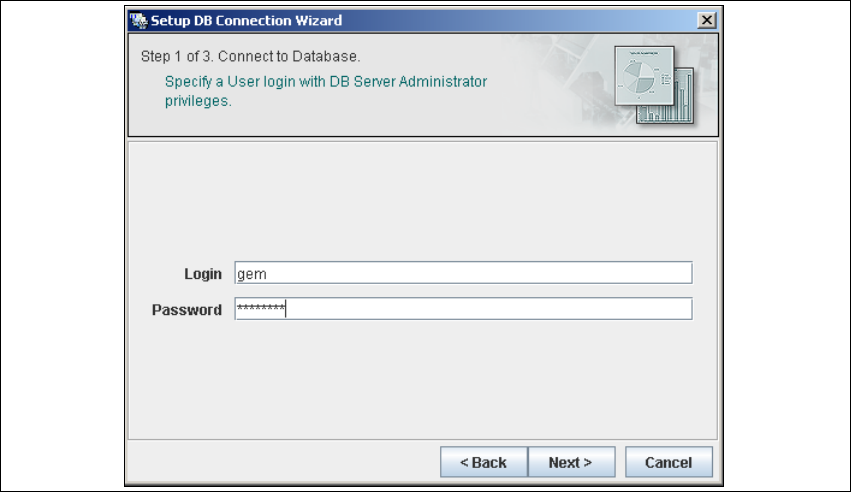

Fig. 4 - 53 Step 1- database connection wizard
At this point, the wizard will connect to the MS SQL Server and run tests to identify whether
the specified database, login and user roles exist. You will see a list of changes that the
wizard will undertake, in order to perform setup and configure the system database. 4
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 08/2008 EN 4.3 Database Settings
101
– Step 2 - Perform Configuration Test
→ At Step 2 you can change your settings. This is also where you define the name of the SE
system database for the line and where you specify the user (and corresponding password)
who is to have access to this database.
4
Fig. 4 - 54 Step 2- database connection wizard
→ Once you have made and checked all entries, click on Next to continue.
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.3 Database Settings Edition 08/2008 EN
102
– Step 3- Configure Database
→ Step 3 takes your modifications from Step 2 and uses them to configure the database
connection.
4
Fig. 4 - 55 Step 3 database connection wizard
→ Click on Finish and the wizard will carry out the required configuration. The DB settings are
now correctly specified for your project. and the database and set user will be created.
→ You will receive a success message.
4
Fig. 4 - 56 Step 3 database connection wizard
→ Click OK. You can now configure your system database.
4
