5 Uninstallation Installation and Configuration Guide SIPLACE Explorer 5.2 Modify Edition 06/2008 EN 106 → Uninstallation will be performed. The Setup St atus dialog box shows yo u which features will be uninstalled or i…

Installation and Configuration Guide SIPLACE Explorer 5 Uninstallation

Edition 06/2008 EN 5.2 Modify

105

5.2 Modify

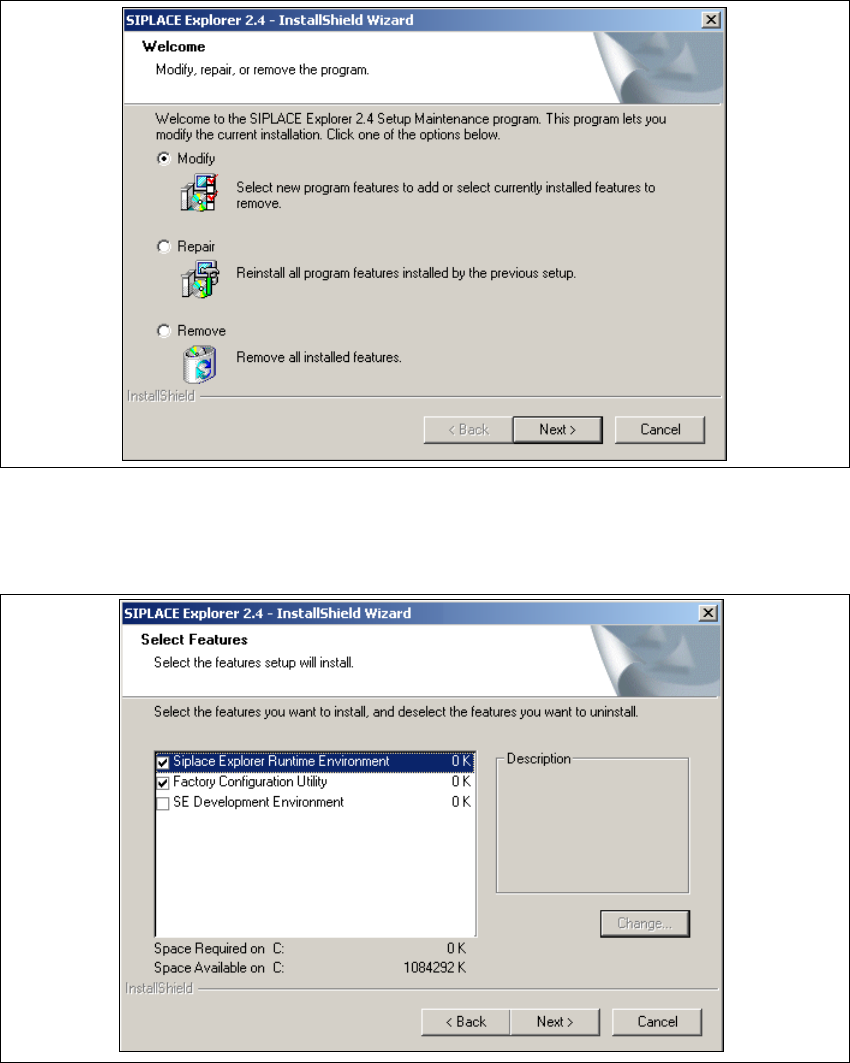

Fig. 5 - 2 SIPLACE Explorer 2.4 - install shield wizard

→ Click on Modify and then on Next to continue.

→ You will see the Select Features dialog box.

Fig. 5 - 3 SIPLACE Explorer 2.4 - install shield wizard

→ Now select the features you wish to remove, by disabling the relevant checkbox next to the

feature(s). The checkbox must be enabled if you wish to install the feature.

→ Once you have selected the required installation option, click on the Next button to continue.

5 Uninstallation Installation and Configuration Guide SIPLACE Explorer

5.2 Modify Edition 06/2008 EN

106

→ Uninstallation will be performed. The Setup Status dialog box shows you which features will

be uninstalled or installed.

Fig. 5 - 4 SIPLACE Explorer 2.4 - install shield wizard

→ SIPLACE Explorer 2.4 uninstallation/installation has been completed.

Fig. 5 - 5 Modify completed

→ Click on Finish to close the SIPLACE Explorer 2.4 - InstallShield Wizard.

Installation and Configuration Guide SIPLACE Explorer 5 Uninstallation

Edition 06/2008 EN 5.3 Repair

107

5.3 Repair

Fig. 5 - 6 SIPLACE Explorer 2.4 - install shield wizard

→ Click on Repair and then on Next to continue.

→ The recovery process will be performed. The Setup Status dialog box shows you which

features will be uninstalled or installed.

Fig. 5 - 7 SIPLACE Explorer 2.4 - install shield wizard
