Installation and Configuration Guide SIPLAC E Explorer 3 Installing SIPLACE Explorer Edition 08/2008 EN 3.1 Initial Installation of SIPLACE Explorer 2.4 31 → Now specify the folder in which you wish to in stall the ap pl…
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.1 Initial Installation of SIPLACE Explorer 2.4 Edition 08/2008 EN
30
→ If you have selected Cancel, install the version of J2SE Runtime Environment 6.0 update 1
included on the Support Media DVD and then restart the installation of SIPLACE Explorer.
NOTE
If you have the J2 Runtime environment (not J2SE Runtime Environment 6.0 update 1) -
available from Sun Microsystems at http://java.sun.com/j2se - installed on your system, the
website generated by the SIPLACE Explorer Website Builder will not function properly as it
is based on JSP, which requires J2SE Runtime Environment 6.0 update 1. 3
→ The installation of SIPLACE Explorer 2.4 will be continued once J2SE Runtime Environment
6.0 update 1 has been localized. The Customer Information dialog box will open.
3
Fig. 3 - 7 SIPLACE Explorer setup - specify customer information
→ Enter your name in the User Name field and the name of your company in the Company
Name field. Click on Next to continue. The Choose Destination Location dialog box will
open.
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 08/2008 EN 3.1 Initial Installation of SIPLACE Explorer 2.4
31
→ Now specify the folder in which you wish to install the application. The default folder is
C:\Program Files\SIPLACE Explorer.
3

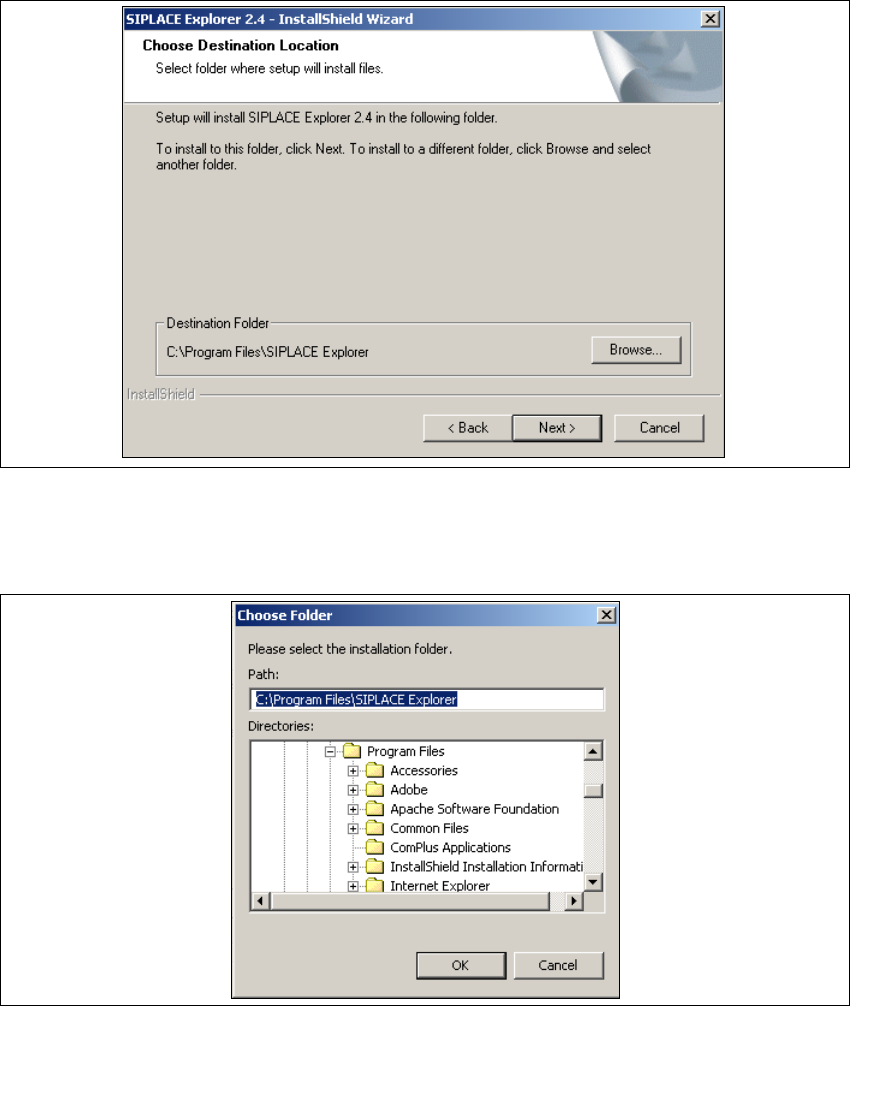

Fig. 3 - 8 SIPLACE Explorer setup - choose destination location
→ You can alter the default installation folder by using the Browse button.
→ The Choose Folder dialog box will open to locate the desired folder.
3
Fig. 3 - 9 SIPLACE Explorer Setup - 'choose folder' dialog box
→ Specify the required folder and click on OK, to confirm your choice. You will return to the
Choose Destination Location dialog box, where the folder will be shown.
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.1 Initial Installation of SIPLACE Explorer 2.4 Edition 08/2008 EN
32
→ To accept the destination folder, click on Next in the Choose Destination Location window.
→ The Select Features dialog box will open. Here you can select any of the following three
components: SIPLACE Explorer Runtime Environment, Factory Configuration Utility and
SIPLACE Explorer Development Environment.
3
Fig. 3 - 10 SIPLACE Explorer setup - 'select features' dialog box
WARNING
Do not install "SIPLACE Explorer V.2.4 Runtime Environment" and "SIPLACE Explorer V.2.4
Development Environment" on the same computer. These two options will not run parallel to
one another. Before working with these options in succession, make sure you know the steps
for starting/terminating the respective option and observe these. 3
→ Once you have selected the required installation option, click on the Next button to continue.
→ If the specified destination folder is empty, the Import Line Configuration dialog box will open.
