Installation and Configuration Guide SIPLAC E Explorer 3 Installing SIPLACE Explorer Edition 08/2008 EN 3.4 Tomcat Configuration 51 → The Add a Program dialog box will open: 3 Fig. 3 - 32 Add a program → S pecify the pat…
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.4 Tomcat Configuration Edition 08/2008 EN
50
3
Fig. 3 - 31 Windows firewall - exceptions
→ Click on the Add Program button.
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 08/2008 EN 3.4 Tomcat Configuration
51
→ The Add a Program dialog box will open:
3

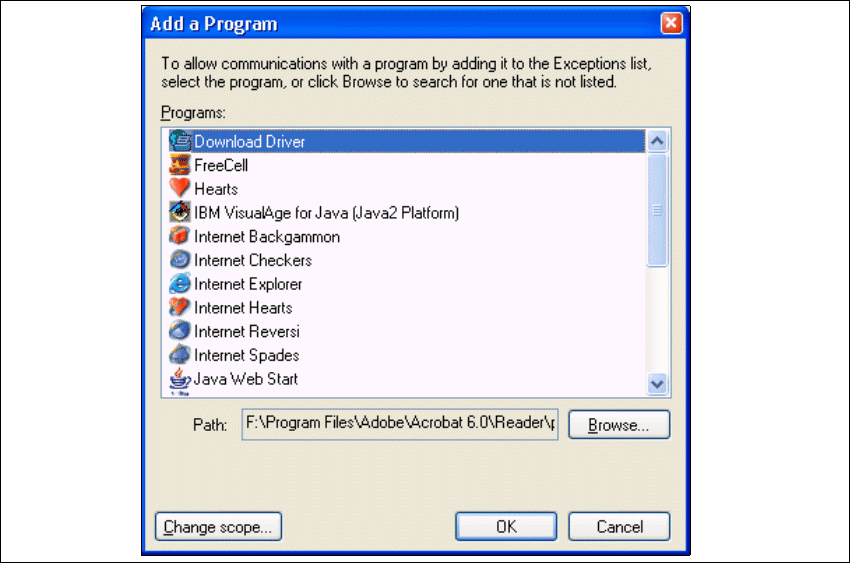

Fig. 3 - 32 Add a program
→ Specify the path in which the Tomcat.exe file is stored, by using the Browse button.
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.4 Tomcat Configuration Edition 08/2008 EN
52
3

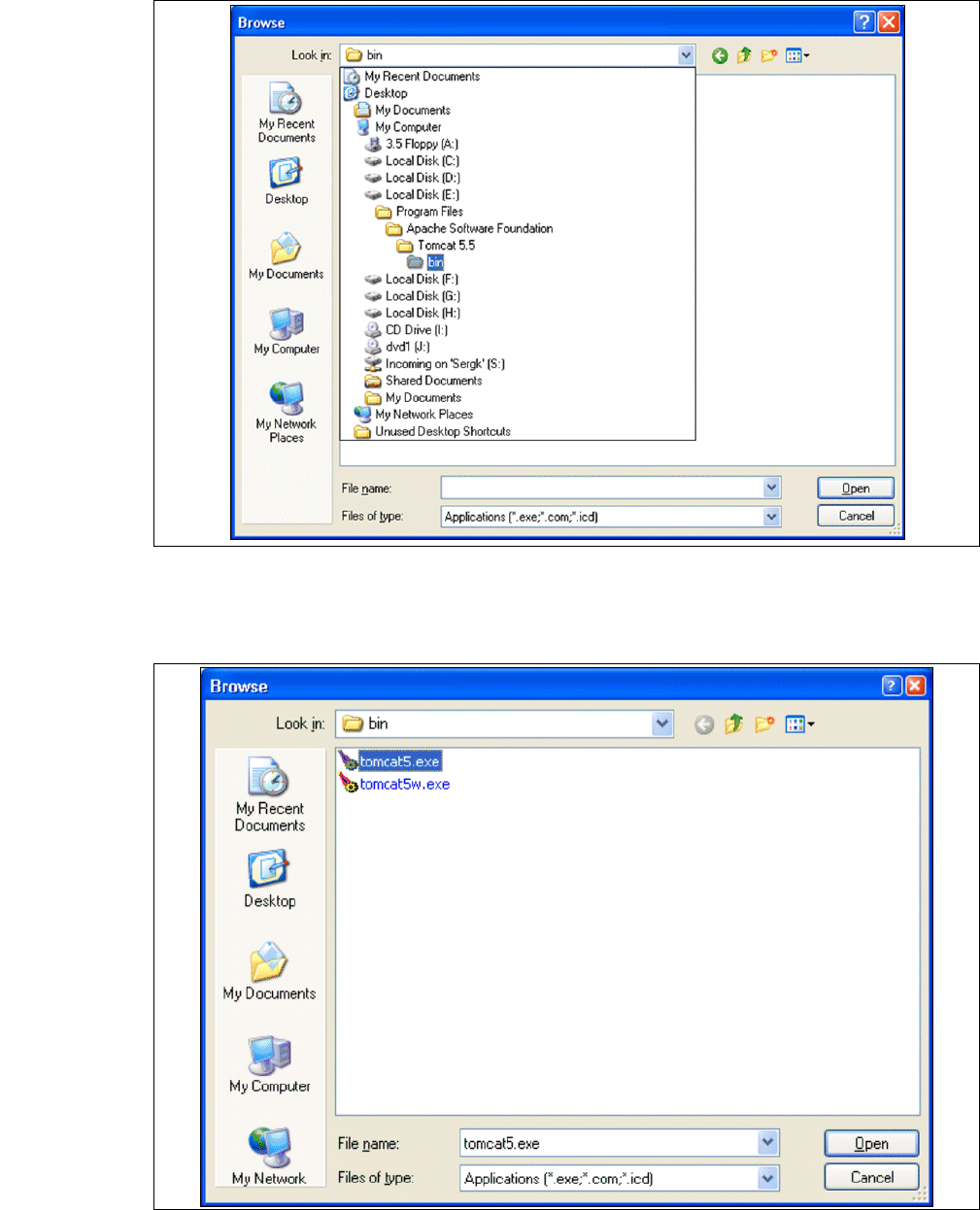

Fig. 3 - 33 Windows firewall - exceptions
→ In the Tomcat installation path, click on the ..\Tomcat 5.5\bin path and then on the Open
button.
3
Fig. 3 - 34 Windows firewall - exceptions
