Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 08/2008 EN 4.1 Standard Monitoring Application (SMA)
73
4.1.1.7 Step 6 - Modify Application Parameters
→ Parameters for the application you have created can be checked and edited here.
4

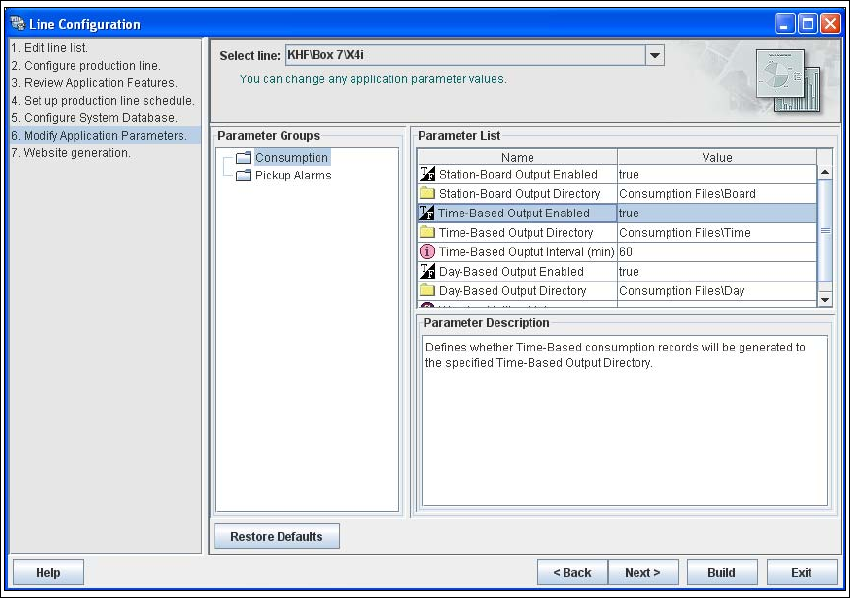

Fig. 4 - 21 Step 6: modify application parameters
→ Once you have made all modifications, click on Next to continue with the next step.
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 08/2008 EN
74
4.1.1.8 Step 7: Website Generation
→ In order to monitor your production line in the web browser, you will need to generate a website.
For this purpose, you require web server manager privileges (Tomcat administrator) and the
corresponding password.
4

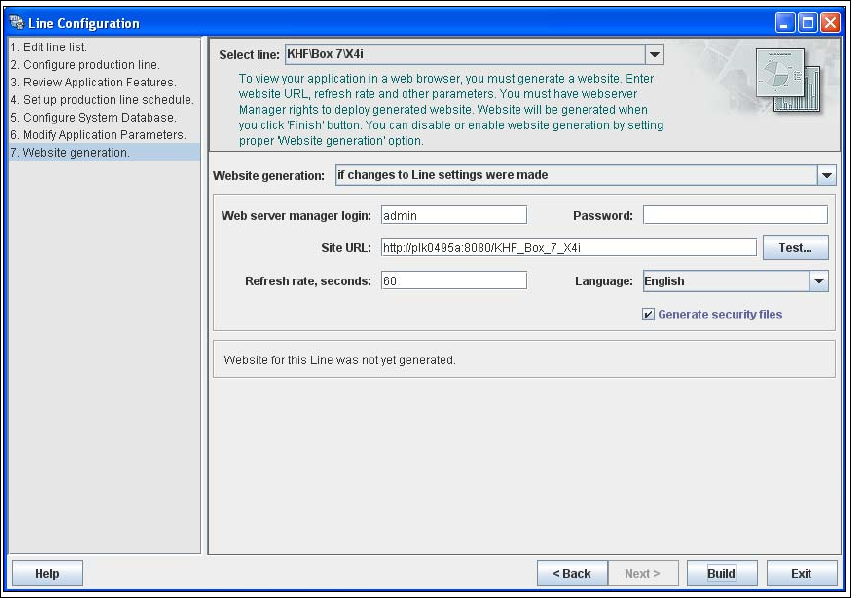

Fig. 4 - 22 Step 8: generating the website
→ At Website Generation, specify whether and when the website is to be generated. The
following options are available:
– Generate line website
The website will be generated for the selected line.
– If changes to line settings were made
A website will only be generated if changes have been made to the line configuration.
– Do not generate line website
Website generation will not be performed. This can be performed later, while editing the
generated application.
→ Specify the access data for the Tomcat administrator. If you entered admin and an empty
password during Tomcat configuration, this data will be automatically used as a default login.
If this is not the case, use the data you specified during Tomcat configuration.
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 08/2008 EN 4.1 Standard Monitoring Application (SMA)
75
→ Enter the following information here:
– the folder where the website will be generated to;
– the website URL;
This URL contains a port number, which applies to the web server (Tomcat 5.5) e.g. "8080".
If you change the port number here, you will also need to update the port number of the web
server see “Port Configuration after Changing Tomcat Port Number” on page 55.
– the refresh rate;
For capacity purposes, we recommend a refresh rate of at least one minute (60000 ms).
– website language
– specify whether the login page is to be generated
→ Once you have made and checked all entries, click on the Build button.
→ Dependent of the database size, you can compress the database. The Compress System
Database dialog box will open.
4

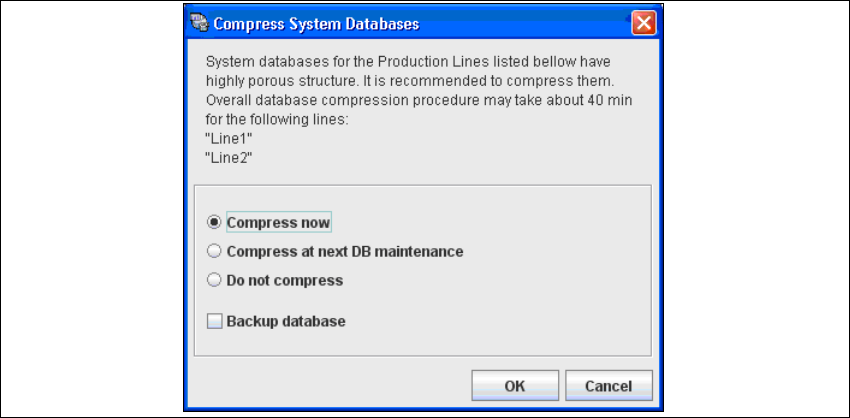

Fig. 4 - 23 Compress DB
→ If you want to compress the DB now, select the Compress now option. Confirm with OK.
