KLF-1309 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KLF-1309
24
22
31
31
33
33
28
30
30
30
30
11
12
9
17
19
17
19
18
22
7
7
5
23
10
20
27
27
27
27
4
20
23
10
24
24
6
14
8
1
25
29
26
2
2
26
21
21
32
15
15
29
16
13
3
3
1

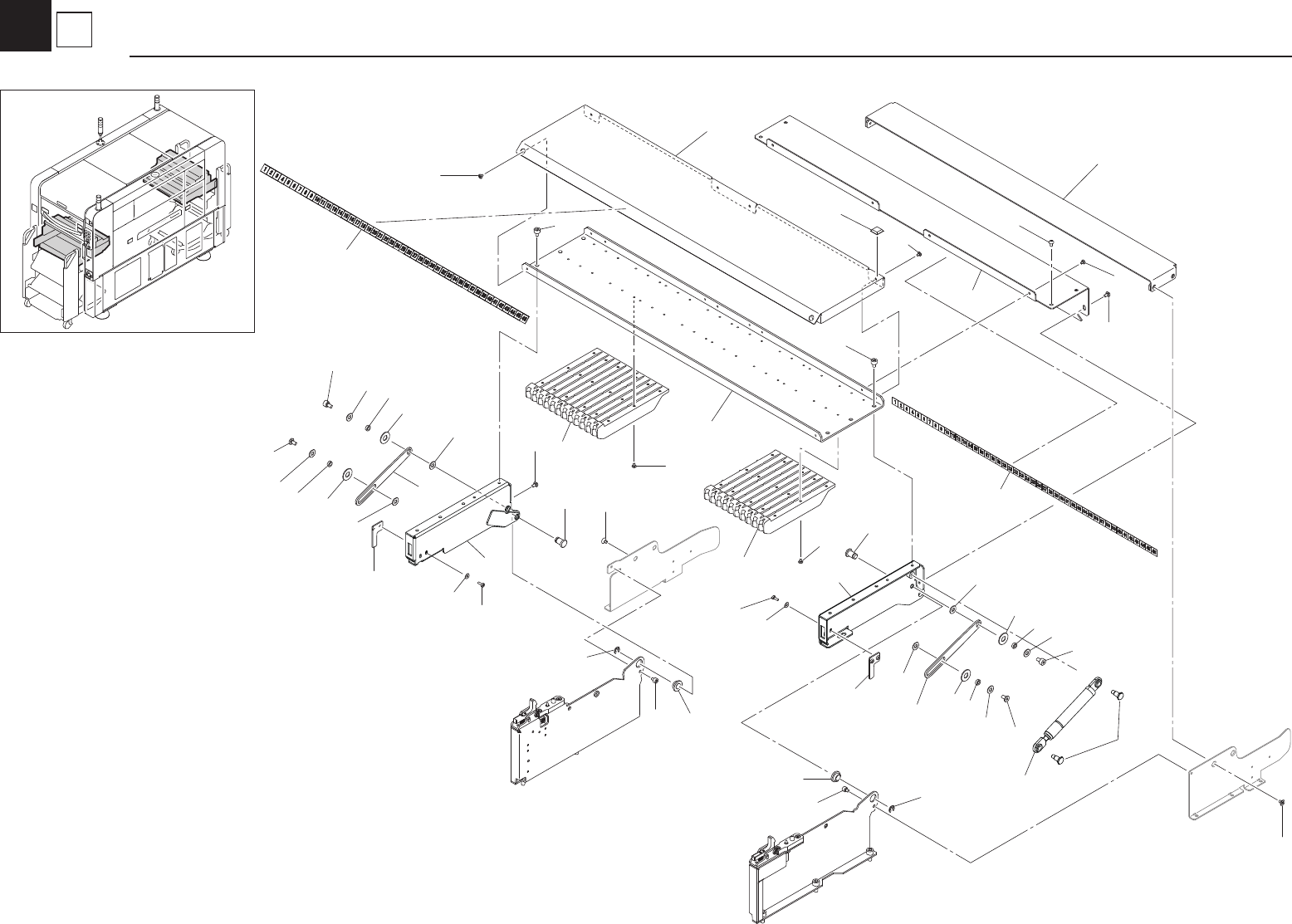

Bank FES46 Rail Guide
Feeder Holder
KLF-1309
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KLF-M3751-01 PLATE,FEEDER
1 /
Í
39
2
KLF-M3754-01
PLATE,FRONT
2
/
Í
40
3
KLF-M3755-00 PLATE,UPPER L
1 /
Í
41
4
KLF-M3755-50 PLATE,UPPER R
1 /
Í
42
5
KLF-M3756-01 COVER,ARM L
1 /
Í
43
6
KLF-M3756-51 COVER,ARM R
1 /
Í
44
7
KLF-M3757-00 SHAFT,GUIDE
2
/
Í
45
8
KLF-M375H-00 RAIL GUIDE 12P
1 /
46
9
KLF-M375N-00 GUIDE,FEEDER UNDER
1 /
Í
47
10
KLF-M375T-00 BLOCK,COVER
2 /
Í
48
11
KLF-M375X-00 GUIDE,FEEDER UNDER
3 /
49
12
KLF-M375X-50 GUIDE,FEEDER UNDER
1 /
50
13
KLF-M3761-01 PLATE,MAIN
1 /
Í
51
14
KLF-M3763-00 CAM FOLLOWER
1 /
Í
52
15
KLF-M3764-00 PIN
2 /
Í
53
16
KHY-M371R-00 RAIL GUIDE 12P
3 /
54
17
KHY-M372P-00 SUPPORT,LEVER
46 /
Í
55
18
KHY-M372R-00 GUIDE,FEEDER UNDER
3
/
Í
56
19
KHY-M372S-01 SPRING,SUPPORT
46
/
Í
57
20
90990-46J005 BOLT,THIN HEAD
6 58
21
91312-03012 BOLT,HEX.SOCKET HEAD
2
M3X12
59
22
91312-03018 BOLT HEX.SOCKET HEAD
10
M3X18
60
23
91312-03050 BOLT HEX.SOCKET HEAD
4
M3X50
61
24
91312-04008 BOLT HEX.SOCKET HEAD
6
M4X8
62
25
91312-05014 BOLT HEX.SOCKET HEAD
2
M5X14
63
26
91312-06014 BOLT HEX.SOCKET HEAD
10
M6X14
64
27
91312-06020 BOLT HEX.SOCKET HEAD
8
M6X20
65
28
95302-08700 NUT HEXAGON
1 66
29
98702-03006 SCREW FLAT HEAD
40 67
30
98902-03004 SCREW BINDING HEAD
101 68
31
99480-04012 PIN,PARALLEL
2 69
32
99480-06012 PIN,PARALLEL
2 70
33
99480-06020 PIN PARALLEL
4 71
34 72
35 73
36 74
37 75
38 76
3
1
Bank FES46 Rail Guide
Feeder Holder
KLF-1309
8
4
4
28
30
30
15
24
28
12
28
16
17
27
27
17
13
14
19
25
19
25
11
10
26
26
26
1
2
2
2
2
26
20
20
23
23
6
1
26
26
26
26
5
5
21
21
29
29
22
22
24
28
28
3
7
9
18
24
4
4
3
2
Cover FES46 Moveig Part
Feeder Holder
