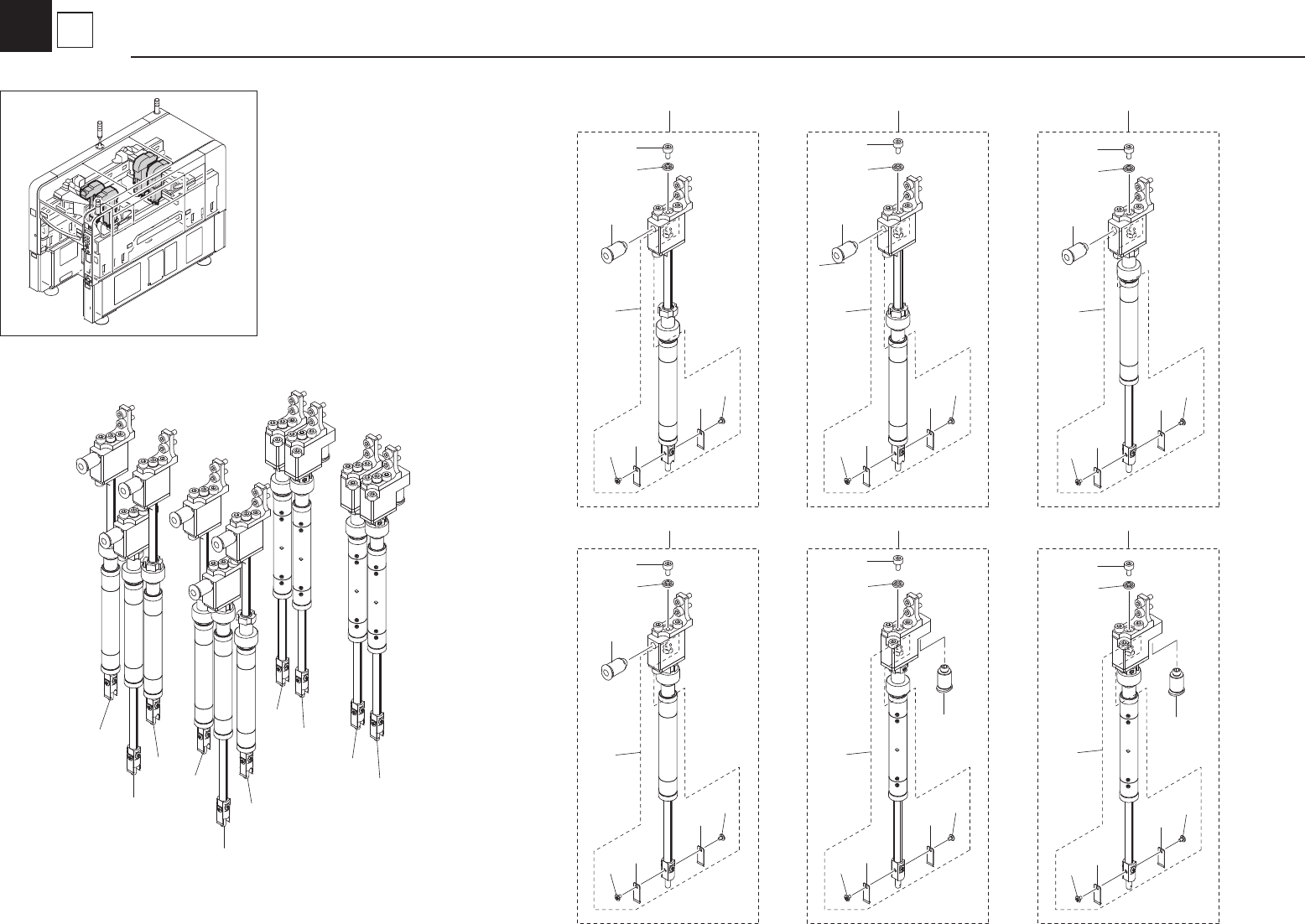

KLF-1309 1 9 13 1 1 12 9 10 10 2 3 4 5 6 9 13 1 1 12 9 10 10 9 13 1 1 12 9 10 10 9 13 1 1 12 9 10 10 2 5 6 5 6 2 1 1 4 3 9 13 1 1 12 13 9 10 10 9 1 1 12 9 10 10 7 7 7 8 8 8 8 5 2 Head Shaft Assy (MU) Head
KLF-1309
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KLF-M71K0-00 Z AXIS ASSY.1
2 B
Í
39
2
KLF-M71L0-00 Z AXIS ASSY.2
2
B
Í
40
3
KLF-M715A-A0 VALVE,ASSY.
1 B
Í
41
4
KLF-M7150-B0 VALVE,PRESS.
1 B
Í
42
5
KLF-M7109-00 BASE,VALVE
1 /
Í
43
6
KLF-M71C1-00 COVER,CABLE
1 /
Í
44
7
KLF-M71C4-00 BRACKET,CONNECTOR
1 /
Í
45
8
KLF-M71C8-00 BRACKET,COVER
1 /
Í
46
9
KLF-M71C9-01 COVER,HEAD
1
/
47
10
KLF-M71CD-00
CLAMP,HARNESS
2 /
Í
48
11
KLF-M71Y0-00 LABEL,HEAD SERIAL
2 /
Í
49
12
KLF-M7152-00 VALVE, SPARE
1
Spare
B
Í
50
13
KLF-M7153-00 VALVE
1
Spare
B
51
14
KLF-M7154-00 JOINT
1
Spare
/
Í
52
15
90990-01J058 BOLT,HEX.SOCKET HEAD
6 53
16
90990-46J007 BOLT,THIN HEAD
4 54
17
97602-04306 SCREW,BIN.HEAD W/W.
4 55
18
98902-03004 SCREW BINDING HEAD
6
56
19
91312-04005 BOLT HEX.SOCKET HEAD
8
M4X5
57
20
91312-04012 BOLT,HEX.SOCKET HEAD
8
M4X12
58
21
91312-04016 BOLT,HEX.SOCKET HEAD
4
M4X16
59
22
91312-04025 BOLT HEX.SOCKET HEAD
4
M4X25
60
23
91312-04045 BOLT HEX.SOCKET HEAD
16
M4X45
61
24
91312-05012 BOLT HEX.SOCKET HEAD
8
M5X12
62
25
$NK-4N NYLON CLIP
4 63
26
KLF-M712A-00 TUBE(TUS0425N)
6 /
Í
64
27
KLF-M712B-00 TUBE(TUS0425N)
4 /
Í
65
28
KLF-M712C-00 TUBE(TUS0425N)
10 /
Í
66
29
KLF-M712D-00 TUBE(TUS0425N)
4 /
Í
67
30
$UB0850-R URETHANE TUBE
2
(200mm)
/
Í
68
31
KLF-M7153-10 VALVE
1
Spare
B
Í
69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
5
1
Head (MU)
Head
KLF-1309
1
9
13
11
12
9
10
10
2 3
4 5 6
9
13
11
12
9
10
10
9
13
11
12
9
10
10
9
13
11
12
9
10
10
2
5
6
5
6
2
1
1
4
3
9
13
11
12
13
9
10
10
9
11
12
9
10
10
7
7
7
8
8
8
8
5
2
Head Shaft Assy (MU)
Head
KLF-1309
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KLF-M7106-A0 HEAD SHAFT 1 ASSY. 2 /
Í
39
2
KLF-M7106-B0 HEAD SHAFT 1 ASSY.
2
/
Í
40
3
KLF-M7106-C0 HEAD SHAFT 1 ASSY. 1 /
Í
41
4
KLF-M7106-D0 HEAD SHAFT 1 ASSY. 1 /
Í
42
5
KLF-M7107-A0 HEAD SHAFT 2 ASSY. 2 /
Í
43
6
KLF-M7107-B0 HEAD SHAFT 2 ASSY. 2 /
Í
44
7
KLF-M711S-A0 SHAFT 1,SPARE 1 Spare /
Í
45
8
KLF-M712S-A0 SHAFT 2,SPARE 1 Spare /
Í
46
9
KG7-M7137-A0 LEAF SPRING 20 A
47
10
90990-08J016
SCREW,PAN HEAD 20
48
11
91317-03005 BOLT HEX.SOCKET HEAD 10 M3X5
49
12
90990-36J007 WASHER,SEAL 10
50
13
$TSH4-M5M JOINT 4 /
Í
51
14 52
15 53
16 54
17 55
18
56
19
57
20
58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
5
2
Head Shaft Assy (MU)
Head
