KLF-1309 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…

100%1 / 83
KLF-1309
27
26
31
6
8
8
33
32
4
19
21
5
4
5
21
29
7
20
20
6
30
29
15
3
11
18
9
10
18
22
17
14
13
2
12
12
15
19
16
28
28
28
24
23
27
26
34
1
25
23
16
35
36
37
35
38
36
37
38
5
3

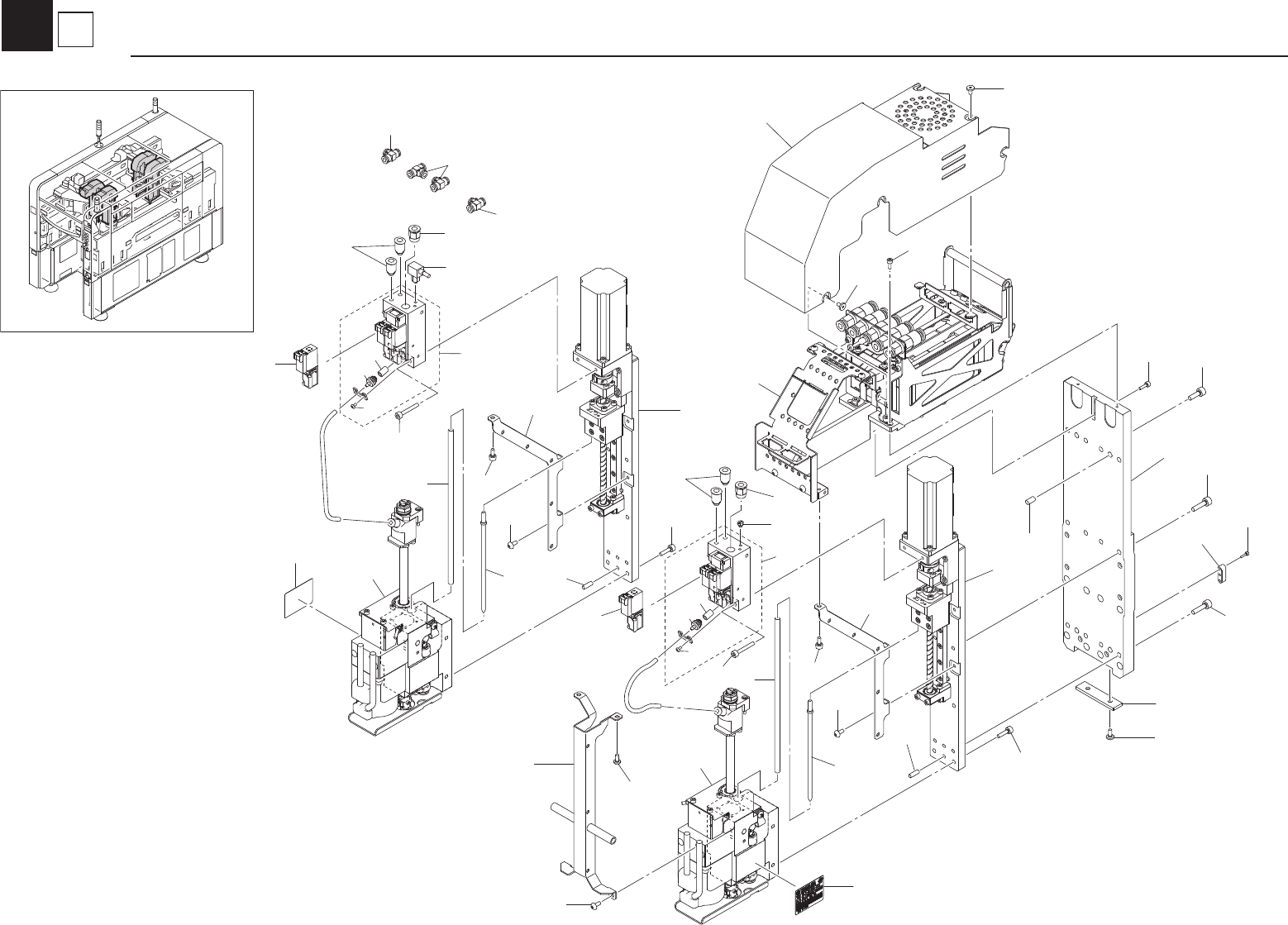

Head (FL)
Head
KLF-1309
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KLF-M7411-00 PLATE,BASE
1
/
Í
39
2
KLF-M741P-00 COVER,HEAD
1
/
Í
40
3
KLF-M741R-00 BLOCK,HEAD
1
/
Í
41
4
KLF-M742C-00 SPRING,RETURN
2
/
Í
42
5
KLF-M742K-00 GUIDE, SPRING
2
/
Í
43
6
KLF-M742R-00 BRKT.,CABLE
2
/
Í
44
7
KLF-M74C1-00 COVER,CABLE
1
/
Í
45
8
KLF-M74Y0-00 LABEL,HEAD SERIAL
2
/
Í
46
9
KLF-M7143-00 KEY PARALLEL
2
/
Í
47
10
90112-02J008 BOLT HEX.SOCKET HEAD
4 48
11
90990-01J038 BOLT,HEX.SOCKET HEAD
2 49
12
90990-01J058 BOLT,HEX.SOCKET HEAD
8 50
13
91312-03008 BOLT HEX.SOCKET HEAD
2
M3X8
51
14
91312-03010 BOLT HEX.SOCKET HEAD
2
M3X10
52
15
91312-04014 BOLT HEX.SOCKET HEAD
4
M4X14
53
16
91312-04025 BOLT HEX.SOCKET HEAD
4
M4X25
54
17
91312-05014 BOLT HEX.SOCKET HEAD
4
M5X14
55
18
91312-05018 BOLT HEX.SOCKET HEAD
8
M5X18
56
19
91317-04008 BOLT HEX.SOCKET HEAD
2
M4X8
57
20
92012-04008 BOLT,BUTTON HEAD
4
M4X8
58
21
92017-04008 BOLT,BUTTON HEAD
4
M4X8
59
22
99480-05010 PIN,PARALLEL
4 60
23
KLF-M7451-A0 VALVE,ASSY.
2
B
Í
61
24
KLF-M654C-00 SENSOR PRESS. ASSY
1
B
Í
62
25
$PF-M3 PLUG
1
/
Í
63
26
$TS6-01M JOINT
2
/
Í
64
27
$TSH6-M5M JOINT
4
/
Í
65
28
$UT6M JOINT
4
/
Í
66
29
99480-04012 PIN,PARALLEL
2 67
30
KLF-M74S0-00 Z1 AXIS ASSY.
1
/
Í
68
31
KLF-M74S0-10 Z2 AXIS ASSY.
1
/
Í
69
32
KLF-M74R0-00 R1 AXIS ASSY.
1
/
Í
70
33
KLF-M74R0-10 R2 AXIS ASSY.
1
/
Í
71
34
KLF-M74C0-00 SERVO I/O BOX ASSY.
1
/
Í
72
35
KLF-M7153-00 VALVE
6
Spare B
73
36
KLF-M7156-00 FILTER
2
Spare E
74
37
90166-02JA04 SCREW PAN HEAD
4
Spare /
75
38
KLF-M7155-00 FILTER JOINT
2
Spare /
76
5
3
Head (FL)
Head
KLF-1309
28
23
27
26
1
7
37
36
36
36
34
34
33
31
35
32
32 31
35
30
33
38
38
36
36
8
3
21
24
10
11
2
9
14
17
12
18
16
16
15
13
6
19
25
20
22
5
29
4
7
7
39
5
4
Nozzle Holder (FL)
Head
