3.6.2.2 Inserting the motor protection trip block
Check the type of motor protection trip block before you insert it. The type depends on the op-
erating voltage.
Check the overcurrent and short-circuit current trip threshold settings.

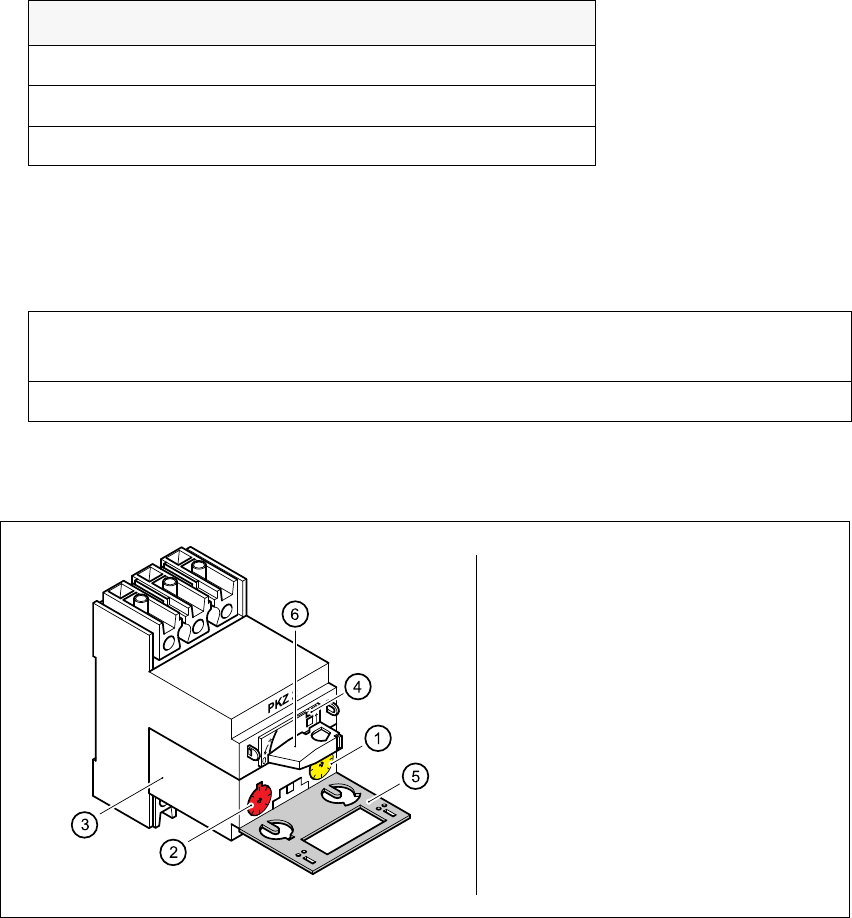

Fig. 3 - 19 Checking the overcurrent and short-circuit current trip thresholds
Insert the motor protection trip block (3).
Push the yellow locking tab (4) down.
Close the gray protective flap (5).
Turn the rotary switch (6) clockwise as far as the stop.
Main power voltages Type
3x380 VAC ± 5% ZM-16-PKZ2
3x400 VAC ± 5% ZM-16-PKZ2
3x415 VAC ± 5% ZM-16-PKZ2
Tab. 3 - 4 Motor protection trip block for 3x380 VAC, 3x400 VAC, 3x415 VAC
Motor protection trip
block
Yellow dial (1) for setting the
overcurrent trip threshold
Red dial (2) for setting the short-
circuit current trip threshold
ZM-16-PKZ2 10 A 190 A
Tab. 3 - 5 Overcurrent and short-circuit current trip thresholds
Check the overcurrent trip
threshold (yellow dial (1))
Check the short-circuit cur-
rent trip threshold
(red dial (2))
3 Converting the power supply on HF machines Assembly Instructions, Converting the Power Supply
3.6 Converting the power supply from 3 x 208 VAC to 3 x 400 VAC 12/2013 Edition
172

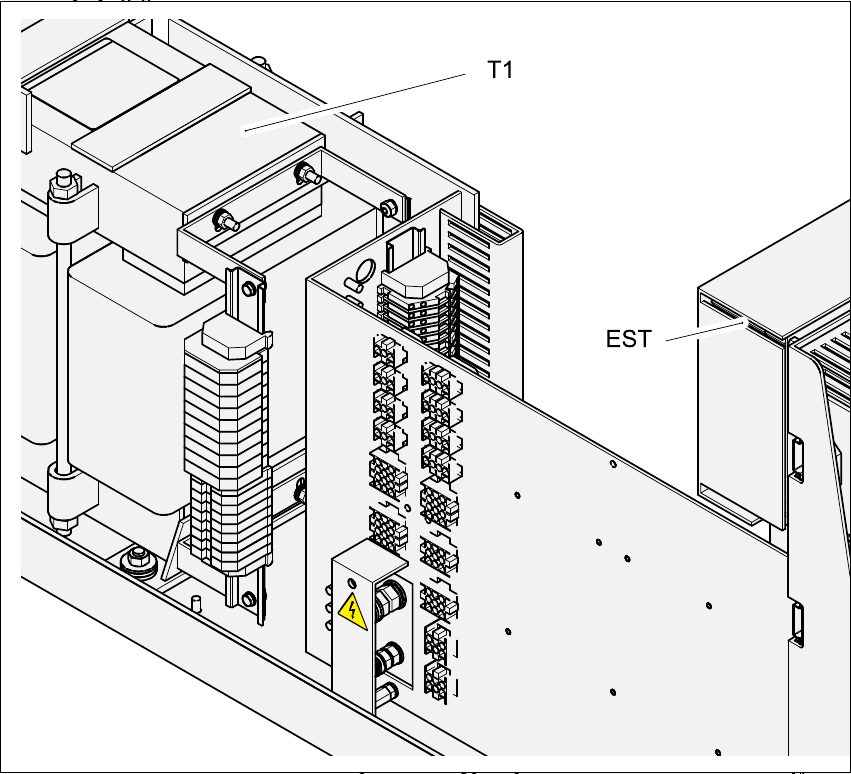

3.6.3 Overview of the parts - power supply unit - side view
Fig. 3 - 20 Overview of the parts - power supply unit - side view
EST Inrush current limiter board BRW3TT13084-01
T1 Three-phase transformer
Assembly Instructions, Converting the Power Supply 3 Converting the power supply on HF machines
12/2013 Edition 3.6 Converting the power supply from 3 x 208 VAC to 3 x 400 VAC
173

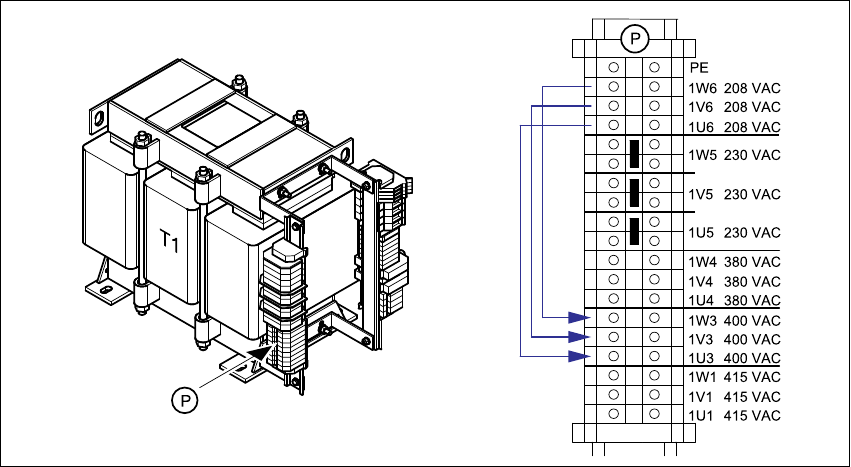

3.6.4 Converting the three-phase transformer T1 from 3 x 208 VAC to 3 x 400 VAC
Connect the cable from
terminal 1W6 to terminal 1W3
terminal 1V6 to terminal 1V3 and
terminal 1U6 to terminal 1U3.
Fig. 3 - 21 Primary terminals for transformer T1
