Assembly Instructions, Converting the Power Supp ly 8 Converting the power supply on the HS- XX / Di machine using PKE32/XTU-32 12/2013 Edition 8.5 Converting the power supply from 3 x 400 VAC to 3 x 208 VAC 263 8.5.4 Re…
8 Converting the power supply on the HS-XX / Di machine using PKE32/XTU-32 Assembly Instructions, Converting the Power Supply
8.5 Converting the power supply from 3 x 400 VAC to 3 x 208 VAC 12/2013 Edition
262
8
Fig. 8 - 3 PKE32/XTU-32 front side view
8.5.3 Securing the socket with earthing contact using the socket guard
Insert the Teddy socket guard, series 6310, white (item no.: 00357871-01) into the socket
guard with earthing contact.
8
Socket with socket guard
Assembly Instructions, Converting the Power Supply 8 Converting the power supply on the HS-XX / Di machine using PKE32/XTU-32
12/2013 Edition 8.5 Converting the power supply from 3 x 400 VAC to 3 x 208 VAC
263
8.5.4 Replacing the main power cable
CAUTION
The electrical cables to each individual placement machine must be clearly identified and easy to
allocate without doubt. The regulations of the country in which the machine is operated apply.
The main power cable is connected to the U, V, W, N and PE terminals on terminal strip X1 (see
item X1 in Fig 8 - 2
, page 260).
Detach the wires of the main power cable from the U, V, W, N and PE terminals.
Detach the cable clamp from the cable holder.
Pull the cable out of the cable holder.
Push the main power cable (6 mm²) through the cable holder as far as the terminals on X1.
PLEASE NOTE: 8
Make sure that the cable bending radius is sufficient to prevent the wires being bent. 8
Connect the main power cable to the terminals on X1:
Wire 1 to U on X1,
Wire 2 to V on X1,
Wire 3 to W on X1,
Wire 4 to N on X1 and
Wire YEGN to PE on X1.
(See circuit diagram 00119801-010102LD4, sheet 1, page 275
)
Tighten the cable clamp.
8 Converting the power supply on the HS-XX / Di machine using PKE32/XTU-32 Assembly Instructions, Converting the Power Supply
8.5 Converting the power supply from 3 x 400 VAC to 3 x 208 VAC 12/2013 Edition
264

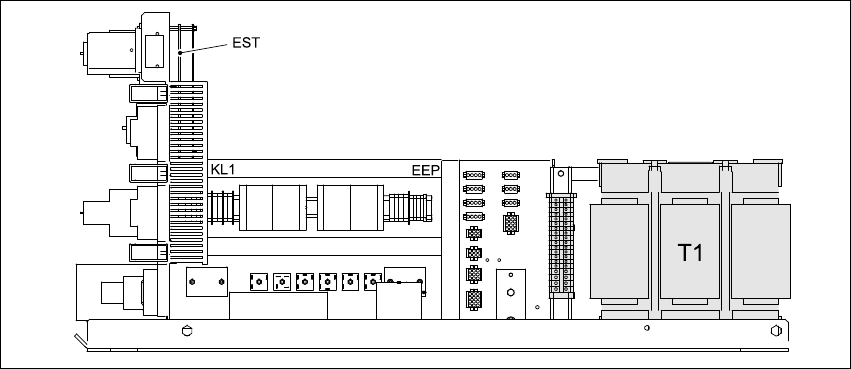

8.5.5 Overview of the parts - power supply unit - side view
Fig. 8 - 4 Overview of the parts - power supply unit - side view
EST Inrush current limiter board TG 31033-01
T1 Three-phase transformer
