8 Converting the power supply on the HS-XX / Di machine using PKE32/XTU-32 Assembly Instructions, Converting the Power Supply 8.5 Converting the power supply from 3 x 400 VAC to 3 x 208 VAC 12/2013 Edition 266 ) Fig. 8 -…

Assembly Instructions, Converting the Power Supply 8 Converting the power supply on the HS-XX / Di machine using PKE32/XTU-32

12/2013 Edition 8.5 Converting the power supply from 3 x 400 VAC to 3 x 208 VAC

265

8.5.6 Converting the three-phase transformer T1 from 3 x 400 VAC to 3 x 208 VAC

 Reconnect the cables on the primary terminals:

from terminal 1W3 to terminal 1W6

from terminal 1V3 to terminal 1V6

from terminal 1U3 to terminal 1U6

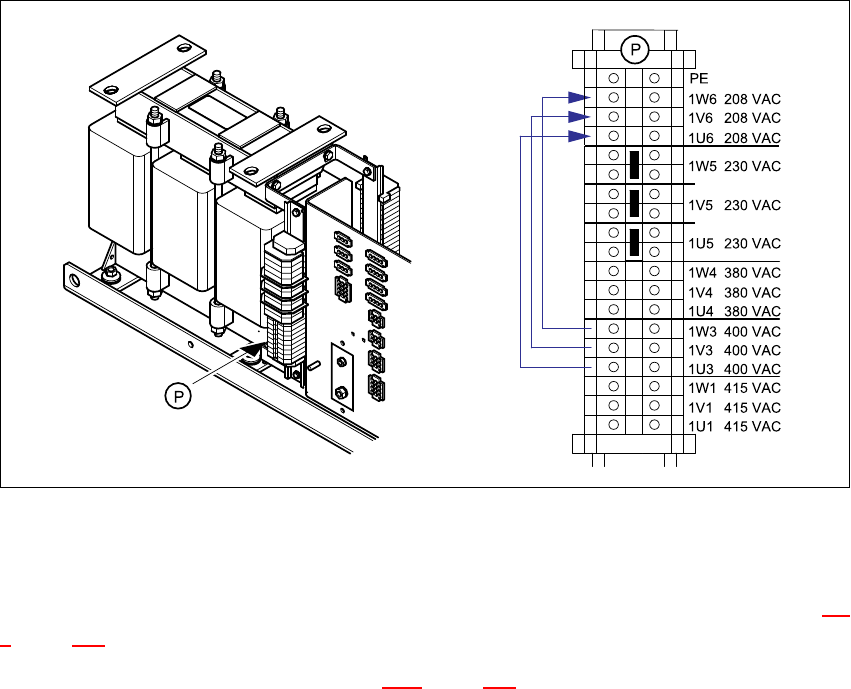

Fig. 8 - 5 Primary terminals for transformer T1

8.5.7 Reconnecting the inrush current limiter board

The inrush current limiter board is located on the back of the front panel (see item EST in Fig. 8 -

4, page 264.

 Reconnect the following wires (see Fig. 8 - 6, page 266):

(W) from terminal X13 to terminal X14,

(V) from terminal X23 to terminal X24 and

(U) from terminal X33 to terminal X34.

 Move the following jumpers:

B3 from terminal X12 to terminal X13

B2 from terminal X22 to terminal X23 and

B1 from terminal X32 to terminal X33.

8 Converting the power supply on the HS-XX / Di machine using PKE32/XTU-32 Assembly Instructions, Converting the Power Supply

8.5 Converting the power supply from 3 x 400 VAC to 3 x 208 VAC 12/2013 Edition

266

)

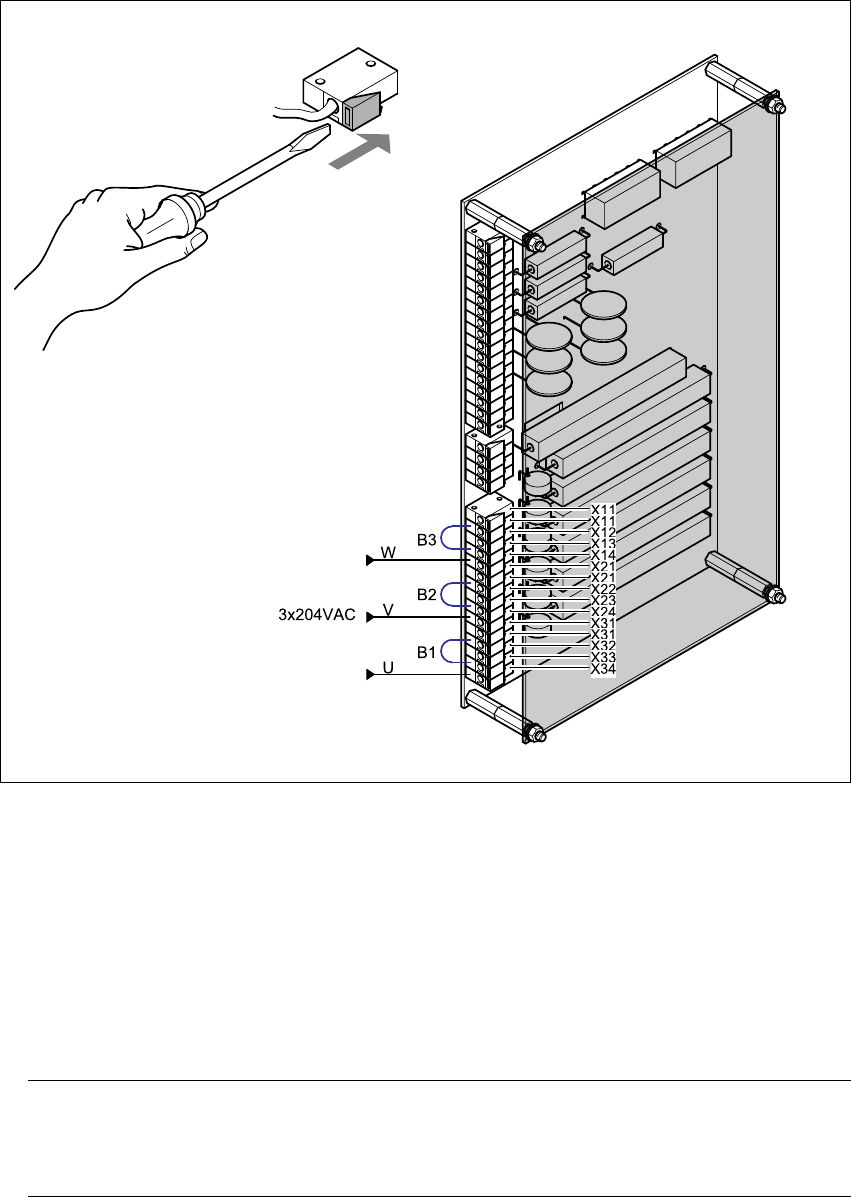

Fig. 8 - 6 Reconnecting the EST inrush current limiter board

8.5.8 Installing the power supply unit

 Carefully push the power supply unit into the housing until it reaches the stop.

 Use the M8 hexagon socket-head screw to secure the unit at the bottom.

 Check that the yellow-green PEwire is connected to the door.

 Close the door.

PLEASE NOTE: 8

Make sure that the actuating shaft of the main switch slides easily into the opening in the ro-

tary button. 8

 Use the machine key to lock the door.

Assembly Instructions, Converting the Power Supply 8 Converting the power supply on the HS-XX / Di machine using PKE32/XTU-32

12/2013 Edition 8.6 Converting the power supply from 3 x 208 VAC to 3 x 400 VAC

267

8.5.9 Carry out the safety check to DIN EN 60 204

 When the conversion is complete, carry out a safety check to DIN EN 60 204.

 Follow the procedure described in section 2, page 146 onwards.

8.6 Converting the power supply from 3 x 208 VAC to 3 x 400 VAC

RISK OF DEATH 8

 Disconnect the machine correctly as described in section 1, page 145.

 Disconnect the machine from the main power supply.

 Take suitable action to ensure that the machine cannot be connected to the power supply dur-

ing the conversion work.

 Put up warning signs to indicate that work is being carried out on the electrical system.
