8 Converting the power supply on the HS-XX / Di machine using PKE32/XTU-32 Assembly Instructions, Converting the Power Supply 8.6 Converting the power supply from 3 x 208 VAC to 3 x 400 VAC 12/2013 Edition 272 8.6.4 Over…
Assembly Instructions, Converting the Power Supply 8 Converting the power supply on the HS-XX / Di machine using PKE32/XTU-32
12/2013 Edition 8.6 Converting the power supply from 3 x 208 VAC to 3 x 400 VAC
271
8.6.3 Removing the socket guard from the socket with earthing contact
Remove the Teddy socket guard, series 6310, from the socket with earthing contact using the
corresponding key.
8
8
Socket guard
with key
Socket
8 Converting the power supply on the HS-XX / Di machine using PKE32/XTU-32 Assembly Instructions, Converting the Power Supply
8.6 Converting the power supply from 3 x 208 VAC to 3 x 400 VAC 12/2013 Edition
272
8.6.4 Overview of the parts - power supply unit - side view
Fig. 8 - 10 Overview of the parts - power supply unit - side view
EST Inrush current limiter board TG 31033-01
T1 Three-phase transformer
8.6.5 Converting the three-phase transformer T1 from 3 x 208 VAC to 3 x 400 VAC
Connect the cable from
terminal 1W6 to terminal 1W3
terminal 1V6 to terminal 1V3 and
terminal 1U6 to terminal 1U3.
Fig. 8 - 11 Primary terminals for transformer T1
Assembly Instructions, Converting the Power Supply 8 Converting the power supply on the HS-XX / Di machine using PKE32/XTU-32
12/2013 Edition 8.6 Converting the power supply from 3 x 208 VAC to 3 x 400 VAC
273
8.6.6 Reconnecting the inrush current limiter board
The inrush current limiter board is located on the back of the front panel (see item EST in Fig. 8 -
10, page 272.
Move the following jumpers (see Fig. 8 - 12):
B3 from terminal X13 to terminal X12,
B2 from terminal X23 to terminal X22 and
B1 from terminal X33 to terminal X32.
Reconnect the following wires:
(W) from terminal X14 to terminal X13,
(V) from terminal X24 to terminal X23 and
(U) from terminal X34 to terminal X33.
)
:

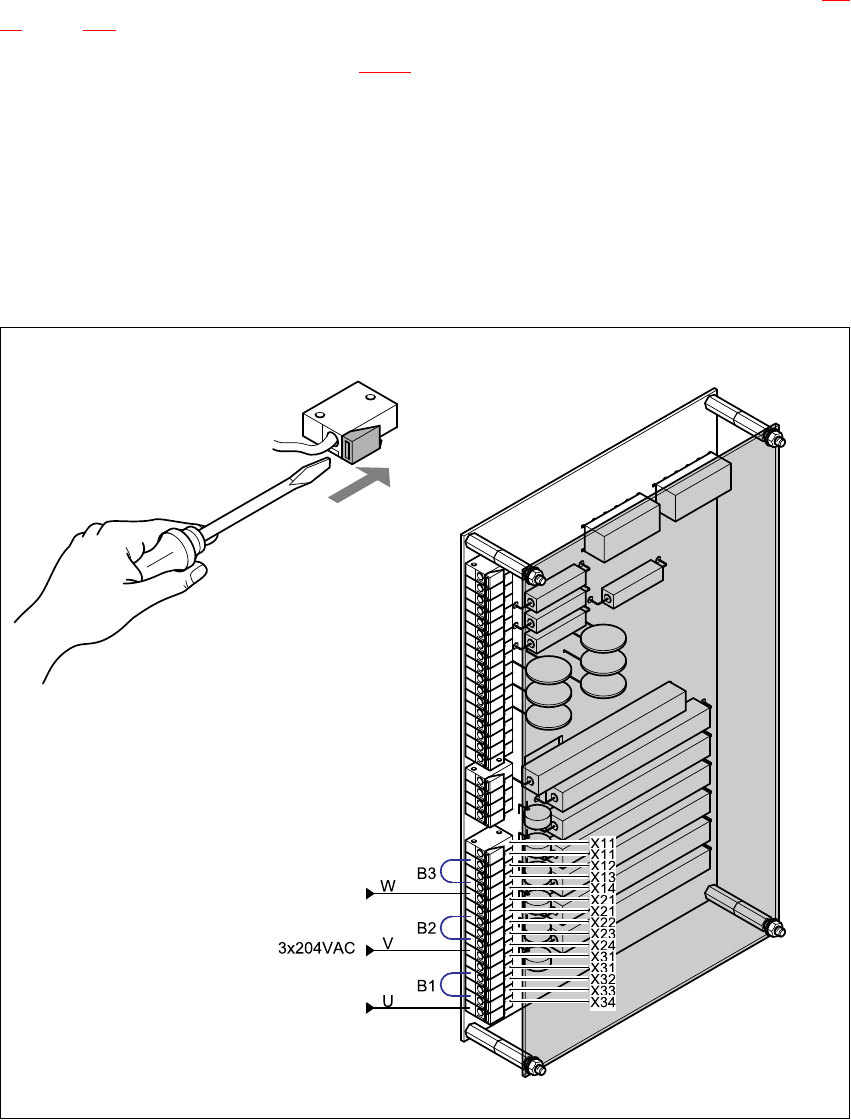

Fig. 8 - 12 Reconnecting the inrush current limiter board
