User manual SIPLAC E X-Series 3 Technical data Software Vers ion SR.601.xx 11/ 2005 US Ed ition 3.4 Dimensions and weight of the placement machine 105 3.4.5 Machine foot clearances 3 Fig. 3.4 - 5 Machine foot c learances…
3 Technical data User manual SIPLACE X-Series
3.4 Dimensions and weight of the placement machine Software Version SR.601.xx 11/2005 US Edition
104
3.4.4 Height of the folded up protective cover
3

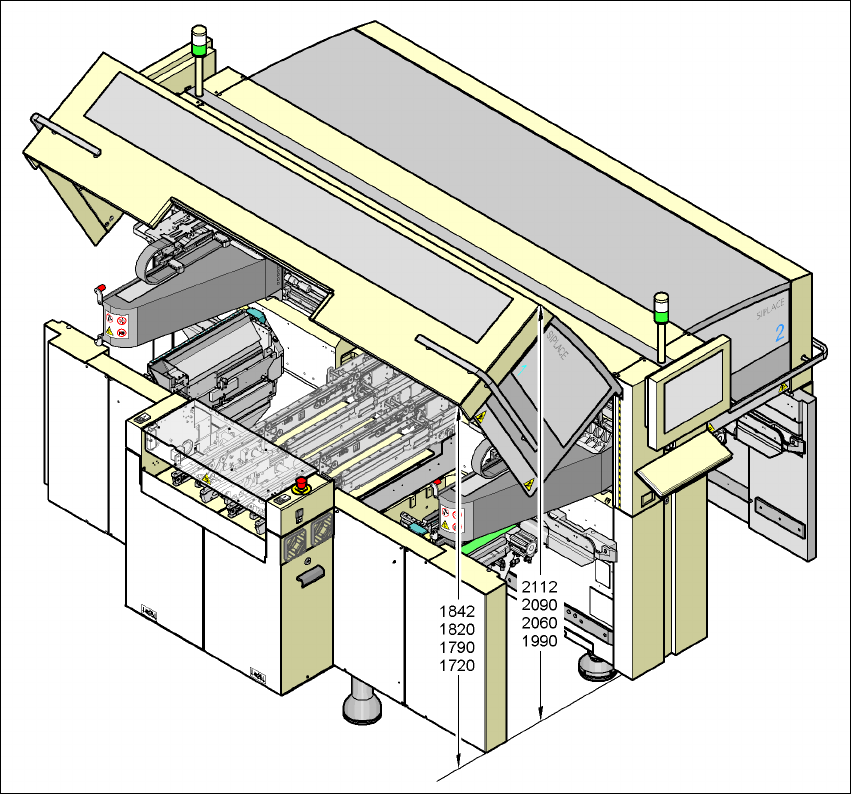

Fig. 3.4 - 4 Height of the folded-up protective cover - dimensions in millimeters
User manual SIPLACE X-Series 3 Technical data
Software Version SR.601.xx 11/2005 US Edition 3.4 Dimensions and weight of the placement machine
105
3.4.5 Machine foot clearances
3

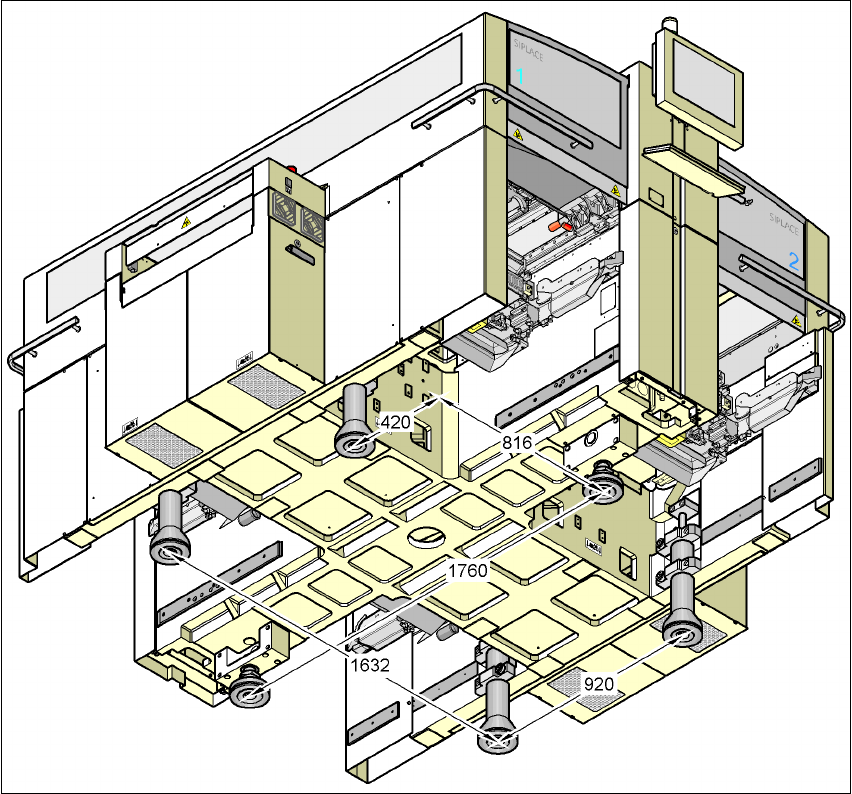

Fig. 3.4 - 5 Machine foot clearances in millimeters
3 Technical data User manual SIPLACE X-Series
3.4 Dimensions and weight of the placement machine Software Version SR.601.xx 11/2005 US Edition
106
3.4.6 Technical data - dimensions, weight of the placement machines
* The load per unit area calculation included an additional working space of 0.5 m on each side of the
machine.
Length
With both extension kits 2380 mm
With one extension kit 2103 mm
With no extension kits 1826 mm
Width of basic machine
X4 with component trolley docked in (locations 1 + 4)
X4 with component trolley docked in (locations 2 + 3)
X3 with component trolley docked in (locations 1 + 4)
X3 with component trolley docked in (locations 2 + 3)
X2 with component trolley docked in (locations 1 + 4)
X2 with component trolley docked in (locations 2 + 3)
Incl. monitors
With keyboards
2815 mm
2815 mm
2815 mm
2395 mm
2395 mm
2395 mm
2766 mm
2804 mm
Height of the machine
With warning lamp
With folded-up protective covers
Up to 1863 mm
1990 mm (PCB conveyor height: 830 mm)
2060 mm (PCB conveyor height: 900 mm)
2090 mm (PCB conveyor height: 930 mm)
2112 mm (PCB conveyor height: 950 mm)
Machine ground clearance 120 mm (PCB conveyor height: 830 mm)
190 mm (PCB conveyor height: 900 mm)
220 mm (PCB conveyor height: 930 mm)
240 mm (PCB conveyor height: 950 mm)
Weight
X4 (machine with component changeover table)
X4 (full configuration with feeder modules)
X3 (machine with component changeover table)
X3 (full configuration with feeder modules)
X2 (machine with component changeover table)
X2 (full configuration with feeder modules)
3880 kg
4255 kg
3790 kg
4171 kg
3705 kg
4086 kg
Footprint
X4, X3 and X2 6.70 m²
Load per unit area *)
X4
X3
X2
5.98 kN/m²
5.84 kN/m²
6.20 kN/m²
Number of machine feet 6
