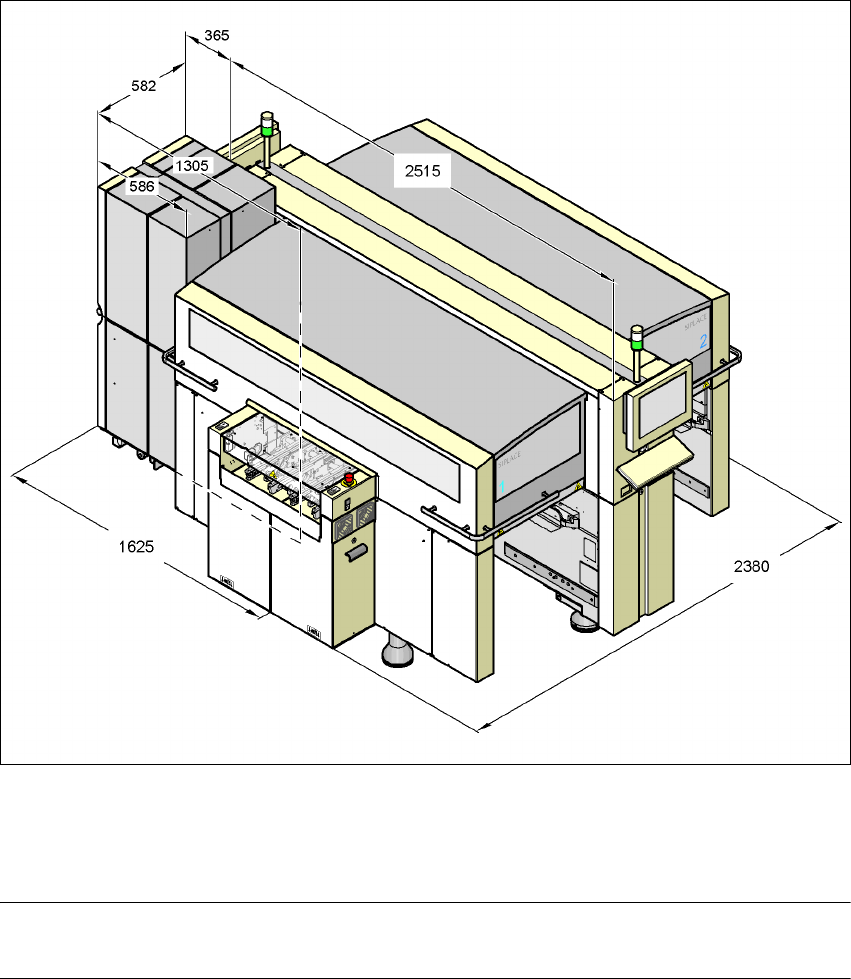

3.4.11 Dimensions of the X3 placement system with matrix tray changer
3
3
3
3
Fig. 3.4 - 10 Dimensions of the X3 placement system with matrix tray changer in millimeters
3
PLEASE NOTE 3
The matrix tray changer can only be docked in at location 2.
3 Technical data User manual SIPLACE X-Series
3.4 Dimensions and weight of the placement machine Software Version SR.601.xx 11/2005 US Edition
112

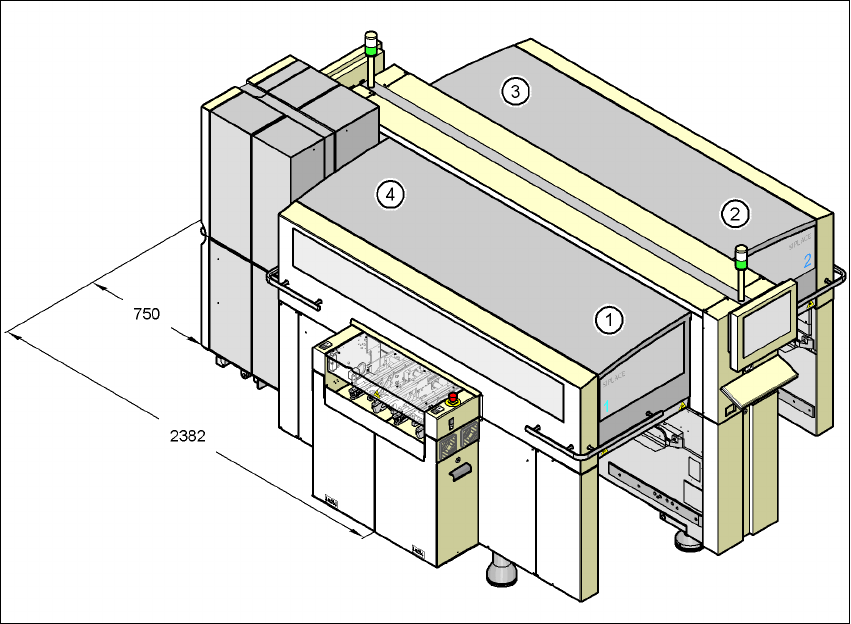

3.4.12 Dimensions of the X2 placement system with matrix tray changer
3
3
3
3
Fig. 3.4 - 11 Dimensions of the X2 placement system with matrix tray changer in millimeters
3
PLEASE NOTE 3
A matrix tray changer may be docked in at locations 2 and 4 in place of a component trolley.
User manual SIPLACE X-Series 3 Technical data
Software Version SR.601.xx 11/2005 US Edition 3.4 Dimensions and weight of the placement machine
113
3.4.13 Maneuvering distance for the matrix tray changer
3
3
3
3
Fig. 3.4 - 12 Maneuvering distance for the MTC
1, 2, 3, 4 Locations no. 1, 2, 3, 4
X2 machine: Locations 2 and 4
X3 machine: Location 2 only
3
