3.8 Electrical and pneumatic connection points
3.8.1 Electrical connection points
3

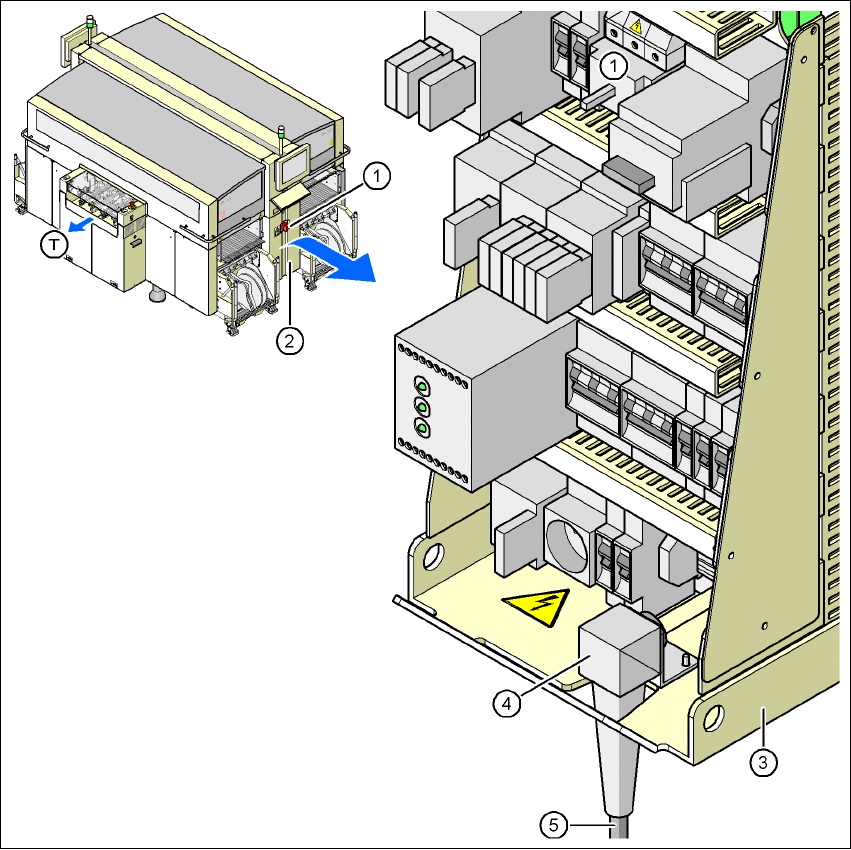

Fig. 3.8 - 1 Electrical connection points on the placement machine
(1) Main power switch
(2) Cover over the power supply unit
(3) Power supply unit
(4) Angle for the cable gland
(5) Power cable
(T) Direction of PCB transport
User manual SIPLACE X-Series 3 Technical data
Software Version SR.601.xx 11/2005 US Edition 3.8 Electrical and pneumatic connection points
143
3.8.2 Pneumatic connection point

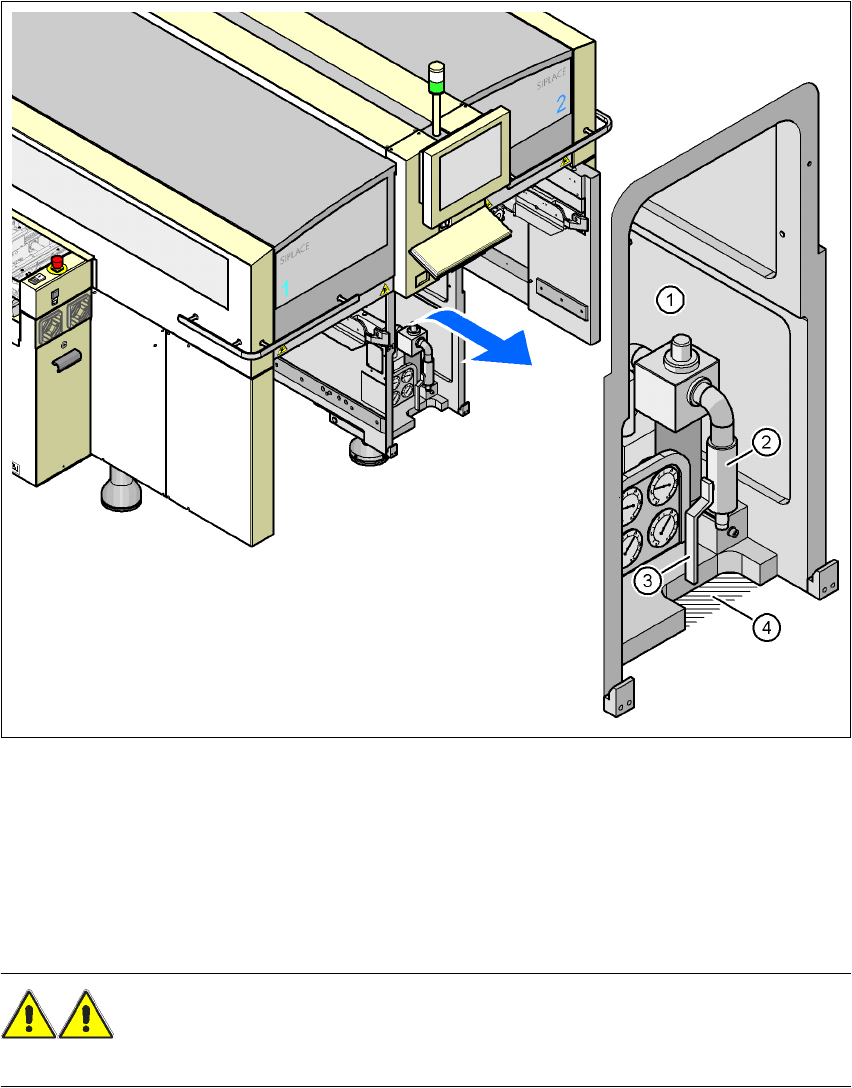

Fig. 3.8 - 2 Pneumatic connection point on the placement machine
3
(1) Pneumatic unit
(2) Coupling for connecting the compressed air hose
(3) Stop valve
(4) Recess for the air hose
WARNING
NEVER detach compressed air lines while they are still pressurized. Risk of injury. 3
