1 Introduction

These operating instructions provide a manual or reference work for operating and setting up the

placement machines for the X-series.

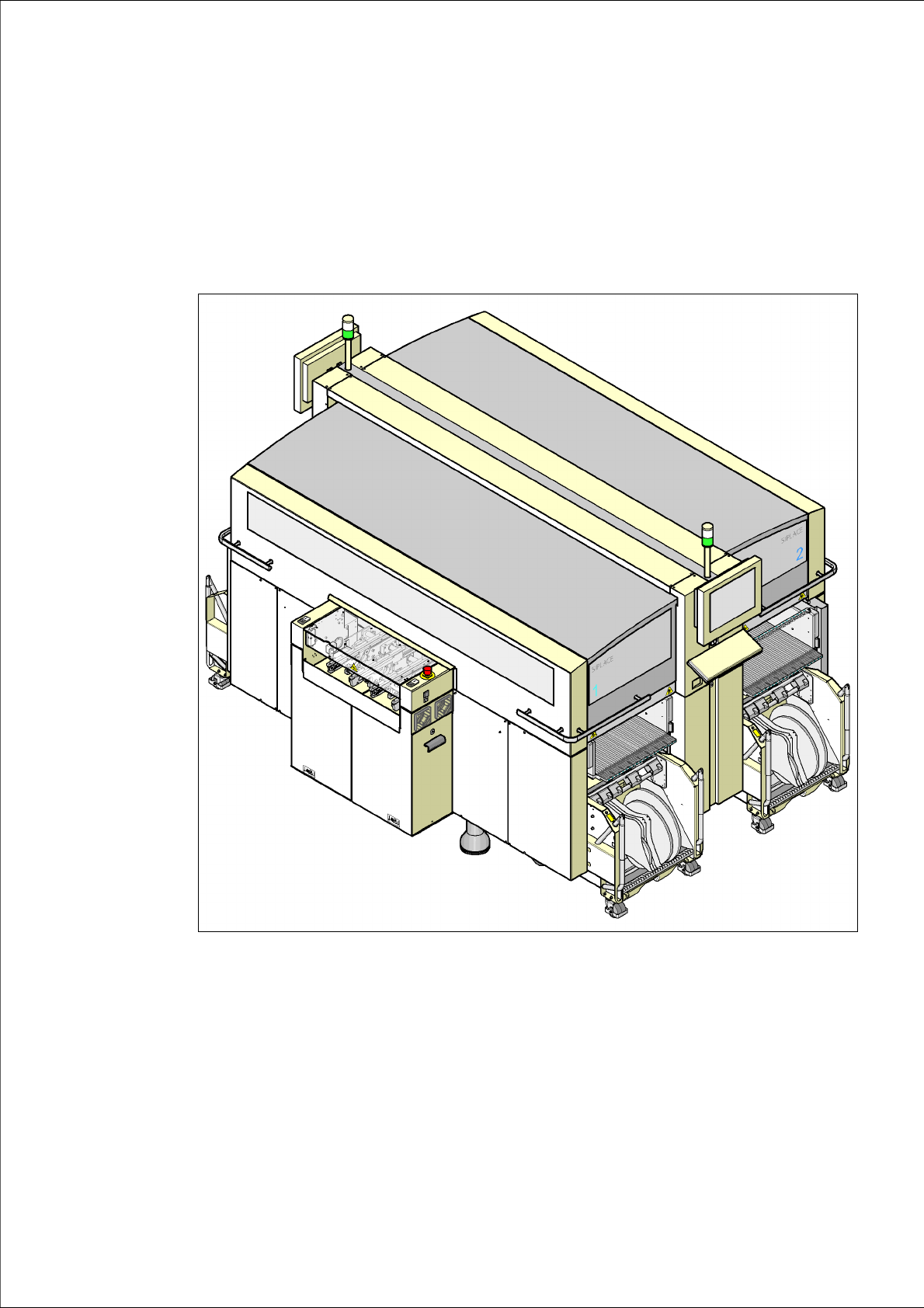

Fig. 1.0 - 1 SIPLACE X4 placement machine

The header of each chapter contains the

– release and

– software version

to which this manual applies. 1

1 Introduction User manual SIPLACE X-Series

1.1 Description Software Version SR.601.xx 11/2005 US Edition

1.1 Description

The placement systems from the SIPLACE X-series are particularly suitable for applications that

demand a high level of flexibility, utmost precision and high placement rate. Two placement meth-

ods are used:

– the Collect & Place method for high-speed placement of standard components

– the Pick & Place method for fast placement of special fine-pitch and super-fine pitch compo-

nents

The SIPLACE principle 1

The moving head picks up the components from their stationary feeder, and places them on the

PCB, which is also stationary. This proven SIPLACE principle has many advantages:

– Short down times for refilling or splicing

– Even the smallest components (e.g. 0201) are picked up reliably

– The components cannot slip on the PCB

– Minimal traversing paths

High flexibility, cost-effectiveness and set-up reliability combine to ensure that the SIPLACE series

placement machines provide high productivity. Minimum down times increase utilization and thus

help to increase productivity.

1.1.1 SIPLACE X4

The X4 placement machine is equipped with gantries, two gantries for each placement area (PA).

All the gantry axes are driven by linear motors. The gantry axes can be positioned quickly and

accurately in the X and Y directions. The gantry arms are lightweight constructions made from a

highly rigid carbon fiber composite material. There is a placement head on each gantry. The fol-

lowing placement head configurations are possible:

*) Placement area 1

**) Placement area 2

The performance data can be found in section 3.2 on page 96.

PA1

Placement heads

PA2

**)

C&P20/C&P20 C&P12/C&P12 C&P12/C&P6 C&P6/C&P6

Placement

heads

C&P20 / C&P20 yes no no no

C&P12 / C&P12 yes yes no no

C&P12 / C&P6 yes yes yes no

C&P6 / C&P6 yes yes yes yes
