User manual SIPLAC E X-Series 4 Setting up and commissioning Software Version SR.601.xx 11/2005 US Edition 4.4 Sett ing up the placement machine 193 the distance be tween the fork s so that the machine is lifted on the s…

4 Setting up and commissioning User manual SIPLACE X-Series

4.4 Setting up the placement machine Software Version SR.601.xx 11/2005 US Edition

192

4.4.4 Presetting the PCB transport height

Æ Push the forks of the fork-lift under the placement machine, as shown in Fig. 4.4 - 1.

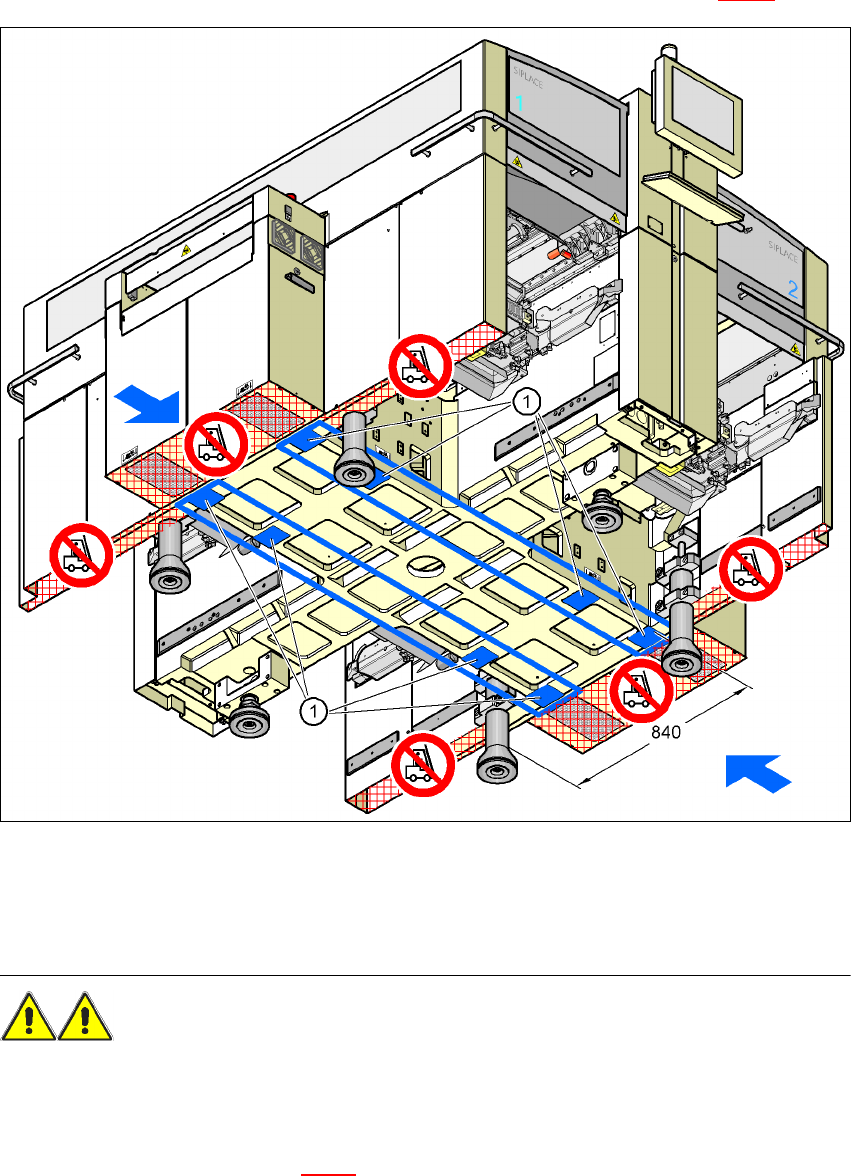

Fig. 4.4 - 1 Contact surfaces - Forks parallel to the direction of PCB transport

(1) Contact surfaces for the forks of the fork-lift

WARNING 4

Please note the following points

before

you raise the placement machine in order to avoid irre-

versible damage to the machine:

– Open the forks just wide enough to position them between the two machine feet (the attach-

ment points are shown in Fig. 4.2 - 3

). The machine feet are 776 mm apart. NEVER increase

User manual SIPLACE X-Series 4 Setting up and commissioning

Software Version SR.601.xx 11/2005 US Edition 4.4 Setting up the placement machine

193

the distance between the forks so that the machine is lifted on the side parts of the machine

frame, since this would deform the machine frame.

Æ Make sure that the forks are evenly loaded when you lift the machine. A firm support between

the forks and placement machine will prevent the machine tilting when it is raised. This will

also prevent a one-sided load on the machine feet, which would deform the fixing of the ma-

chine feet. We recommend that a second person watch the machine as it is raised, and make

sure that the machine does not tip to one side when lifted with the fork-lift.

Æ With the fork-lift, raise the machine approximately 35 cm. This will avoid any risk of injuring

your feet if you lower the machine feet accidentally.

The placement machine stands on 6 feet.

– 4 outer machine feet (item 1 in Fig. 4.4 - 3

)

There are two versions of the outer machine feet: 4

– outer machine foot for the PCB conveyor height of 830 mm, length 369 mm,

item no. 03041008-01 (item 1 in Fig. 4.4 - 3

, page 194)

– outer machine foot for the PCB conveyor heights of 900, 930 and 950 mm, length

439 mm, item no. 03000890-02 (item 2 in Fig. 4.4 - 3

, page 194)

– 2 middle machine feet (item 2 in Fig. 4.4 - 3

) with 2 spacers (items 3 and 4 in Fig. 4.4 - 3) for

adjusting the height, if necessary.

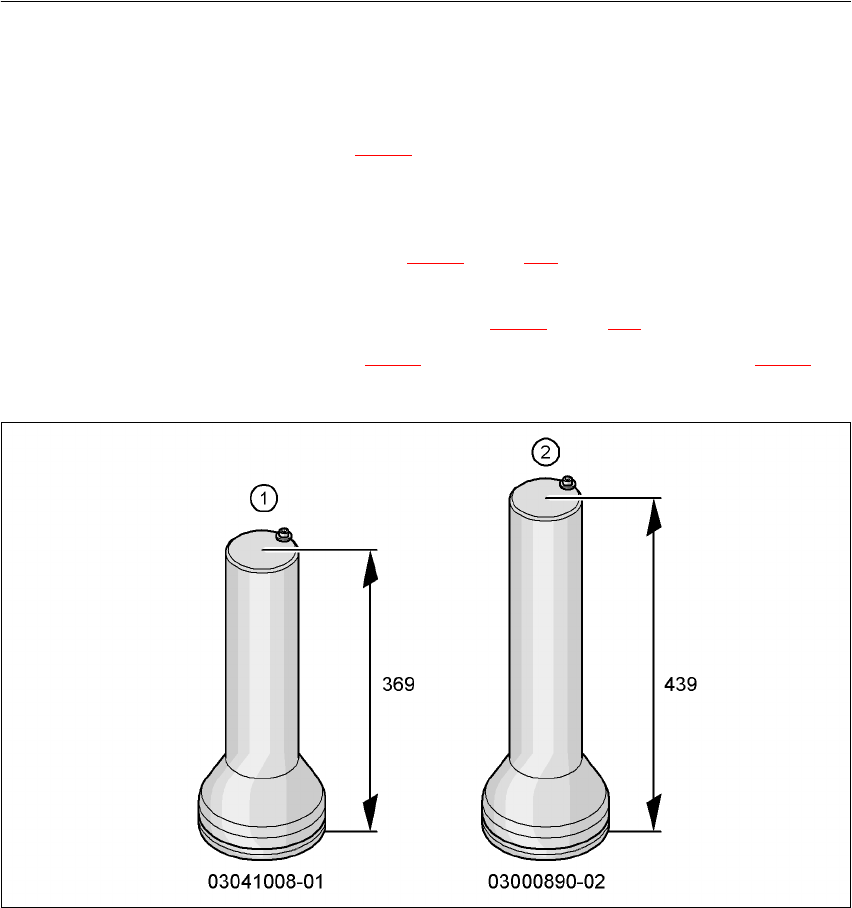

Fig. 4.4 - 2 Outer machine feet - two versions (dimensions in millimeters)

4 Setting up and commissioning User manual SIPLACE X-Series

4.4 Setting up the placement machine Software Version SR.601.xx 11/2005 US Edition

194

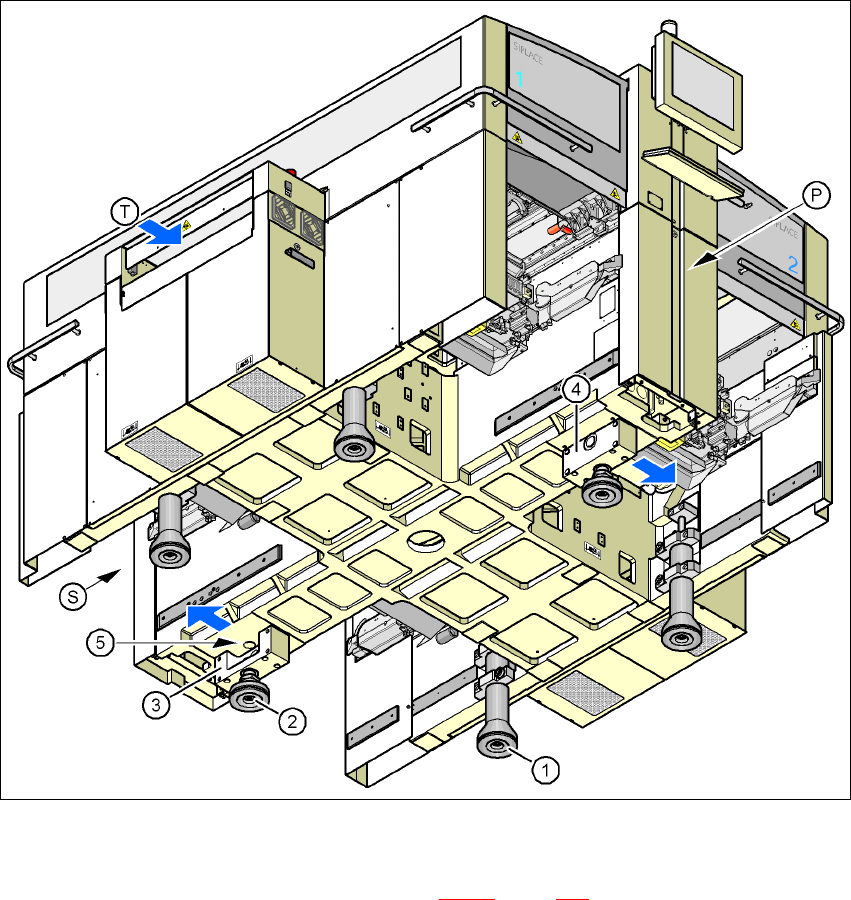

Fig. 4.4 - 3 Placement machine feet

(1) Outer machine foot, 4 x, 2 versions (see Fig. 4.4 - 2, page 193)

(2) Middle machine foot, 2 x

(3) Spacer on the power supply unit side

(4) Spacer on the pneumatic unit side

(5) Threaded hole for the middle machine foot

(T) Direction of PCB transport

(P) Pneumatic unit

(S) Power supply unit
