4.4.7.5 Fitting the grounding cable for the doors
Æ Fix the two grounding cables for the doors (item 4 in Fig. 4.4 - 8) to the machine frame as
follows:
4
Fig. 4.4 - 10 Fitting the grounding cable
4
4
4
4
4
4.4.7.6 Checking and setting the protective cover switch
Æ Check that the protective cover switch (item 7 in Fig. 4.4 - 9, page 204) is working correctly.
Æ Adjust the protective cover switch if necessary (see Service Manual).
Hex nut M5
Spring washer M5, DIN 7980
Washer M5, DIN 125
Cable lug, annular
Contact washer
User manual SIPLACE X-Series 4 Setting up and commissioning
Software Version SR.601.xx 11/2005 US Edition 4.4 Setting up the placement machine
207
4.4.7.7 Installing the "bottom" hand guard
The machines from the X-series are supplied with just
one
"bottom" hand guard. If the machines
are installed within a line, then no hand guard is required between immediately adjacent output
and input conveyors.
WARNING 4
Always fit the "bottom" hand guard (item no. 03003432-01) on the input side of the
first
place-
ment machine and on the output side of the
last
placement machine of a line using 4 hexagon
socket head screws M4x12. This will prevent your personnel reaching into the machine without
authorization.
4

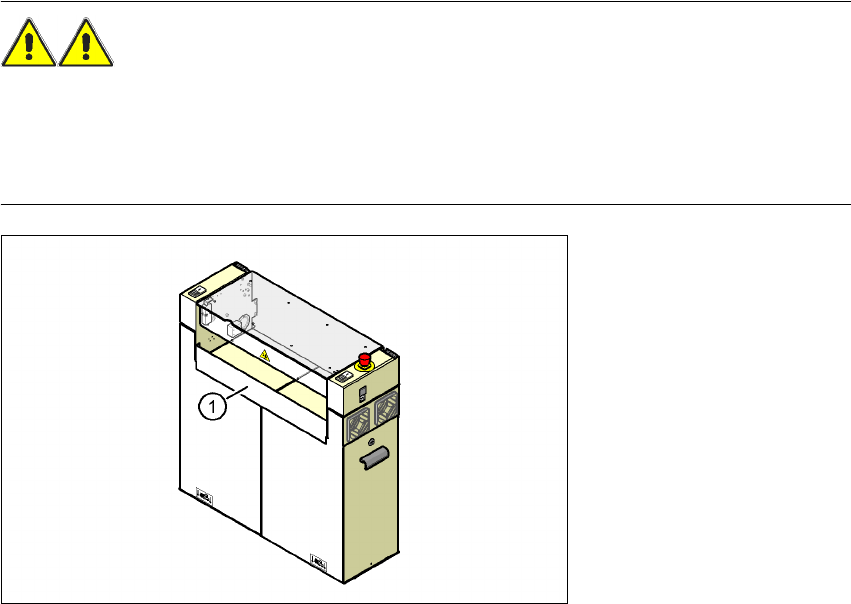

Fig. 4.4 - 11 Fitting the "bottom" hand guard on the PCB output side
(1) "Bottom" hand guard, item no. 03003432-01
4 Setting up and commissioning User manual SIPLACE X-Series
4.4 Setting up the placement machine Software Version SR.601.xx 11/2005 US Edition
208
4.4.8 Installing the axis unit on X2, X3 and X4
4.4.8.1 X2 axis unit (gantries 1 and 3) - Electrical connection points
4
Fig. 4.4 - 12 X2 axis unit, back panel - Electrical connection points
