User manual SIPLACE X-Series 4 Setting up and commissioning
Software Version SR.601.xx 11/2005 US Edition 4.4 Setting up the placement machine
215
4.4.9 Fitting the input conveyor
4.4.9.1 Tools
– Allen keys, DIN 911, set
– Phillips screwdriver, size 1
4.4.9.2 Assembly
4

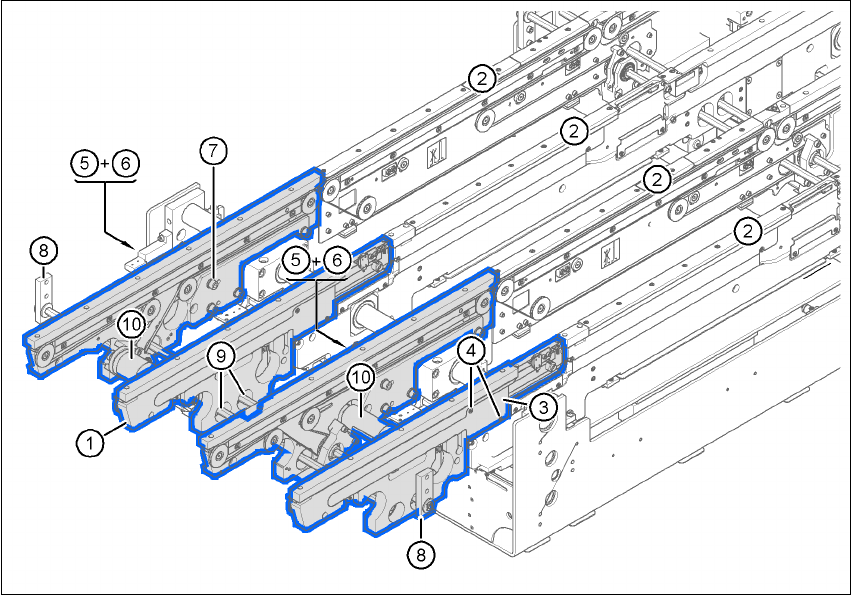

Fig. 4.4 - 15 Input conveyor - dual conveyor
(1) Panel, input conveyor
(2) Panel, processing conveyor 1
(3) Cable cover 20 x 200
(4) Countersunk screw, ISO 7046, M3x6, 2x per cable cover
(5) Cable cover 20 x 310
(6) Fillister head screw DIN 912, M3x5, 1x per cable cover
(7) Fillister head screw DIN 912, M6x16, and washer, 4x per panel
(8) Guide for hexagonal shaft
(9) Hexagonal shaft (single conveyor: one, dual conveyor: two)
(10) Drive unit
4 Setting up and commissioning User manual SIPLACE X-Series
4.4 Setting up the placement machine Software Version SR.601.xx 11/2005 US Edition
216
Æ Remove the cable covers (items 3 and 5 in Fig. 4.4 - 15) from the input conveyor (item 1 in
Fig. 4.4 - 15
).
Æ Carefully place the panel (item 1 in Fig. 4.4 - 15) against the panel on the processing con-
veyor (item 2 in Fig. 4.4 - 15
).
CAUTION 4
Be careful not to cut through any of the light barrier or drive motor cables.
Æ Fix each panel using 4 fillister head screws M6x16 and the associated washers (item 7 in Fig.
4.4 - 15
).
Æ Connect the power cable to the light barriers and drive motors.
Æ Fix the cable covers in place (item 3 and 5 in Fig. 4.4 - 15).
Æ Introduce the hexagonal shaft (item 9 in Fig. 4.4 - 15) into the drive unit (item 10 in Fig. 4.4 -
15).
Æ Make sure that the hexagonal shaft guide (item 8 in Fig. 4.4 - 15) always points towards the
conveyor side wall to which the drive unit (item 10 in Fig. 4.4 - 15
) is fixed.
User manual SIPLACE X-Series 4 Setting up and commissioning
Software Version SR.601.xx 11/2005 US Edition 4.4 Setting up the placement machine
217
4.4.10 Fitting the extension kit on the PCB input side
4.4.10.1 Tools
– Allen keys, DIN 911, set
– Machine key
4.4.10.2 Assembly
4
Fig. 4.4 - 16 Fitting the extension kit on the PCB input side
(1) Extension kit, dismantled
(2) Doors
(3) Fillister head screw DIN 912, M6x16 and washer
(4) Ground connection
(5) Conveyor cover
(6) Side plate, dismantled
(7) Drawer unit rail
(8) Computer unit
(9) Axis unit (X3, X4)
