User manual SIPLACE X-Series 4 Setting up and commissioning
Software Version SR.601.xx 11/2005 US Edition 4.4 Setting up the placement machine
223
4.4.11 Installing the axis unit on X2, X3 and X4
4.4.11.1 Computer unit - Electrical connection points
4

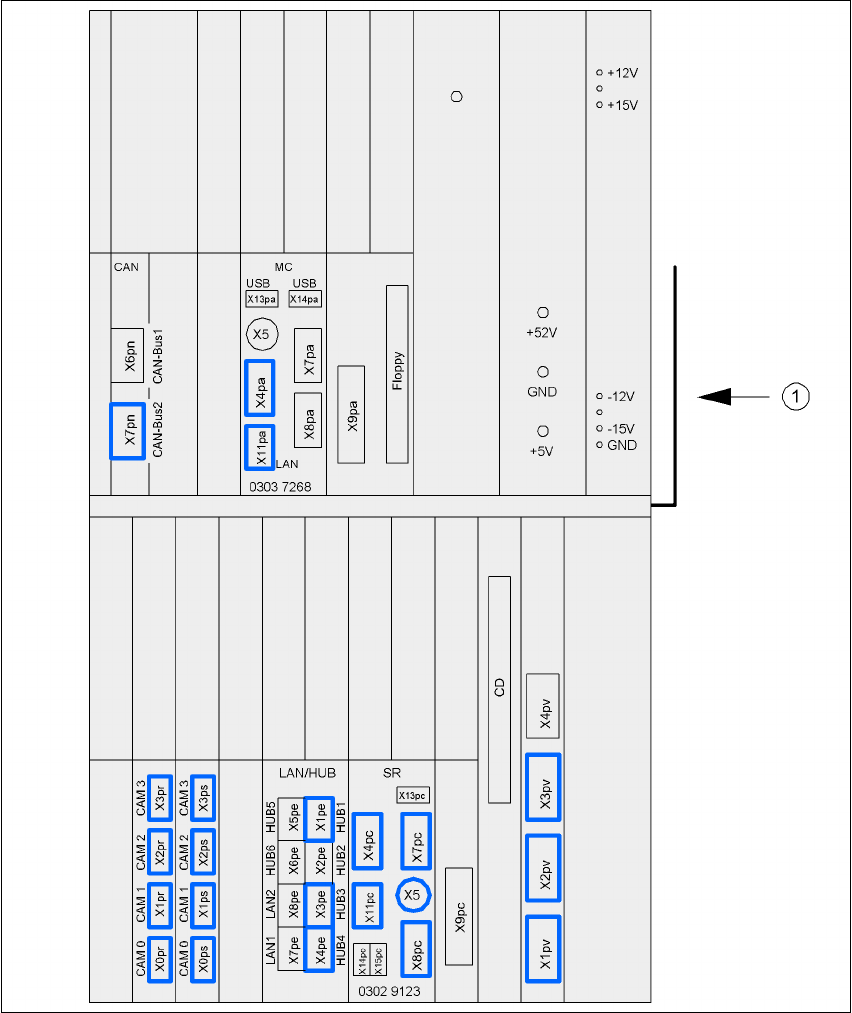

Fig. 4.4 - 20 Computer unit, front panel - Connecting the plugs
(1) Cable guide plate
+3.3V
Video multiplexer
4 Setting up and commissioning User manual SIPLACE X-Series
4.4 Setting up the placement machine Software Version SR.601.xx 11/2005 US Edition
224
4
Fig. 4.4 - 21 Computer unit, back panel - Connecting the plugs
(1) Cable guide plate
Fan
Battery
+3.6V
User manual SIPLACE X-Series 4 Setting up and commissioning
Software Version SR.601.xx 11/2005 US Edition 4.4 Setting up the placement machine
225
4.4.11.2 Computer unit X2, X3 and X4 - plug-in connectors on the front panel
4
*) This plug is intended for cameras.
Æ Also check the following plug-in connectors:
4
**) Only if vision processor option is installed
Computer unit,
front panel
(Fig. 4.4 - 20
)
Plug
Connecting cable NOTE
Plug Cable
X0pr *) X0pr 03009778 Insert as far as the stop
X1pr *) X1pr 03009838 Insert as far as the stop
X2pr *) X2pr 03009755 Insert as far as the stop
X3pr *) X3pr 03009756 Insert as far as the stop
X8pc X8pc 03002970 Secure with screws
X7pc X7pc 03002967 Secure with screws
X5pc X5pc 03002958 + 03002959 Insert as far as the stop
X7pn X7pn 03010055 Secure with screws
X0ps *) X0ps 03009798 Insert as far as the stop
X1ps *) X1ps 03009818 Insert as far as the stop
X2ps *) X2ps 03009757 Insert as far as the stop
X3ps *) X3ps 03009758 Insert as far as the stop
Computer unit,
front panel
(Fig. 4.4 - 20
)
Plug
Connecting cable Computer unit,
front panel
(Fig. 4.4 - 20)
Plug
Plug Cable Plug
X1pe X1pe 03010623 X11pt X11pt **)
X3pe X3pe 03010623 X11pc X11pc
X4pe X4pe 03010623 X11pa X11pa
X1pv X1pv 03010615 X4pa X4pa
X2pv X2pv 03010615 X4pc X4pc
X3pv X3pv 03010619 X4pt X4pt **)
