5 Tasks on the machine User manual SIPLACE X-Series
5.5 Setting up the X feeder module Software Version SR.601.xx 11/2005 US Edition
268
5.5 Setting up the X feeder module
Setting up the X feeder modules is described in the job guide.
5.6 LCD and status displays on the X feeder module
The X feeder modules have a multicolor status display (Pos. 6) for signaling the operating statuses
and an LCD display (item 1) to display the texts.
– If the status display lights up green, the feeder module is on standby and is contained in
the current set-up. If the feeder module is not contained in the current set-up, the status
display remains off.
– If the status display lights up orange, it is signaling a warning. The text of the warning
appears on the LCD display.
– If the status display lights up red, a malfunction has occurred. The error message is out-
put on the LCD display.
5

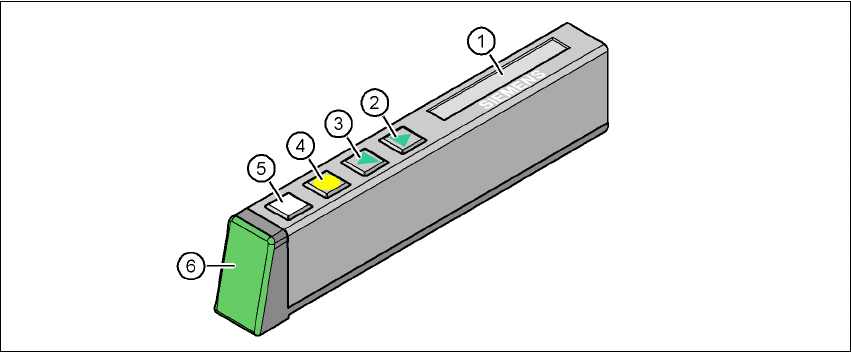

Fig. 5.6 - 1 Buttons, LCD and status displays on the X feeder module
(1) LCD display
(2) FORWARD button
(3) BACK button
(4) FOIL button
(5) SET button
(6) Status display, multicolor
The following tables containing the wording of the LCD display, the color and the mode of the sta-
tus display, its meaning and troubleshooting measures.
User manual SIPLACE X-Series 5 Tasks on the machine
Software Version SR.601.xx 11/2005 US Edition 5.6 LCD and status displays on the X feeder module
269
5.6.1 Warnings
5
5
5.6.2 Error messages and trouble-shooting
5
Text on the
LCD display
Status
display
Meaning Trouble-shooting
Remove Foil Orange The selected function is not
permitted when the cover foil
is tensioned (foil rocker is
pressed down).
If you wish to carry out that function, remove
the foil from the pair of gear wheels and cut
it off to relieve the pressure on the foil rocker.
Text on the
LCD display
Status
display
Meaning Trouble-shooting
none Red,
flashing
Feeder module software not
jumping to the application
Reload the application software
Load feeder module software
Handle --->> Red Feeder module was sig-
naled, but removal handle is
not yet pushed in
Push in the removal handle
Low Voltage Orange 24V supply voltage did not
rise above the switch-on
threshold after switching on
Check the power supply
Low Voltage Red 24V supply voltage rose
above the switch-on thresh-
old after switching on and
was then interrupted
Check the power supply
Feed Timeout
TransTimeout
(Timeout in tape
feeder cycle)
Red Tape feeder cycle did not
end correctly within the spec-
ified time (timeout for the
"Feed" function)
Is the tape reel jammed in the container?
Is there a component jammed in the pick-up
area between component tape and compo-
nent window?
Once the obstacle has been eliminated, use
the arrow keys to restart the conveyor. The
feeder module will move the defective con-
veyor to the end, and then returned to its
position
Foil Torn Red Foil was not tensioned within
the specified time
The foil is probably torn. Insert new foil and
tension
Foil PeelErr Red Foil was not peeled off even
though the tape is moved
The cover foil is probably jammed beneath
the pick-up window and cannot be peeled
off correctly
5 Tasks on the machine User manual SIPLACE X-Series
5.6 LCD and status displays on the X feeder module Software Version SR.601.xx 11/2005 US Edition
270
5
PLEASE NOTE 5
Remove the component tape before a reference run.
Foil Jam Red Foil motor has locked up Leveling gears blocked by foil? => Remove
the foil
EEP-WriteErr
(Error while back-
ing up data in the
EEPROM)
Red The data back-up in the EE-
PROM was not carried out
correctly
Remove the component tape (tape can be
moved out by pressing the arrow keys or
pulled out after raising the pick-up window).
Press the SET button to confirm the error.
Then press the yellow button to confirm the
reference run prompt.
EEP-ReadErr
(Error while read-
ing the EEPROM)
Red Data was not read from the
EEPROM correctly
EEP-DataErr
(Error while back-
ing up the data in
the EEPROM)
Red The data back-up in the EE-
PROM was not carried out
fully
Reference o Red Position information is no
longer available for the com-
ponent tape drive
Remove the component tape (tape can be
moved out by pressing the arrow keys or
pulled out after raising the pick-up window).
Then press the "FOIL" button to start the
reference run.
CAN BusError Red CAN bus error Log off and on again, check the optical fiber
interface
ParNotSaved! Red Parameters were not saved Default parameters are loaded automatical-
ly, i.e. the most recent operator settings are
overwritten -> The settings (e.g. increment)
will have to be made again. Replace the
control board if this error occurs frequently.
ParWrongSave Red Wrong or incomplete param-
eters were saved
BootFlashErr
FlashDataErr
Red Can no longer write to boot
or application memory cor-
rectly
Replace the feeder module or control board
Text on the
LCD display
Status
display
Meaning Trouble-shooting
