5 Tasks on the machine User manual SIPLAC E X-Series 5.10 Docking the component trolley in or out Software V ersion SR.601.xx 11/2005 US E dition 278 5.10.4 Docking the X-seri es component trolley CAUTION 5 The comp onen…
User manual SIPLACE X-Series 5 Tasks on the machine
Software Version SR.601.xx 11/2005 US Edition 5.10 Docking the component trolley in or out
277
5.10.3 Safety instructions for moving the component trolley
WARNING 5
To prevent accidents, ALWAYS follow the rules listed below when you move the component trol-
ley.
Æ Always hold the handles with both hands when you want to move the component trolley.
Æ Remember that a component trolley with the full complement of feeder modules can tip over
sideways or forward on gradients of 20° or more.
Æ Make sure that the surface on which the trolley is moved has a significantly smaller gradient.
Æ Be careful not to collide with obstacles. The trolley could tip forward if it is traveling fast
enough.
5 Tasks on the machine User manual SIPLACE X-Series
5.10 Docking the component trolley in or out Software Version SR.601.xx 11/2005 US Edition
278
5.10.4 Docking the X-series component trolley
CAUTION 5
The component trolleys for the SIPLACE X-series (Fig. 5.10 - 3
) and SIPLACE HF (Fig. 5.10 - 6,
page 281
) have different docking units. Each component trolley must therefore only be docked
into the correct docking unit. Be careful when you push component trolleys for the SIPLACE X-
series into the machine and make sure that the locking latches (item 3 in Fig. 5.10 - 3
) do not
bump into obstacles.
5

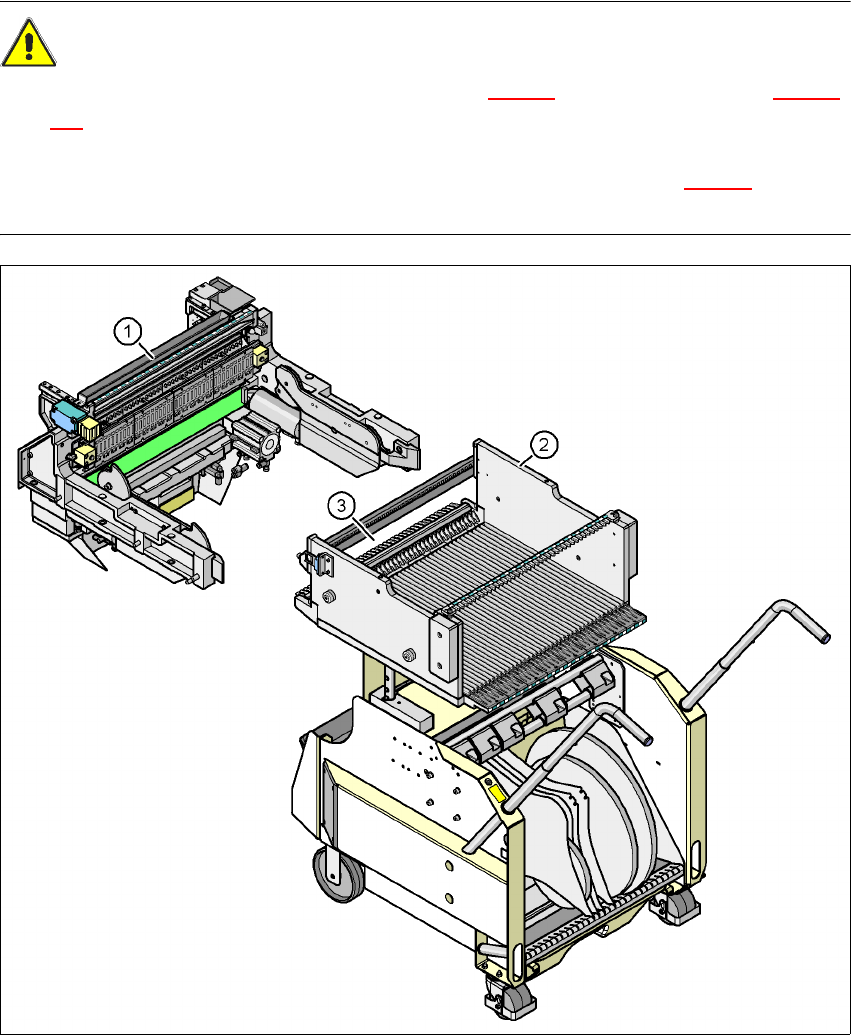

Fig. 5.10 - 3 Component trolley and component trolley docking unit, SIPLACE X-series
(1) Component trolley docking unit, SIPLACE X-series
(2) Component trolley, SIPLACE X-series
(3) Locking latches
User manual SIPLACE X-Series 5 Tasks on the machine
Software Version SR.601.xx 11/2005 US Edition 5.10 Docking the component trolley in or out
279
PLEASE NOTE 5
Cut the component tapes off flush with the front end of the X feeder modules before you dock in
the component trolley.
CAUTION 5
Check that the placement head is outside the range of the component trolley.
Æ Carefully push the component trolley into machine as far as the stop.
PLEASE NOTE 5
Close the protective covers since the component trolley can only be docked in if the covers are
closed.
Æ Press the relevant button on the input or output side of the machine (item 1, 2, 3 or 4 in Fig.
5.10 - 1
) until the trolley is docked in fully.
Æ Push the sleeve (item 1 in Fig. 5.10 - 4) up using both handles and swivel the handle down
(item 2 in Fig. 5.10 - 4
).
5
Fig. 5.10 - 4 Component trolley X-series - swivel handles down
(1) Push sleeve up
(2) Fold handle down
