5 Tasks on the machine User manual SIPLACE X-Series
5.10 Docking the component trolley in or out Software Version SR.601.xx 11/2005 US Edition
280
5.10.5 Approach guard for the X-series component trolley on the SIPLACE HF
component trolley docking unit
The approach guard prevents an X-series component trolley moving into the SIPLACE HF com-
ponent trolley docking unit (item 2 in Fig. 5.10 - 5
, page 280.
WARNING 5
Without this approach guard, there is a risk that an X-series component trolley may be acciden-
tally be pushed into the SIPLACE HF component trolley docking unit and damage it.
It is not possible to move a SIPLACE HF component trolley into the component trolley docking
unit for X feeder modules due to the construction.
If the approach guard is missing, it MUST be retrofitted. The retrofit is described in the instruction
sheet with item no. 00194621-xx.
5

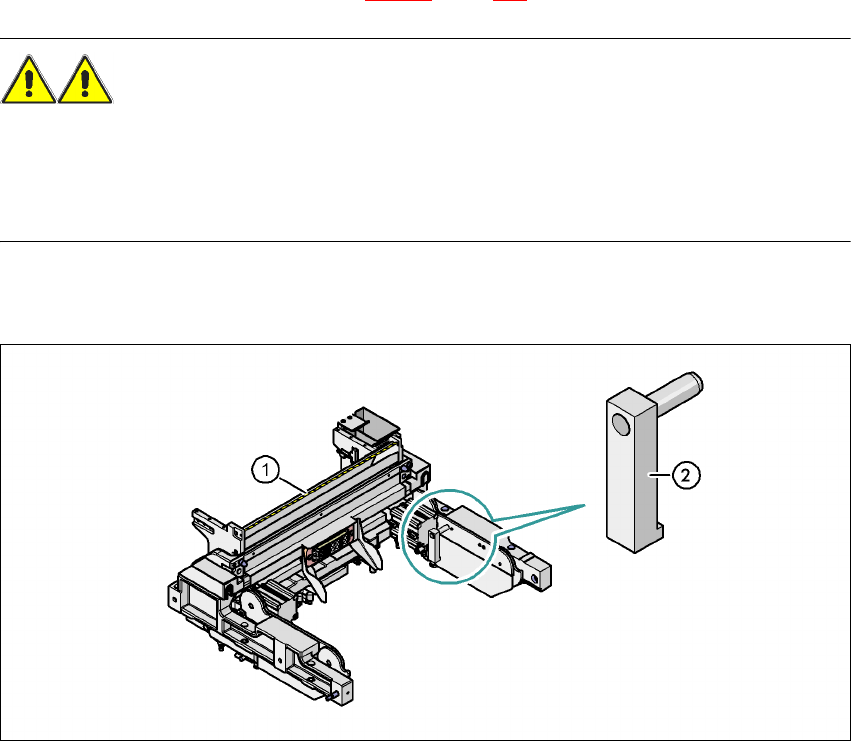

Fig. 5.10 - 5 Approach guard for the X-series component trolley on the SIPLACE HF component trolley docking unit
(1) Component trolley docking unit, SIPLACE HF
(2) Approach guard, item no. 0308865S01
User manual SIPLACE X-Series 5 Tasks on the machine
Software Version SR.601.xx 11/2005 US Edition 5.10 Docking the component trolley in or out
281
5.10.6 Docking the HF component trolley
CAUTION 5
The component trolleys for the SIPLACE X-series (Fig. 5.10 - 3
, page 278) and SIPLACE HF
(Fig. 5.10 - 6
) have different docking units. Each component trolley must therefore only be
docked into the correct docking unit.
5

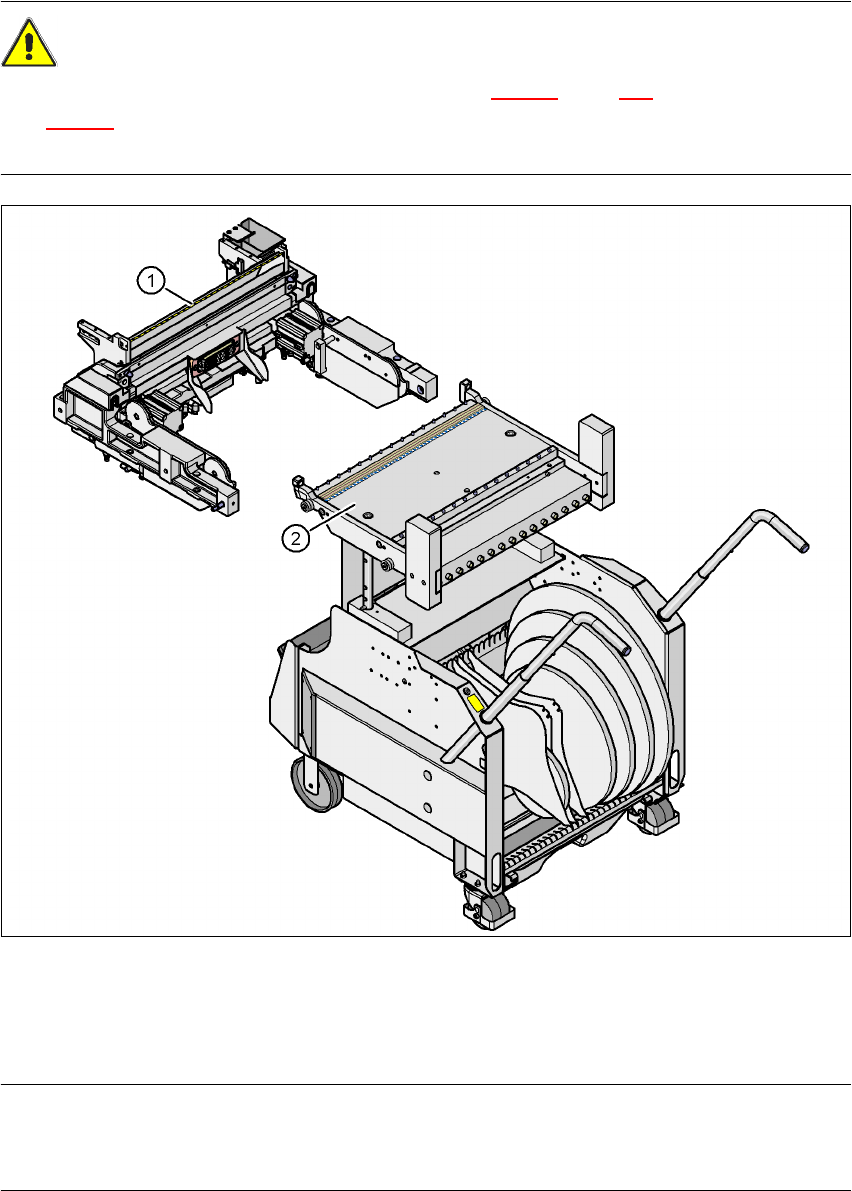

Fig. 5.10 - 6 Component trolley and component trolley docking unit, SIPLACE HF
(1) Component trolley docking unit, SIPLACE HF
(2) Component trolley, SIPLACE HF
PLEASE NOTE 5
Shorten the component tapes on the front end of the S feeder modules to approximately 3 cm
before you dock in the component trolley.
5 Tasks on the machine User manual SIPLACE X-Series
5.10 Docking the component trolley in or out Software Version SR.601.xx 11/2005 US Edition
282
CAUTION 5
Check that the placement head is outside the range of the component trolley.
Æ Carefully push the component trolley into machine as far as the stop.
PLEASE NOTE 5
Close the protective covers since the component trolley can only be docked in if the covers are
closed.
Æ Press the relevant button on the input or output side of the machine (item 1, 2, 3 or 4 in Fig.
5.10 - 1
, page 275), until the trolley is docked in fully.
Æ Push the sleeve (item 1 in Fig. 5.10 - 7) up using both handles and swivel the handle down
(item 2 in Fig. 5.10 - 7
).
5

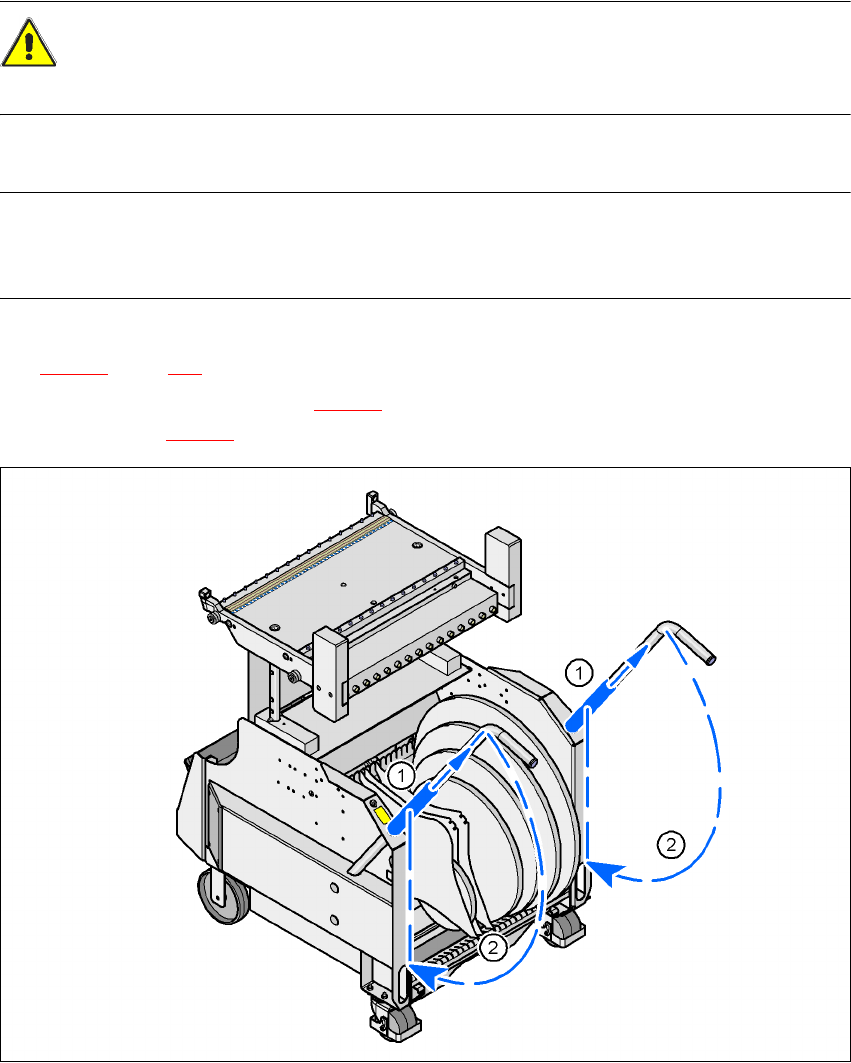

Fig. 5.10 - 7 HF component trolley - swivel handles down
(1) Push sleeve up
(2) Fold handle down
