6 Component handling User manual SIPLACE X-Series 6.1 X feeder modules for the c omponent trolley fro m the SIPLACE X-series Software Version SR. 601.xx 11/2005 US Edition 296 6.1.2.4 24 mm X t ape feeder module 6 Fig. 6…
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.1 X feeder modules for the component trolley from the SIPLACE X-series
295
6.1.2.3 16 mm X tape feeder module
6

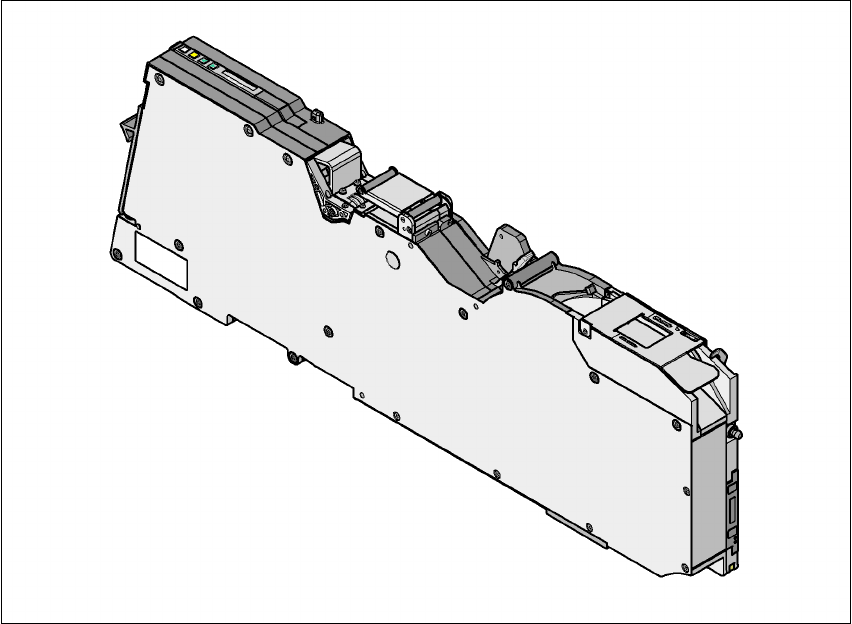

Fig. 6.1 - 7 Tape feeder module 16 mm X
6
16 mm X tape feeder module Item no. 00141272-xx
16 mm X tape feeder module with splice sensor Item no. 00141292-xx
Width 34.4 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 20 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
< 15 s
6 Component handling User manual SIPLACE X-Series
6.1 X feeder modules for the component trolley from the SIPLACE X-series Software Version SR.601.xx 11/2005 US Edition
296
6.1.2.4 24 mm X tape feeder module
6
Fig. 6.1 - 8 Tape feeder module 24 mm X
6
6
6
24 mm X tape feeder module Item no. 00141273-xx
24 mm X tape feeder module with splice sensor Item no. 00141293-xx
Width 34.4 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 32 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
< 15 s
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.1 X feeder modules for the component trolley from the SIPLACE X-series
297
6.1.2.5 32 mm X tape feeder module
6
Fig. 6.1 - 9 Tape feeder module 32 mm X
6
6
32 mm X tape feeder module Item no. 00141274-xx
32 mm X tape feeder module with splice sensor Item no. 00141294-xx
Width 46.2 mm
Feeder module locations filled 4
Conveyor increment From 4 mm to 40 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
< 15 s
