6 Component handling User manual SIPLACE X-Series 6.1 X feeder modules for the c omponent trolley fro m the SIPLACE X-series Software Version SR. 601.xx 11/2005 US Edition 300 6.1.2.8 72 mm X t ape feeder module 6 Fig. 6…
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.1 X feeder modules for the component trolley from the SIPLACE X-series
299
6.1.2.7 56 mm X tape feeder module
6

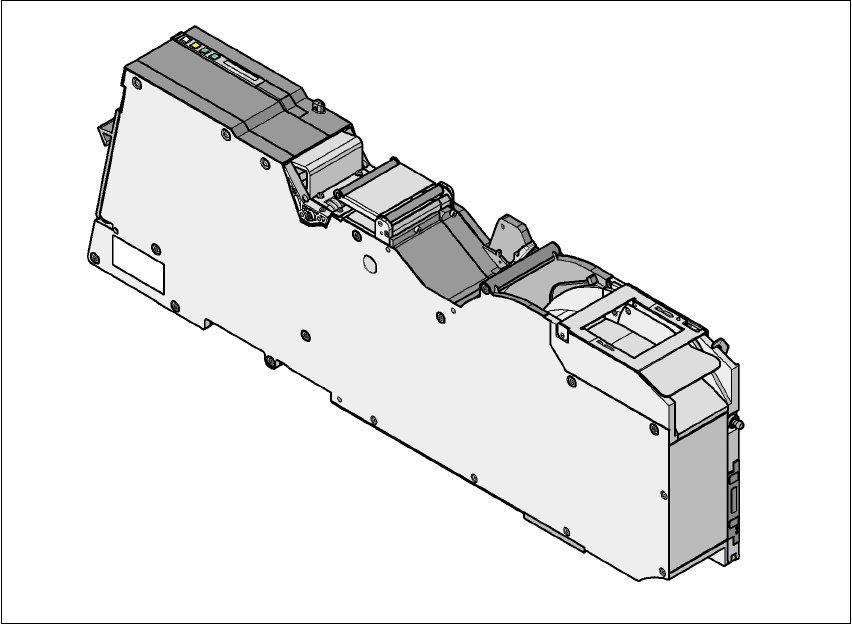

Fig. 6.1 - 11 56 mm X tape feeder module
6
6
6
56 mm X tape feeder module Item no. 00141276-xx
56 mm X tape feeder module with splice sensor Item no. 00141296-xx
Width 69,8
Feeder module locations filled 6
Conveyor increment From 4 mm to 64 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
< 15 s
6 Component handling User manual SIPLACE X-Series
6.1 X feeder modules for the component trolley from the SIPLACE X-series Software Version SR.601.xx 11/2005 US Edition
300
6.1.2.8 72 mm X tape feeder module
6
Fig. 6.1 - 12 72 mm X tape feeder module
6
6
6
72 mm X tape feeder module Item no. 00141277-xx
72 mm X tape feeder module with splice sensor Item no. 00141297-xx
Width 81,6
Feeder module locations filled 7
Conveyor increment From 4 mm to 80 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
< 15 s
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.1 X feeder modules for the component trolley from the SIPLACE X-series
301
6.1.2.9 88 mm X tape feeder module
6
Fig. 6.1 - 13 88 mm X tape feeder module
6
6
6
88 mm X tape feeder module Item no. 00141278-xx
88 mm X tape feeder module with splice sensor Item no. 00141298-xx
Width 105.2 mm
Feeder module locations filled 9
Conveyor increment From 4 mm to 96 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
< 15 s
