6.1.3 Waffle-pack tray holder for the component trolley from the SIPLACE X-series
Item no. 00141285-xx
6
Fig. 6.1 - 14 Waffle-pack tray holder
(1) Waffle-pack tray holder from the SIPLACE X-series
(2) Retaining bracket for a second JEDEC waffle-pack tray
(3) Waffle-pack tray carrier
(4) Stop bars for the JEDEC waffle-pack tray
(5) Dowel pin - Zero point for the JEDEC waffle-pack tray
Individually fitted JEDEC waffle-pack trays or waffle-pack magazines can be fixed to the waffle-
pack tray carrier using magnets. If two JEDEC waffle-pack trays are fitted, you must fix them with
locking and retaining rails, as used for the waffle-pack tray carrier on the MTC2.
Parts Item no.
Magnet 00316593-xx
Locking and retaining rail for JEDEC trays 00372615-xx
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.1 X feeder modules for the component trolley from the SIPLACE X-series
303
6.1.3.1 Technical data
*) X feeder modules can be positioned at the remaining 8 locations. If locking and retaining rails
are used, however, the fixing lever projecting at the side reduces the available locations to 6.
6.1.3.2 Number of waffle-pack trays per location and machine
6.1.3.3 Using the waffle-pack tray holder on the X-series component trolley
Æ Place the two front slider guides (item 1 in Fig. 6.1 - 15, page 304) of the holder on the inser-
tion aid (item 6).
Æ Push the holder forward along the guide profiles (item 7). The holder will slide with its front
(item 1) and rear slider guides (item 2) on the guide profiles.
Æ Carefully push the holder further until the two "front" centering pins (item 4) disappear into the
centering holes (item 10).
Æ Watch the two "rear" centering pins (item 3) on the holder. They must slide easily into the re-
cesses (item 8) on the centering bar.
Æ When the holder is at the stop position, the locking tabs (item 9) engage on the locking rollers
(item 5) on the holder.
The waffle-pack tray holder can be locked and released via the user interface. It is therefore not
possible to change the holder while placement is in progress.
Dimensions L x W x H 429 mm x 376 mm x 200 mm
Location filled on the component table 32 locations
*)
Positioning option on the X-series machines Locations 2 and 4
Software
Station software SR.601.xx or later
Programming system SIPLACE Pro 3.0 or later
Range of placement heads TwinHead, C&P6, C&P12
Placement machine Location 2 Location 4
X4 1 1
X3 2 1
X2 2 2
6 Component handling User manual SIPLACE X-Series
6.1 X feeder modules for the component trolley from the SIPLACE X-series Software Version SR.601.xx 11/2005 US Edition
304
WARNING 6
All locations must be equipped with feeder modules in order to guarantee operational reliability. If
there are not enough feeder modules available, unassigned locations should be fitted with a
hand guard (dummy feeder module). When a waffle-pack tray is set up, the remaining locations
have to be protected again with a hand guard.
6

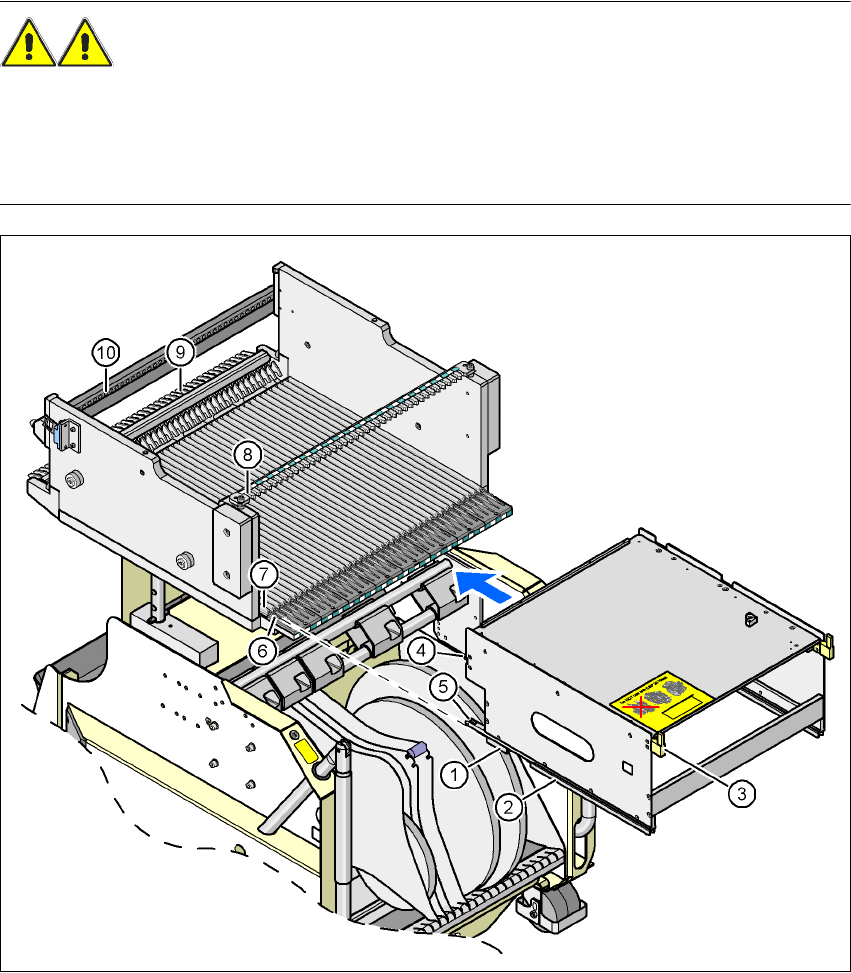

Fig. 6.1 - 15 Inserting a waffle-pack tray holder for the component trolley from the SIPLACE X-series
(1) Front slider guide (6) Insertion aid
(2) Back slider guide (7) Slide bar (omega profile)
(3) "Back" centering pin (8) Recess in the centering bar for holding the
"back" centering pin
(4) "Front" centering pin (9) Locking latches
(5) Locking roller (10) Centering holes on the component table for
holding the "front" centering pin
