User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.2 SIPLACE X-series component trolley
309
6.2.3 Fiducials on the component trolleys from the SIPLACE X-series
6

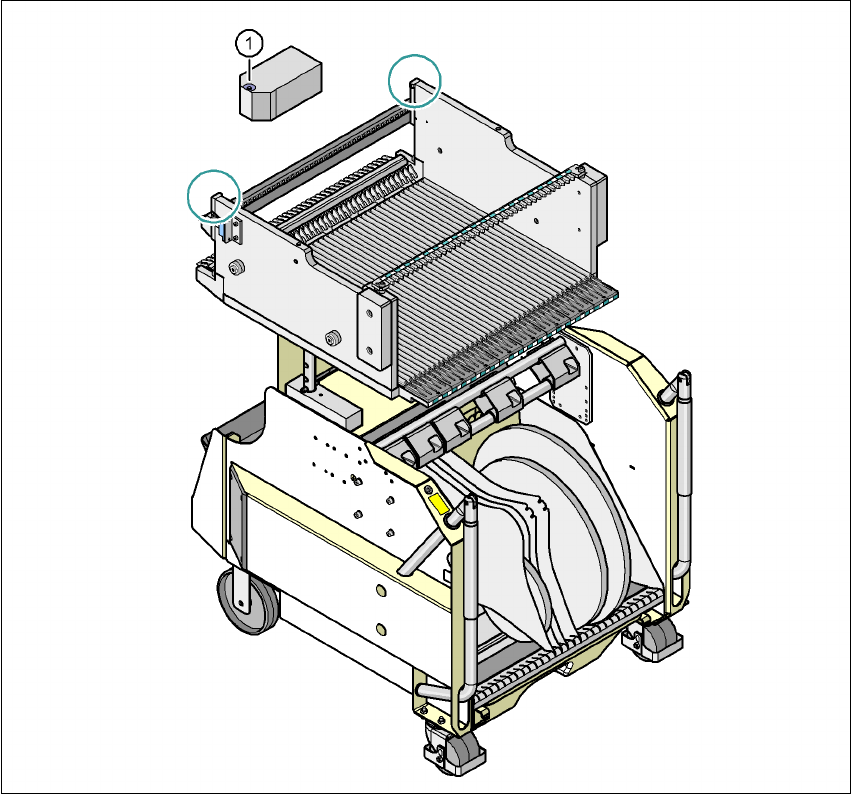

Fig. 6.2 - 4 Fiducials on the component trolleys from the SIPLACE X-series
(1) Fiducials on the component trolley
Once the SIPLACE X-series component trolley has been docked in, the machine measures the
fiducials on the component trolley.
For components with an edge length of less than 0.5 mm, i.e. 0402 components and smaller, the
position of the component is determined with the tape pocket before the first component is picked
up.
6 Component handling User manual SIPLACE X-Series
6.2 SIPLACE X-series component trolley Software Version SR.601.xx 11/2005 US Edition
310
6.2.4 Dimensions of the component trolley, SIPLACE X-series
6
Fig. 6.2 - 5 Dimensions of the component trolley, SIPLACE X-series, all dimensions in
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.2 SIPLACE X-series component trolley
311
6.2.5 SIPLACE X-series component table
The front slider guides of the feeder modules are placed on the insertion aid (item 1 in Fig. 6.2 -
6). As it is pushed in, the guides of the feeder module (item 12 and 13 in Fig. 6.1 - 2) slide on the
guide profile (item 2 in Fig. 6.2 - 6
) as far as the stop bar (item 4 in Fig. 6.2 - 6). A centering hole
(item 5 in Fig. 6.2 - 6
) on the stop bar holds the "front" centering pin (item 4 in Fig. 6.1 - 1) of the
X feeder module. At the same time, the locking latch (item 1 in Fig. 6.2 - 7
) of the component table
latches on the locking roller (item 1 in Fig. 6.1 - 1
) of the feeder module. The "back" centering pin
(item 12 in Fig. 6.1 - 1
) on the top of the feeder module is held by the recess in the centering bar
(item 3 in Fig. 6.2 - 6
).
6

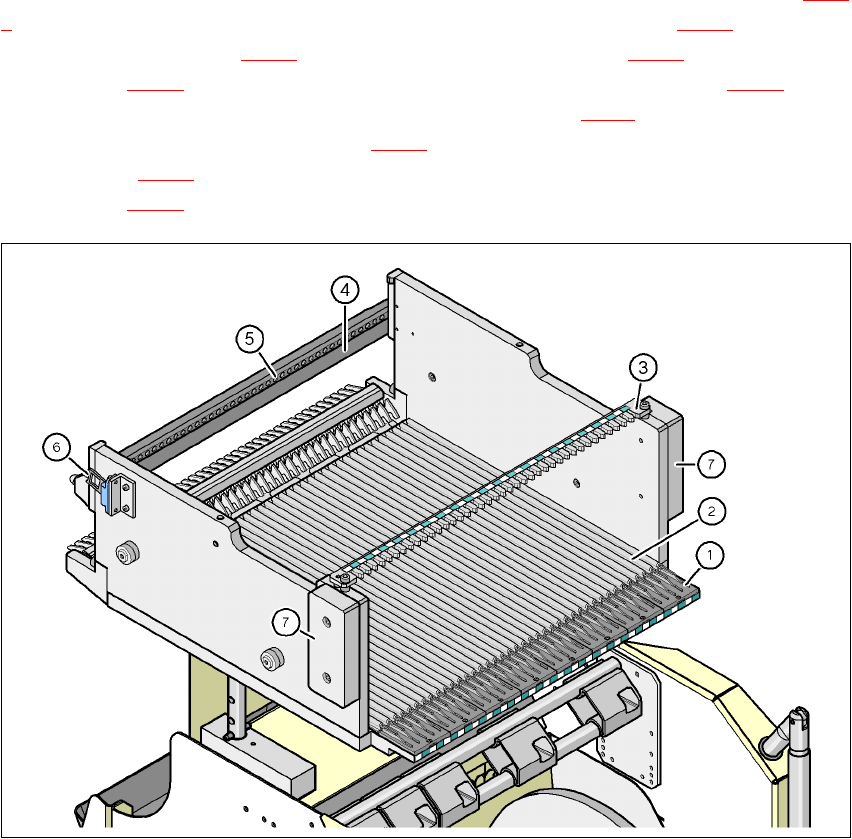

Fig. 6.2 - 6 Component table, SIPLACE X-series, back view
(1) Insertion aid
(2) Guide profile (Ω profile)
(3) Centering bar for holding the "back" centering pin for X feeder modules
(4) Stop bar
(5) Centering holes
(6) Contact for switching the safety switch of the emergency stop circuit
(7) Hand guard
