User manual SIPLAC E X-Series 6 Component han dling Software Vers ion SR.601.xx 11/2005 US Edition 6.2 SIPLAC E X-series c omponent trolley 313 6.2.6 Support for an additional t ape reel (X-series) 6 Fig. 6.2 - 8 Support…
6 Component handling User manual SIPLACE X-Series
6.2 SIPLACE X-series component trolley Software Version SR.601.xx 11/2005 US Edition
312
6
Fig. 6.2 - 7 Component table, SIPLACE X-series, front view
(1) Locking latches
(2) Centering pin on the component table
(3) Compressed air coupling
(4) Grounding pin
(5) Centering hole on the component table
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.2 SIPLACE X-series component trolley
313
6.2.6 Support for an additional tape reel (X-series)
6
Fig. 6.2 - 8 Support for an additional tape reel (X-series)
(1) Support for an additional tape reel, item no. 00141217-xx
(2) Mounting device for the support
X-series feeder modules can process component tapes without problems if the lateral offset be-
tween the feeder module and the tape reel does not exceed 60 mm. If a predefined set-up means
that the maximum permitted offset cannot be maintained, we recommend that you use the mount
for an additional tape reel (item 1). Simply insert the mount into the holder (item 2) and push it until
the offset is less than the maximum permitted value of 60 mm. The component trolley has 5 hold-
ers in total. Each tape reel mount can hold 2 tape reels, which means that up to ten 15" (381 mm)
reels can be positioned above the tape container.
max. 60 mm
6 Component handling User manual SIPLACE X-Series
6.2 SIPLACE X-series component trolley Software Version SR.601.xx 11/2005 US Edition
314
6.2.7 Tape container, SIPLACE X-series
6.2.7.1 Description
The tape container can hold reels up to 19" (483 mm) in diameter. You should use spindles to
process reels of 15" (381 mm) diameter or more. The use of separating plates is described in sec-
tion 5.3.6
on page 255.
6

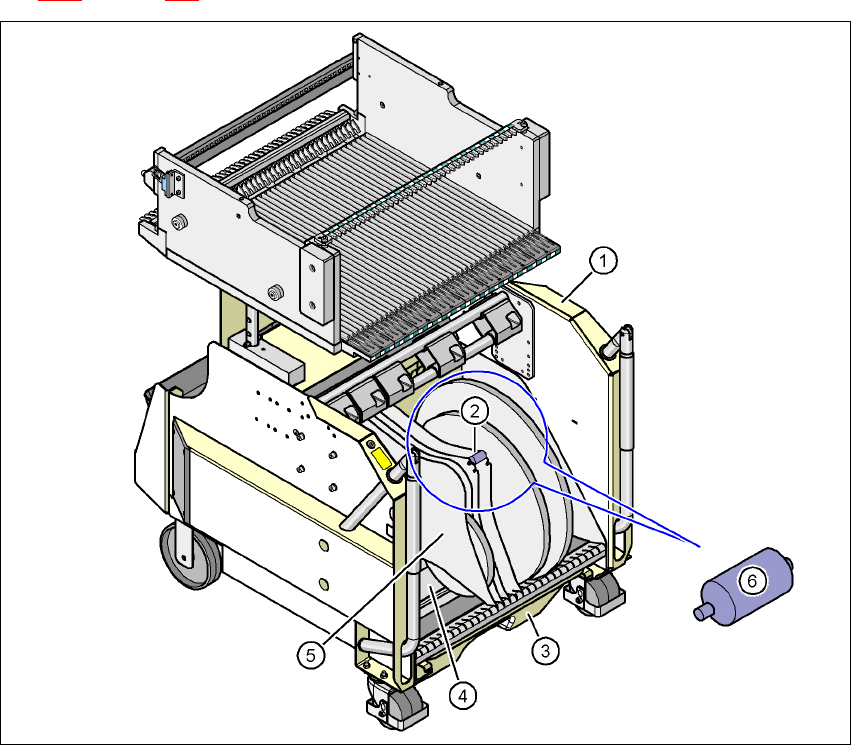

Fig. 6.2 - 9 Component trolley, SIPLACE X-series, with tape container
(1) Component trolley
(2) Position of the spindles
(3) Waste tape container
(4) Tape container
(5) Separating plate
(6) Spindle (enlarged)
