6.2.7.2 Maximum tape reel diameter in relation to the PCB conveyor height
6
PLEASE NOTE 6
For optimum operation, we recommend the use of spindles for 15" (381 mm) diameter or more.
Without mount for the
additional tape reel
With mount for the additional tape reel
PCB conveyor height of
the component trolley
Tape reel diameter Tape reel diameter
without spindle with spindle
830 mm 17" 15" < 15"
900 mm 19" 17" 15"
930 mm 19" 19" 17"
950 mm 19" 19" 19"
6 Component handling User manual SIPLACE X-Series
6.3 Used tape chute, SIPLACE X-series Software Version SR.601.xx 11/2005 US Edition
316
6.3 Used tape chute, SIPLACE X-series
6
Fig. 6.3 - 1 Used tape chute for the component trolley docking unit from the SIPLACE X-series
Depending on the PCB conveyor height, the length of the used tape chute can be set so that the
pieces of tape are diverted directly into the reject bin of the component trolley.
PLEASE NOTE 6
The used tape chute for the X-series can only be installed on the component trolley docking unit
for the X-series (see Fig. 5.10 - 3, page 278).
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.4 Used tape channel - CO trolley docking unit, SIPLACE X-series
317
6.4 Used tape channel - CO trolley docking unit,
SIPLACE X-series
6.4.1 Separating plate for tape pocket heights up to 12 mm
In the standard version, the used tape channel can guide component tapes with a maximum
pocket height of 12 mm to the pneumatic tape cutter.
6

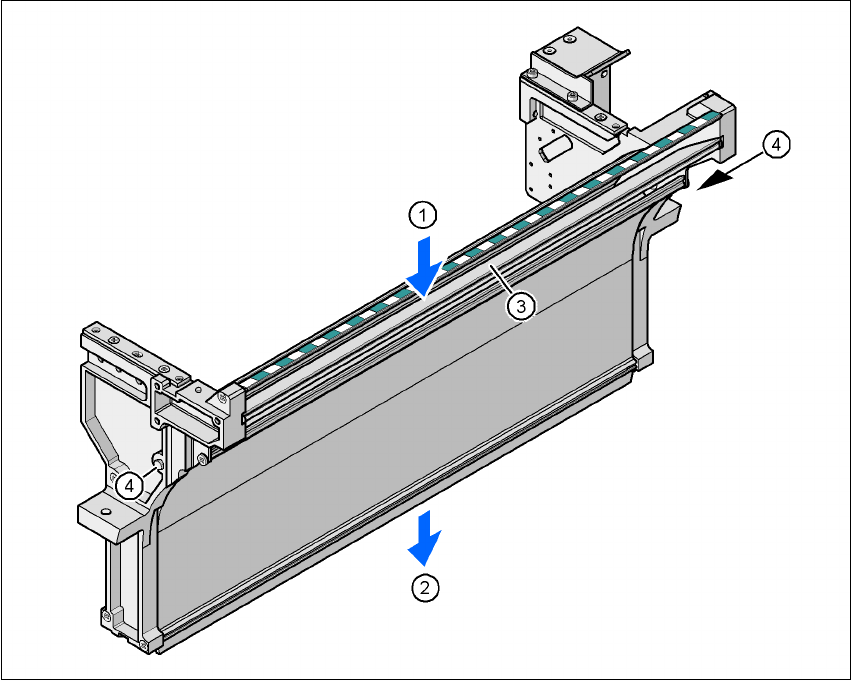

Fig. 6.4 - 1 Used tape chute, SIPLACE X-series
(1) Inlet slot for the used tapes
(2) Outlet slot for the used tape above the pneumatic tape cutter
(3) Dividing plate for tapes < 12 mm (can be removed for tapes > 12 mm)
(4) DIN 93384 screw - M4x20, 2x
