The basic tasks of the docking station are as follows:
– Supplying the component trolley and X feeder modules with power
– Supplying the component trolley and X feeder modules with compressed air
– Providing an infrastructure for communication between the PC at the set-up area and the
feeder modules
6.5.2 Description of the functions
The operator can use the docking station to carry out function tests on the X feeder modules and
check the set-up outside the production environment. Two rows, each with four docking stations,
are connected via the CAN bus of the initial set-up PC. Each docking station has a separate power
and compressed air connection.
The component trolley docking unit (item 2 in Fig. 6.5 - 1
) of the docking station can be adapted
to the desired PCB conveyor height. For the initial set-up, the component trolley is pushed into the
docking station (item 1 in Fig. 6.5 - 1
). The component trolley slides on the rails of the component
trolley docking unit, using the roller bearings attached to the sides of the component trolley, to the
energy and data interface connection. The component table is positioned with the EDIF of the
feeder modules optimally with respect to the EDIF (item 4 in Fig. 6.5 - 1
) of the component trolley
docking station, and is fixed in this position with the two horizontal tensioners.
6.5.3 Technical data
6
Dimensions
Length x width 950 mm x 930 mm
Height 794 mm for 830 mm PCB transport height
864 mm for 900 mm PCB transport height
894 mm for 930 mm PCB transport height
914 mm for 950 mm PCB transport height
Weight 120 kg
Compressed air pressure
p
min
p
max
0.5 MPa (5.0 bar)
1.0 MPa (10.0 bar)
Compressed air connection Coupler plug KS 2-M5-A
Compressed air consumption 50 l/min.
Supply voltage 88 - 264 VAC
Rated current 3.5 A (230 VAC)
7 A (115 VAC)
Nominal apparent power 0.8 kW
Fuses 2 x 8 A
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.5 Docking station for the component trolley from the SIPLACE X-series
321
6

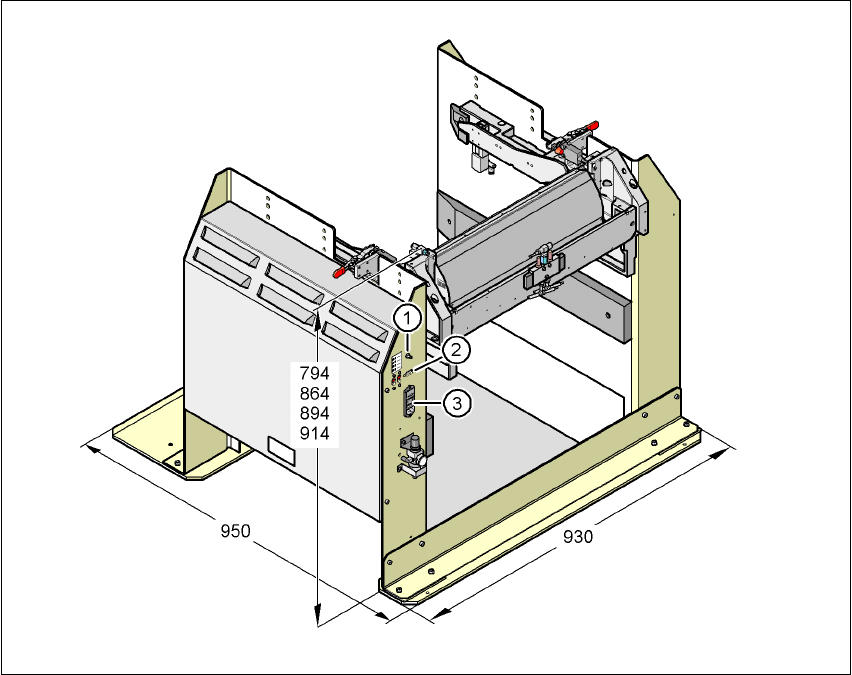

Fig. 6.5 - 2 Docking station - Dimensions in millimeters, connection points
(1) Compressed air connection
(2) CAN bus connection
(3) Power supply connection
6 Component handling User manual SIPLACE X-Series
6.5 Docking station for the component trolley from the SIPLACE X-series Software Version SR.601.xx 11/2005 US Edition
322
6.5.4 Adapting the component trolley docking unit to the PCB conveyor height
The X-series component trolley docking unit can be set to the following PCB conveyor heights with
just a few simple actions:
830 mm ± 15 mm Standard height
900 mm ± 15 mm SMEMA height
930 mm ± 15 mm SMEMA height
950 mm ± 15 mm SMEMA height
6

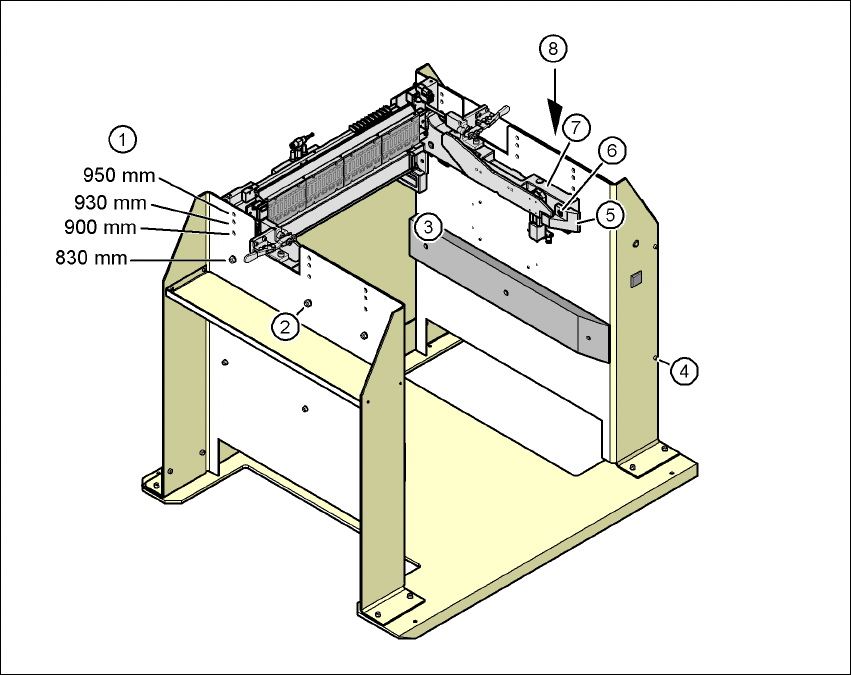

Fig. 6.5 - 3 Adapting the component trolley docking unit to the PCB conveyor heights
(1) Holes for the PCB conveyor height
(2) Hexagonal nut M8 and washer, 6x
(3) Hexagon socket head screw M8x40, 6x
(4) Hexagon socket head screw M5x12, 4x
(5) Guide
(6) Hexagon socket head screw M8x18, 2x
(7) Component trolley docking unit
(8) Panel
