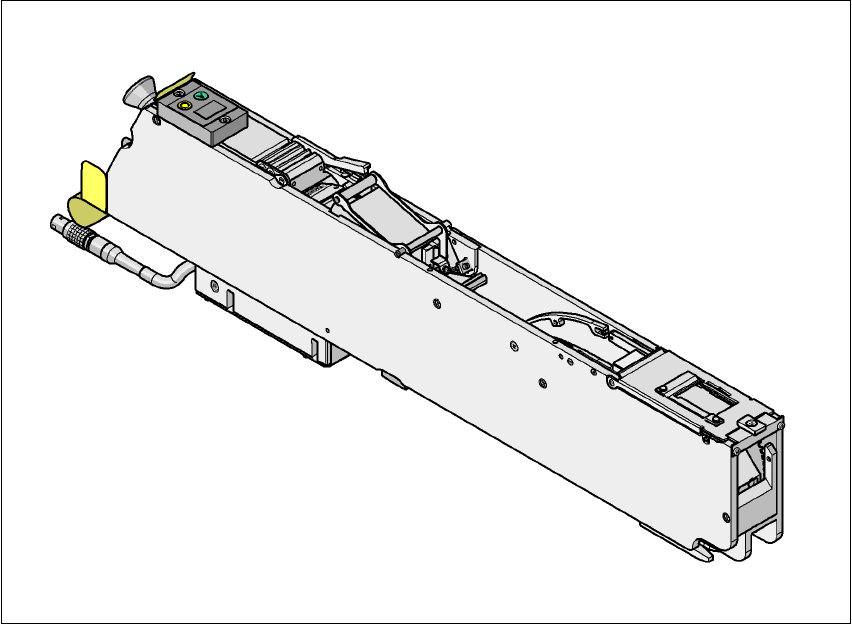

6.6.2.4 Tape feeder module 12/16 mm S
Fig. 6.6 - 4 Tape feeder module 12/16 mm S
Item no. 00141092-xx 6
Width 30.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1 6
Maximum number of feeder modules 4 x 15 6
Stock of components for 7" reels approx. 4,000 6
Conveyor increment from 4mm to 24 mm in 4 mm increments 6
6 Component handling User manual SIPLACE X-Series
6.6 S feeder modules for the SIPLACE HF component trolley Software Version SR.601.xx 11/2005 US Edition
334

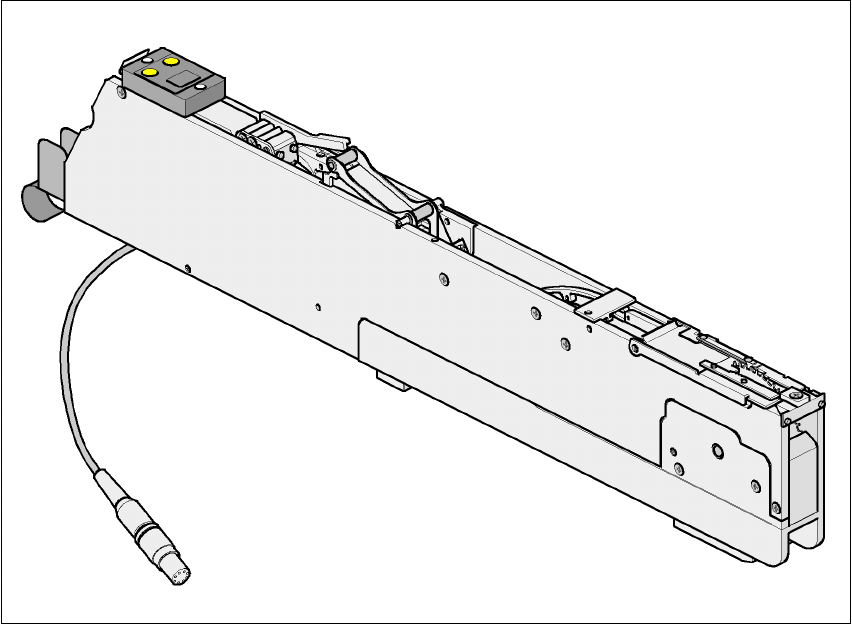

6.6.2.5 Tape feeder module 24/32 mm S
Fig. 6.6 - 5 Tape feeder module 24/32 mm S
Item no. 00141093-xx 6
Width 42.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1.5 6
Maximum number of feeder modules 4 x 10 6
Stock of components for 7" reels approx. 2,000 6
Conveyor increment from 4mm to 40 mm in 4 mm increments 6
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.6 S feeder modules for the SIPLACE HF component trolley
335

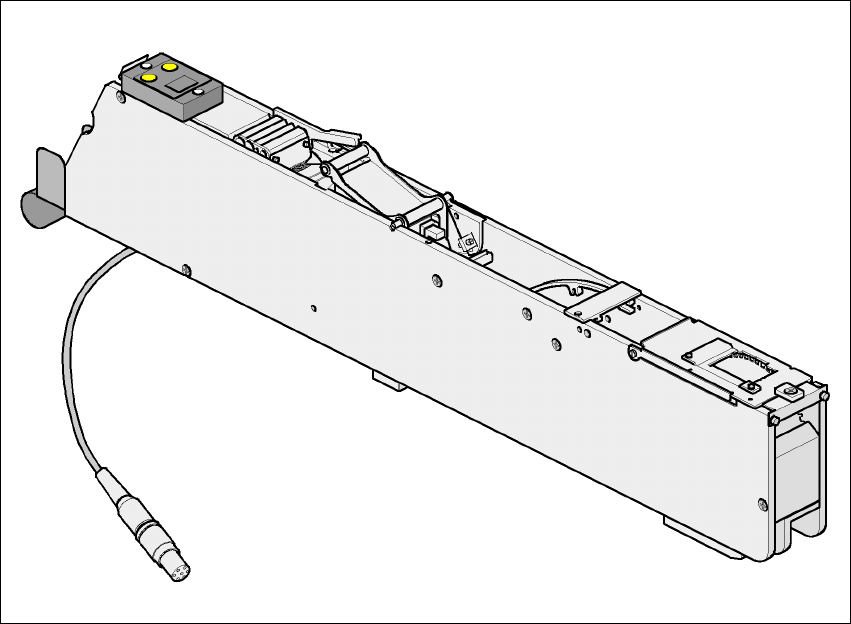

6.6.2.6 Tape feeder module 24/32 mm S DP for deep pockets
Fig. 6.6 - 6 Tape feeder module 24/32 mm S DP for deep pockets
Item no. 00141193-xx 6
Width 42.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1.5 6
Maximum number of feeder modules 4 x 10 6
Tape height up to 25 mm 6
Conveyor increment from 4mm to 40 mm in 4 mm increments 6
