User manual SIPLAC E X-Series 6 Component han dling Software Version SR.601.xx 11/2005 US Edition 6.6 S feeder modules for the SIPLACE HF component trolley 337 6.6.2.8 T ape feeder module 44 mm S D P for deep pocket s Fi…
6 Component handling User manual SIPLACE X-Series
6.6 S feeder modules for the SIPLACE HF component trolley Software Version SR.601.xx 11/2005 US Edition
336
6.6.2.7 Tape feeder module 44 mm S

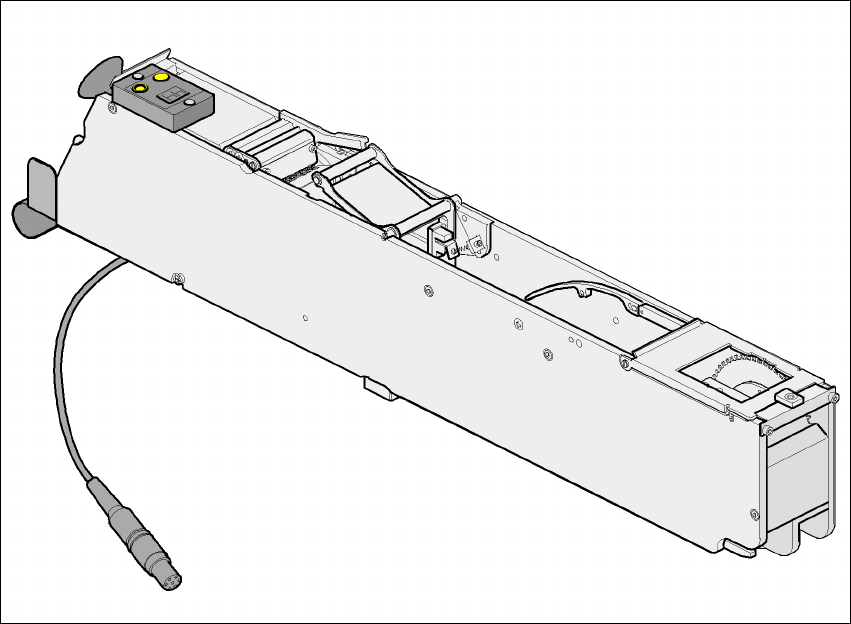

Fig. 6.6 - 7 Tape feeder module 44 mm S
Item no. 00141094-xx 6
Width 54.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 2 6
Maximum number of feeder modules 4 x 7 6
Stock of components for 7" reels approx. 2,000 6
Conveyor increment from 4mm to 52 mm in 4 mm increments 6
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.6 S feeder modules for the SIPLACE HF component trolley
337
6.6.2.8 Tape feeder module 44 mm S DP for deep pockets

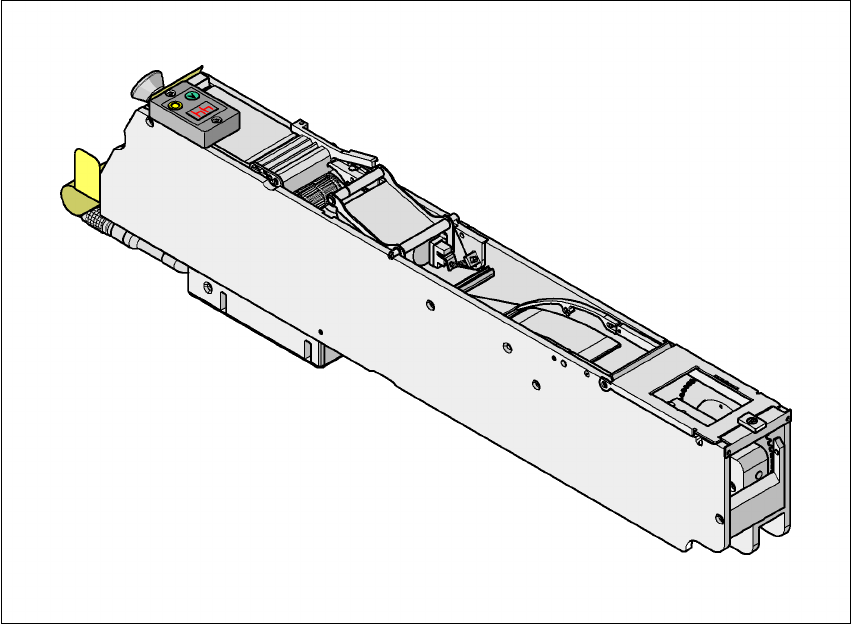

Fig. 6.6 - 8 Tape feeder module 44 mm S DP for deep pockets
Item no. 00141194-xx 6
Width 54.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 2 6
Maximum number of feeder modules 4 x 7 6
Tape height up to 25 mm 6
Conveyor increment from 4mm to 52 mm in 4 mm increments 6
6 Component handling User manual SIPLACE X-Series
6.6 S feeder modules for the SIPLACE HF component trolley Software Version SR.601.xx 11/2005 US Edition
338
6.6.2.9 Tape feeder module 56 mm S
6

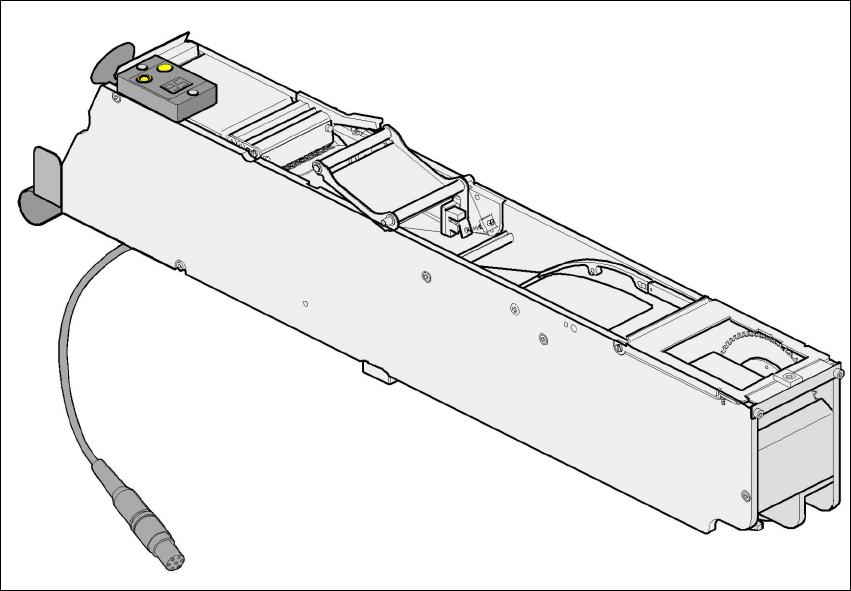

Fig. 6.6 - 9 Tape feeder module 56 mm S
6
Item no. 00141095-xx 6
Width 66.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 2.5 6
Maximum number of feeder modules 4 x 6 6
Stock of components for 7" reels approx. 2,000 6
Conveyor increment from 4mm to 68 mm in 4 mm increments 6
