User manual SIPLACE X-Series 2 Operational safety
Software Version SR.601.xx 11/2005 US Edition 2.2 Warning labels
33
2.2 Warning labels
2.2.1 Warning labels W201, W203, W204 and W210 on the machine
The warning labels are made from soft PVC film, and are abrasion-proof, light-fast and resistant
to water and weathering. Their design meets the requirements of ISO 3864-2 and ANSI Z535.4.

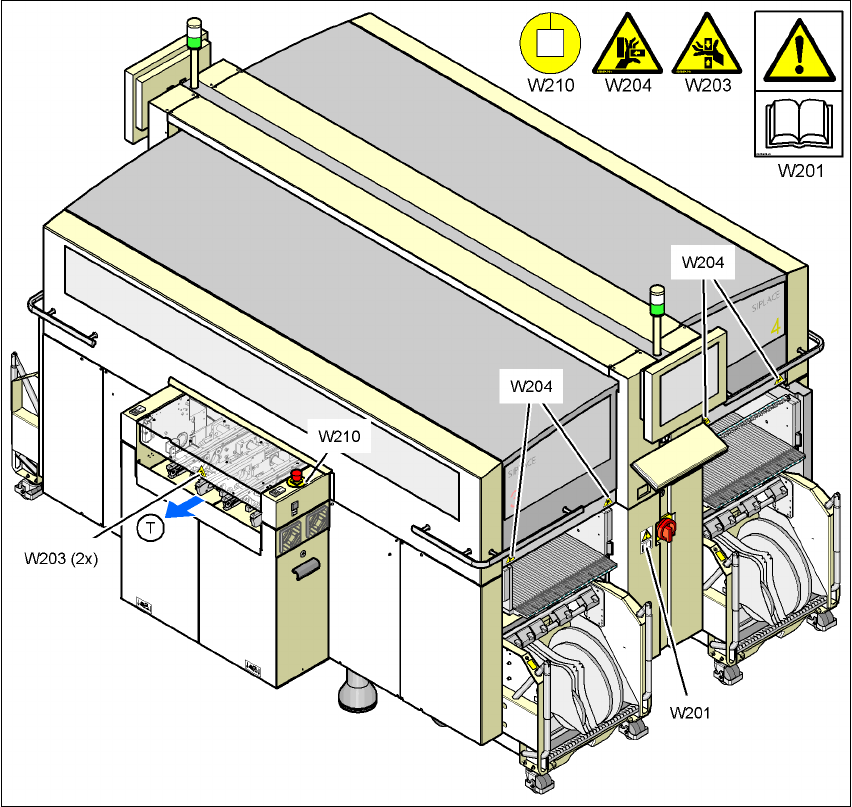

Fig. 2.2 - 1 Warning labels W201, W203, W204 and W210 on the placement system - part 1
Pos. W201, item no. 03009338-01
Pos. W203, item no. 03009342-01
Pos. W204, item no. 03009343-01
Pos. W210, item no. 03009350-01
(T) PCB direction of travel
2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels Software Version SR.601.xx 11/2005 US Edition
34
Fig. 2.2 - 2 Warning labels W203, W204 and W210 on the placement system - part 2
Pos. W203, item no. 03009342-01
Pos. W204, item no. 03009343-01
Pos. W210, item no. 03009350-01
(T) PCB direction of travel
WARNING 2
– Do not use abrasive cleaners or solvents for cleaning warning labels.
– Replace any damaged or illegible warning labels.
User manual SIPLACE X-Series 2 Operational safety
Software Version SR.601.xx 11/2005 US Edition 2.2 Warning labels
35
2.2.1.1 Warning label W201
2
Pos. W201 in Fig. 2.2 - 1, item no. 03009338-01 (number per placement system: 1)
2.2.1.2 Warning label W203
2
Pos. W203 in Figs. 2.2 - 1 and 2.2 - 2, item no. 03009342-01 (number per placement system: 4)
2.2.1.3 Warning label W204
2
Pos. W204 in Figs. 2.2 - 1 and 2.2 - 2, item no. 03009343-01 (number per placement system: 8)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
SAFE OPERATION OF THE MACHINE
Safe operation of the machine depends absolutely on
the operator being familiar with the user manual and
safety instructions and putting them into effect.
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the machine while it is running
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the machine while it is running
