User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.7 SIPLACE HF component trolleys
351
CAUTION 6
The component trolleys from the SIPLACE HF may only be docked into locations at which the
component trolley docking unit for the SIPLACE HF is installed (Fig. 5.10 - 6, page 281).
The component changeover tables are stand-alone modules that can be set up with feeders at an
external set-up area. This means that the production process only has to be interrupted briefly in
order to change the component trolley.
PLEASE NOTE:
At external set-up positions, you will need an external power supply for the component trolley
(see section 6.7.5, page 357).
Fig. 6.7 - 2 SIPLACE HF component trolley with a PCB conveyor height of 950 mm
6
(1) Holes in the guide columns for the transport heights of 830 to 950 mm
(2) Component trolley table
6 Component handling User manual SIPLACE X-Series
6.7 SIPLACE HF component trolleys Software Version SR.601.xx 11/2005 US Edition
352
The design places considerable emphasis on ergonomics and safe operation.
– The trolleys move easily.
– No cables have to be plugged in to supply the component trolleys with power and compressed
air. The same applies to the communication interface.
– The component trolley is docked in/out the machine using a docking unit. A description of this
device can be found in chapter 5
, section 5.10, from page 275 onward. It is integrated into the
safety, supply and communication circuit or is disconnected from this circuit. Electronic prox-
imity switches signal whether the component trolley has been docked in correctly.
– The component trolley is fixed so precisely to the placement machine that it is even suitable
for processing 0201 components.
– The component trolley can be adjusted to PCB transport heights of 830 mm, 900 mm, 930 mm
and 950 mm in just a few simple actions.
– The tape container can hold tape reels with a diameter of up to 15" (optional up to 19").
– Every component trolley has a unique identification number.
User manual SIPLACE X-Series 6 Component handling
Software Version SR.601.xx 11/2005 US Edition 6.7 SIPLACE HF component trolleys
353
6.7.1 Structure of the SIPLACE HF component trolley
The component trolley essentially consists of the chassis, the component table for holding the
feeder modules, the communication unit, tape reel container and the waste container.

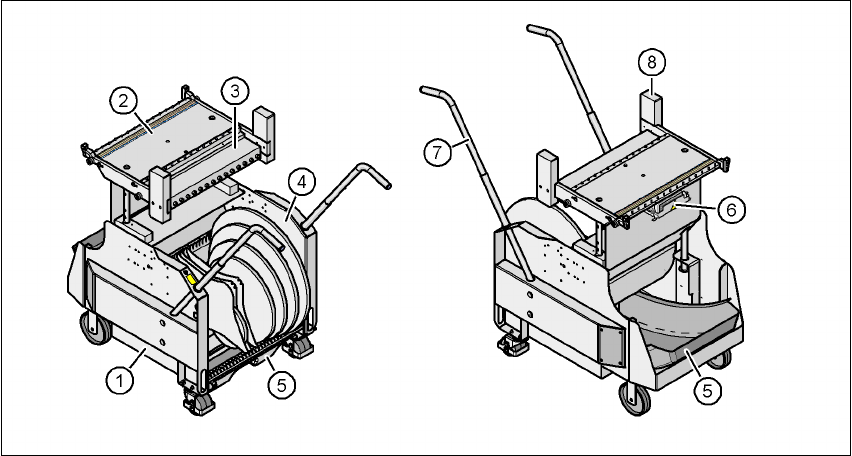

Fig. 6.7 - 3 SIPLACE HF component trolley - front and back view
(1) Chassis
(2) Component feeder table
(3) Communication unit
(4) Tape reel container
(5) Waste tape container
(6) Interface for the main power supply, communication, the safety circuit and the compressed
air supply for the bulk case feeder module
(7) Handle
(8) Hand guard
