7.1.1.2 Position of the nozzle changers for the C&P20 head on the X3 machine
1 or 2 nozzle changers may be installed at locations 1, 3, and 4 for the 20 segment Collect&Place
head (items 1 and 2 in Fig. 7.1 - 3
). One nozzle changer may be installed at location 2. This gives
a total capacity of 7 nozzle changers with 42 magazines and a total of 504 nozzle holders.
7

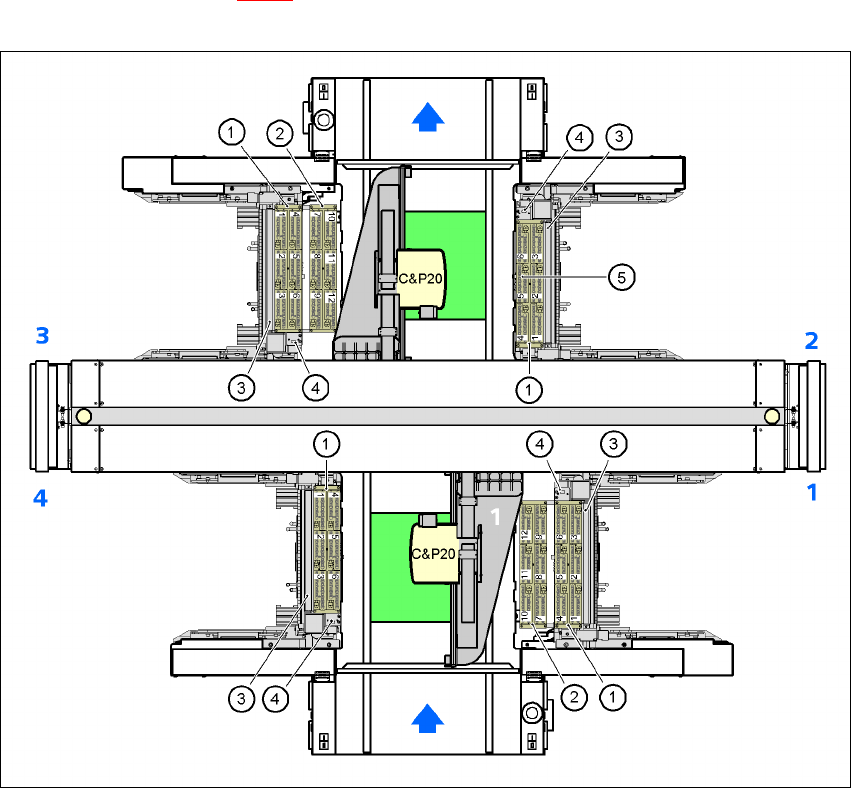

Fig. 7.1 - 3 Position of the nozzle changer for the 20-segment Collect&Place head on the X3 machine
7
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
7 Station extensions User manual SIPLACE X-Series
7.1 Nozzle changer Software Version SR.601.xx 11/2005 US Edition
374
7.1.1.3 Position of the nozzle changers for the C&P20 head on the X2 machine
1 or 2 nozzle changers may be installed at locations 1, 3, and 4 for the 20 segment Collect&Place
head (items 1 and 2 in Fig. 7.1 - 3
). One nozzle changer may be installed at location 2. This gives
a total capacity of 6 nozzle changers with 36 magazines and a total of 432 nozzle holders.
7
Fig. 7.1 - 4 Position of the nozzle changer for the 20-segment Collect&Place head on the X2 machine
7
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
User manual SIPLACE X-Series 7 Station extensions
Software Version SR.601.xx 11/2005 US Edition 7.1 Nozzle changer
375
7.1.1.4 Technical data
7
7.1.1.5 Assembly
"Row 1" nozzle changers (see Figs. 7.1 - 3, 7.1 - 2 and 7.1 - 4) are each fixed to the component
trolley docking unit. There is an additional assembly kit for the "row 2" nozzle changer. This kit
consists of the take-off device and the nozzle reject bin (see section 7.1.1.10
).
7
Fig. 7.1 - 5 Assembly position
(1) Sloping side points towards the component trolley docking unit
(2) Vertical side points towards the PCB conveyor
Æ Align the nozzle changer so that the sloping side points towards the component trolley dock-
ing unit.
Nozzle changer for the 20-segment Collect&Place head
Dimensions (length x width x height) 449 x 94,5 x 79 mm³
Number of nozzle holders 72
Nozzle types 10xx, 11xx and 12xx
Time required to open and close the locking plate < 200 ms
Compressed air connection 0.48 MPa (4.8 bar)
