User manual SIPLAC E X-Series 7 Station extensions Software Vers ion SR.601.xx 11/ 2005 US Ed ition 7.1 Nozzle changer 379 W ARNING 7 Any lev er that i s protruding over the magazine (item 1 in Fig. 7.1 - 7 ) can r esult…
7 Station extensions User manual SIPLACE X-Series
7.1 Nozzle changer Software Version SR.601.xx 11/2005 US Edition
378
7.1.1.7 Notes on operation
Æ When you fill a magazine with a certain nozzle type for the first time, attach an adhesive label
to identify the type.
PLEASE NOTE 7
Fill the magazines off the machine and always replace complete magazines. 7
Æ Open the locking plate and place the nozzles in the nozzle holders.
Æ Close the locking plate so that the nozzles cannot drop out of the magazines.
CAUTION 7
Before you fill magazine, make sure that all the nozzles on the Collect&Place head have
been returned to their magazines. 7
PLEASE NOTE 7
Do not allow components to drop onto the magazines. If they do, they could jam the locking
plate. You should therefore regularly clean the magazines and free locations.
Æ Programming the nozzle changer is described in the SIPLACE Pro user manual.
7.1.1.8 Changing the magazine
Æ Press the lever (item 1 in Fig. 7.1 - 7, page 374) to release the magazine from the balls of
the snap fasteners (item 5 in Fig. 7.1 - 7
). Lift the magazine off the base.
User manual SIPLACE X-Series 7 Station extensions
Software Version SR.601.xx 11/2005 US Edition 7.1 Nozzle changer
379
WARNING 7
Any lever that is protruding over the magazine (item 1 in Fig. 7.1 - 7
) can result in a head crash.
You should therefore make sure that the lever does not protrude over the magazines.
7

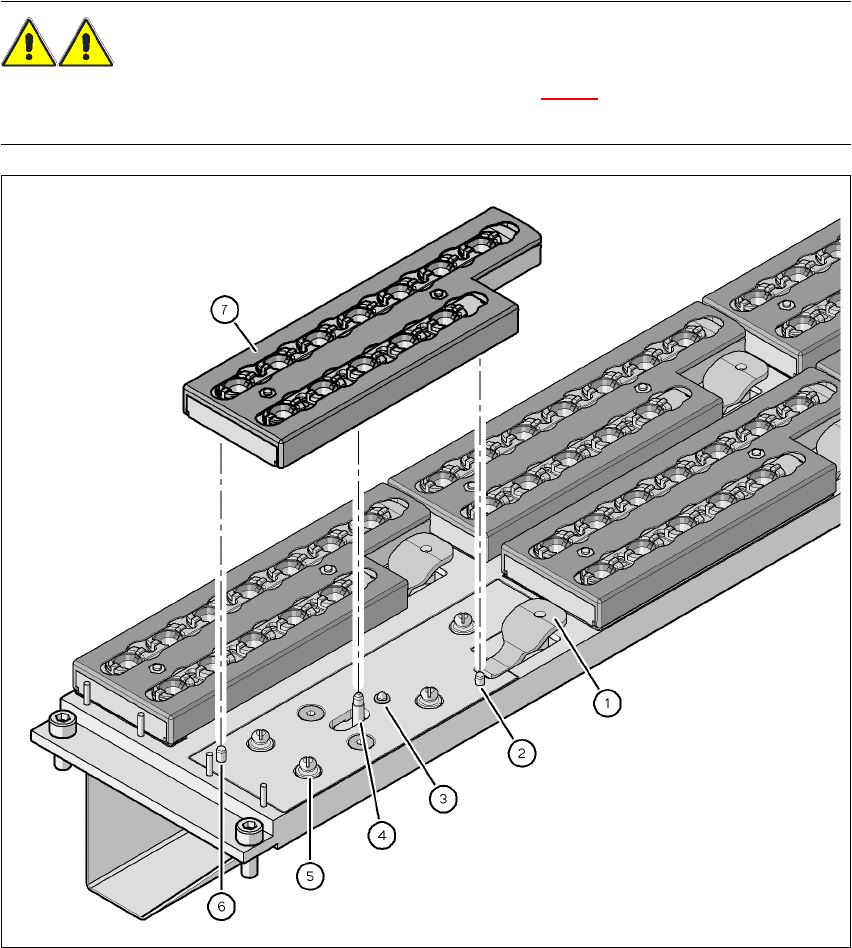

Fig. 7.1 - 7 Changing the magazine
(1) Lever for raising the magazine
(2) Parallel pin, engages in the hole in the magazine
(3) Spring pin for triggering the microswitch
(4) Pin of the slide mechanism, moves the locking plate
(5) Ball of snap fastener
(6) Parallel pin, engages in the slot in the magazine
(7) Locking plate in the "Magazine locked" position
7 Station extensions User manual SIPLACE X-Series
7.1 Nozzle changer Software Version SR.601.xx 11/2005 US Edition
380
PLEASE NOTE 7
– Move the locking plate into the "Magazine locked" position.
– Before inserting, align the magazine so that the centering pins (item 2 and 6 in Fig. 7.1 - 7
)
slide into the centering holes and slot (item 6 in Fig. 7.1 - 6).
Æ Place the magazine on the snap fastener balls (item 5 in Fig. 7.1 - 7).
Æ Press the magazine down evenly so that the snap fastener balls engage in all the snap fas-
teners at the same time.
7.1.1.9 Position detection
Each magazine of the nozzle changer has two fiducials: one for determining the position and one
for determining the angular position.
7

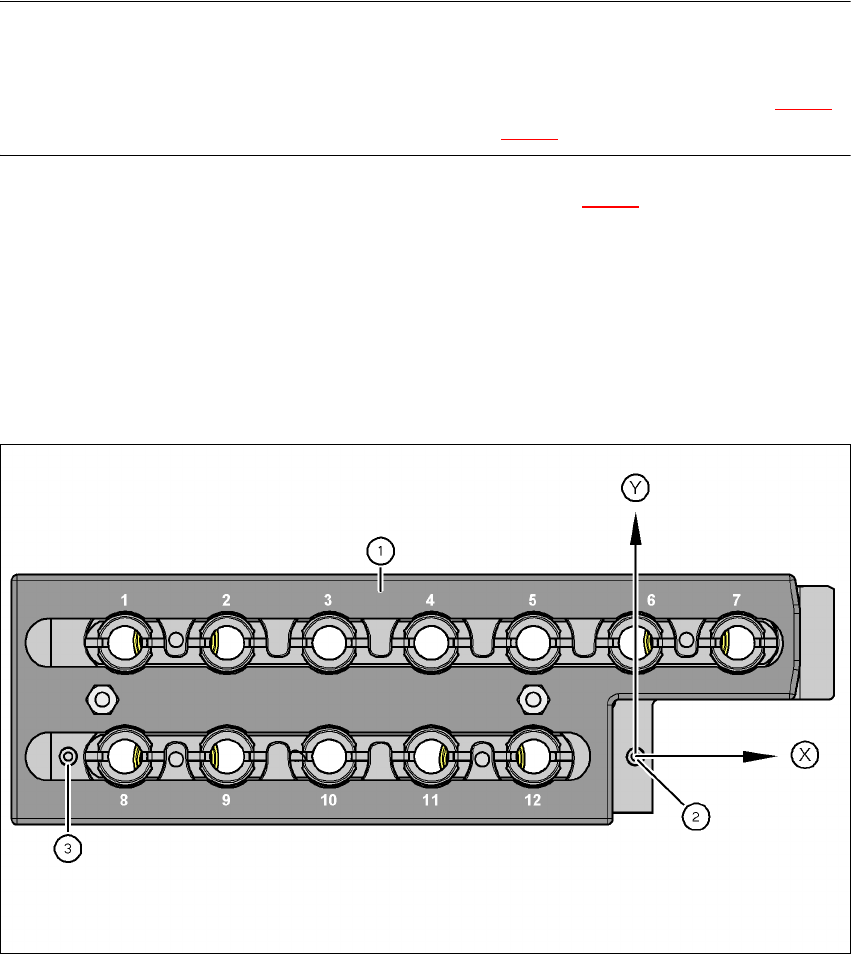

Fig. 7.1 - 8 Nozzle magazine - holder numbering, fiducials for determining the position and angular position
(1) Locking plate in the "Magazine open" position
(2) Fiducial for determining the position
(3) Fiducial for determining the angular position
