User manual SIPLACE X-Series 7 Station extensions
Software Version SR.601.xx 11/2005 US Edition 7.1 Nozzle changer
381
7.1.1.10 "Row 2" nozzle changers for the 20-segment Collect&Place head
Item no. 00119716-xx
The "row 2" nozzle changer may be installed at the following locations:
X4 placement machine: Locations 1, 2, 3 and 4 (see Fig. 7.1 - 2
, page 372)
X3 placement machine: Locations 1, 3 and 4 (see Fig. 7.1 - 3
, page 373)
X2 placement machine: Locations 1 and 3 (see Fig. 7.1 - 4
, page 374)
The retrofit package contains an assembly kit.
7

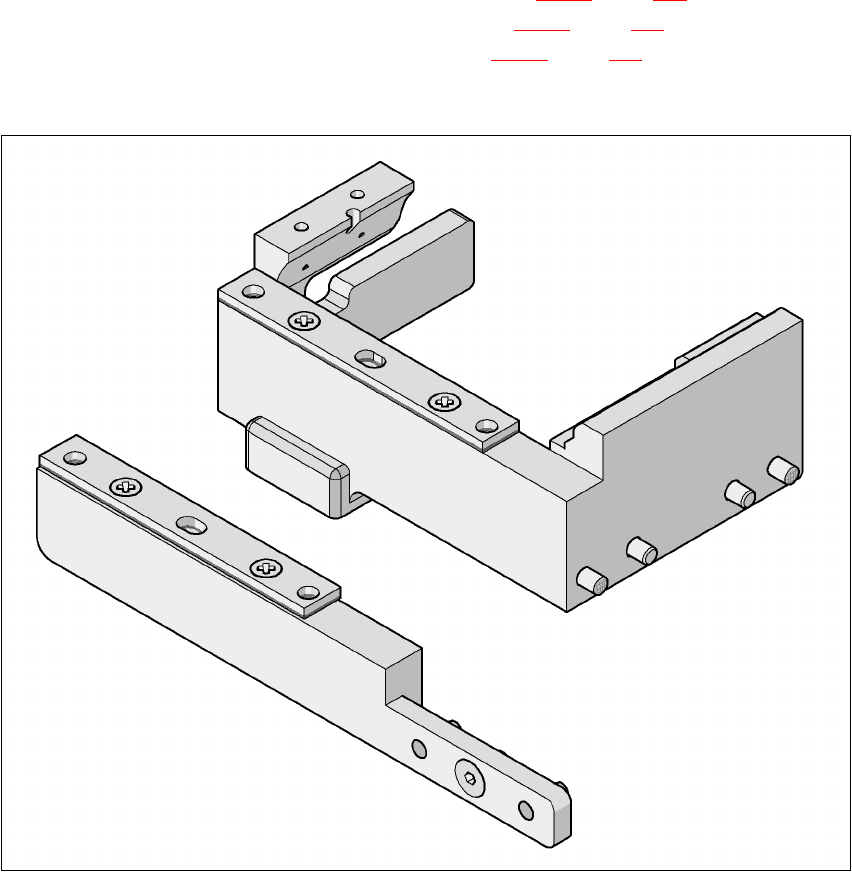

Fig. 7.1 - 9 Assembly kit for the "row 2" nozzle changer
7
7
7 Station extensions User manual SIPLACE X-Series
7.1 Nozzle changer Software Version SR.601.xx 11/2005 US Edition
382
7.1.2 Nozzle changer for the 12-segment Collect&Place head
Item no. 00119661-xx
This nozzle changer can hold up to 5 magazines, each with 12 nozzle holders. The magazines
are seated on a common support. They are centered using two parallel pins and fixed in place with
clips.
7

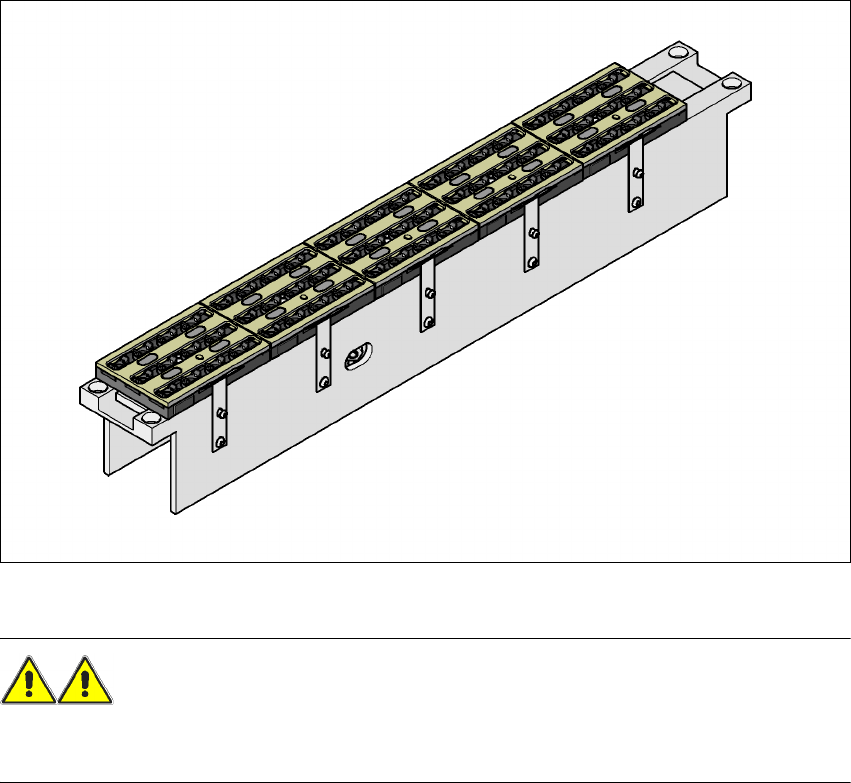

Fig. 7.1 - 10 Nozzle changer for the 12-segment Collect&Place head
WARNING 7
Only install the associated nozzle changer for each placement head. There is a risk of head
crashes with mixed configurations.
User manual SIPLACE X-Series 7 Station extensions
Software Version SR.601.xx 11/2005 US Edition 7.1 Nozzle changer
383
7.1.2.1 Position of the nozzle changers for the C&P12 head on the X4 machine
1 or 2 nozzle changers may be installed at locations 1, 2, 3, and 4 for the 12-segment Col-
lect&Place head (items 1 and 2 in Fig. 7.1 - 11
). This gives a total capacity of 8 nozzle changers
with 40 magazines and a total of 480 nozzle holders.
7
Fig. 7.1 - 11 Position of the nozzle changer for the 12-segment Collect&Place head on the X4 machine
7
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
