User manual SIPLAC E X-Series 2 Operational safety Software Vers ion SR.601.xx 11/ 2005 US Ed ition 2.2 Warning labels 39 2.2.3 W arning label W205 on the t a pe cutter 2 Pos. W2 05 in Fi gs. 2.2 - 4 , 2.2 - 5 and 2.2 - …
2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels Software Version SR.601.xx 11/2005 US Edition
38
2
Pos. W202 in Fig. 2.2 - 3, item no. 03009341-01
(number per X2 placement machine: 6, X3 placement machine: 7, X4 placement machine: 8)
WARNING 2
Powerful permanent magnetic fields inside the machine
DANGER 2
Risk of death for persons with active implants (e.g. pacemakers, insulin pumps, defibrillators).
2
WARNING
Danger of crushing for persons with passive metal implants (e.g. plates, screws).
Do not reach into the machine or bend towards it when the protective covers are open.
Do not bring any metal objects into the area.
User manual SIPLACE X-Series 2 Operational safety
Software Version SR.601.xx 11/2005 US Edition 2.2 Warning labels
39
2.2.3 Warning label W205 on the tape cutter
2
Pos. W205 in Figs. 2.2 - 4, 2.2 - 5 and 2.2 - 6,
item no. 03009344-01 (number per placement system: 16)
2.2.3.1 Warning label W205 on the top
2
Fig. 2.2 - 4 Warning label W205 on the top of the tape cutter
WARNING 2
If you wish to do work on the tape cutter, you must disconnect the machine from the mains supply
and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter. 2
2
2
2
2
2
2
2
2
RISK OF CUTTING!
Danger of cutting is present even when the
machine is switched off
2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels Software Version SR.601.xx 11/2005 US Edition
40
2.2.3.2 Warning label W205 on the underside of the component trolley docking unit
(HF-series)
2

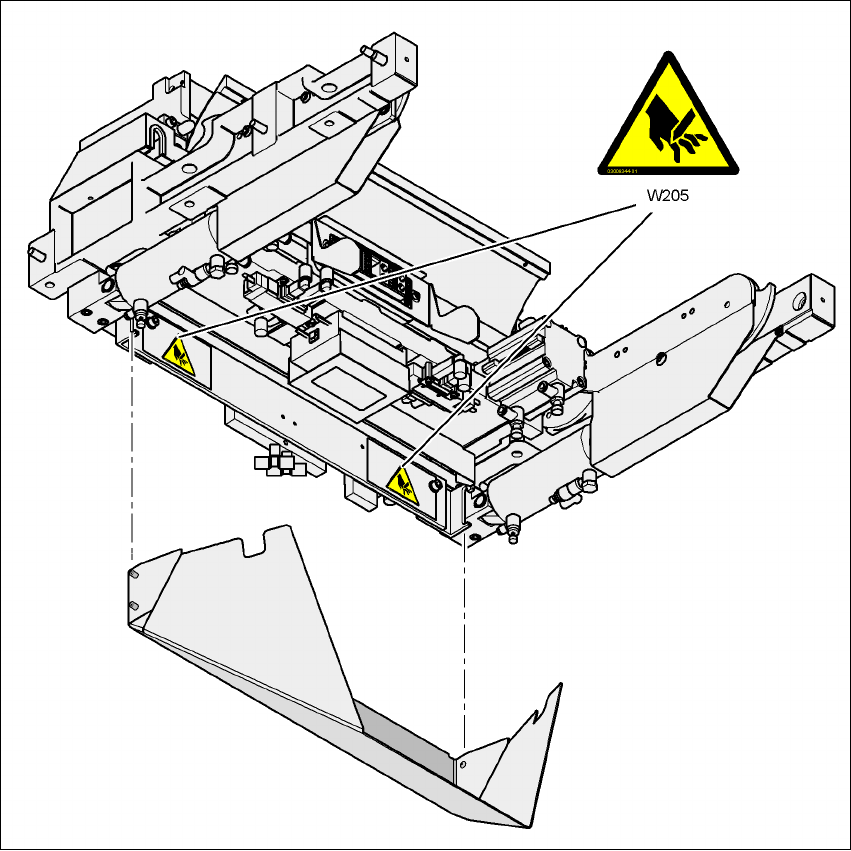

Fig. 2.2 - 5 Warning label W205 on the bottom of the tape cutter
