7 Station extensions User manual SIPLACE X-Series
7.1 Nozzle changer Software Version SR.601.xx 11/2005 US Edition
394
7.1.3.1 Position of the nozzle changers for the C&P6 head on the X4 machine
1 or 2 nozzle changers may be installed at locations 1, 2, 3, and 4 for the 6-segment Collect&Place
head (items 1 and 2 in Fig. 7.1 - 20
). One nozzle changer may be installed at location 2. This gives
a total capacity of 8 nozzle changers with 48 magazines and a total of 288 nozzle holders.
7

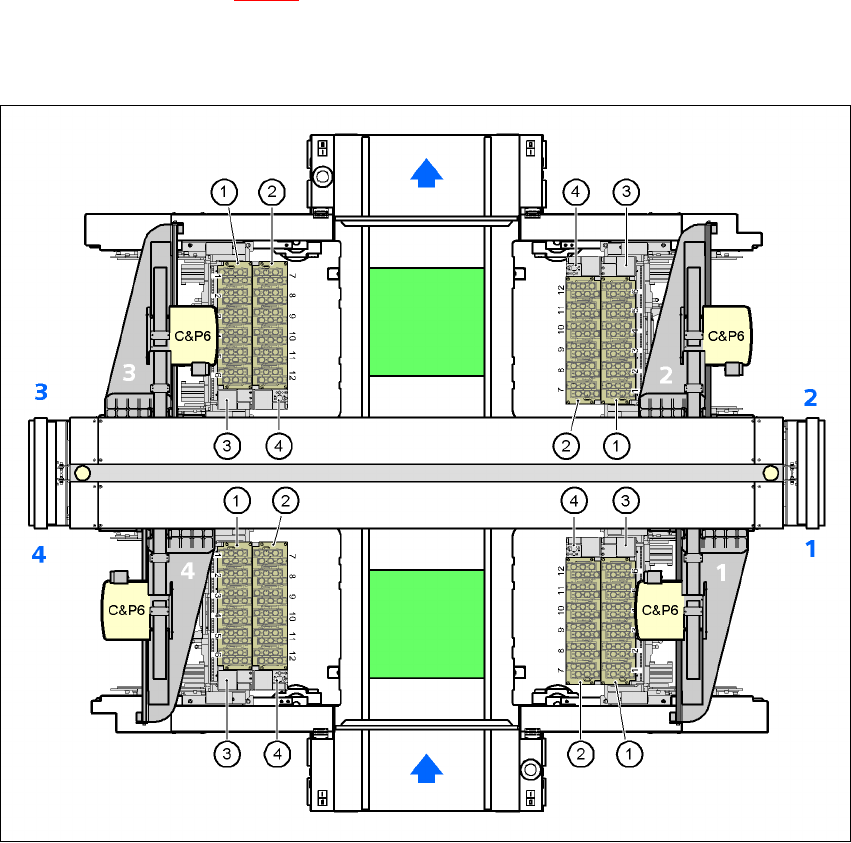

Fig. 7.1 - 20 Position of the nozzle changers for the C&P6 head on the X4 machine
(1) "Row 1" nozzle changer
(2) "Row 2" nozzle changer
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
User manual SIPLACE X-Series 7 Station extensions
Software Version SR.601.xx 11/2005 US Edition 7.1 Nozzle changer
395
7.1.3.2 Position of the nozzle changers for the C&P6 head on the X3 machine
1 or 2 nozzle changers may be installed at locations 1, 3, and 4 for the 6-segment Collect&Place
head (items 1 and 2 in Fig. 7.1 - 21
). One nozzle changer may be installed at location 2. This gives
a total capacity of 7 nozzle changers with 42 magazines and a total of 252 nozzle holders.
7

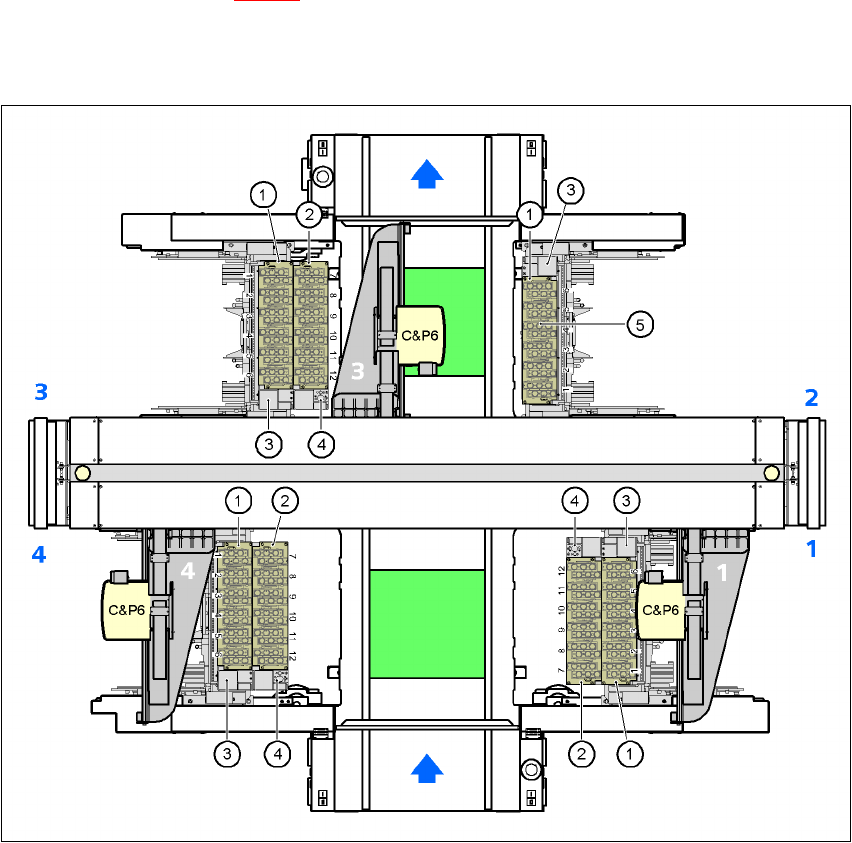

Fig. 7.1 - 21 Position of the nozzle changers for the C&P6 head on the X3 machine
(1) "Row 1" nozzle changer
(2) "Row 2" nozzle changer
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
7 Station extensions User manual SIPLACE X-Series
7.1 Nozzle changer Software Version SR.601.xx 11/2005 US Edition
396
7.1.3.3 Position of the nozzle changers for the C&P6 head on the X2 machine
1 or 2 nozzle changers may be installed at locations 1 and 3 for the 6 segment Collect&Place head
(items 1 and 2 in Fig. 7.1 - 22
). A nozzle changer may be installed at locations 2 and 4. This gives
a total capacity of 6 nozzle changers with 36 magazines and a total of 216 nozzle holders.
7
Fig. 7.1 - 22 Position of the nozzle changers for the C&P6 head on the X2 machine
(1) "Row 1" nozzle changer
(2) "Row 2" nozzle changer
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
7
