7.1.3.9 Position detection
Every magazine of the nozzle changer has a positioning fiducial for position detection.
7

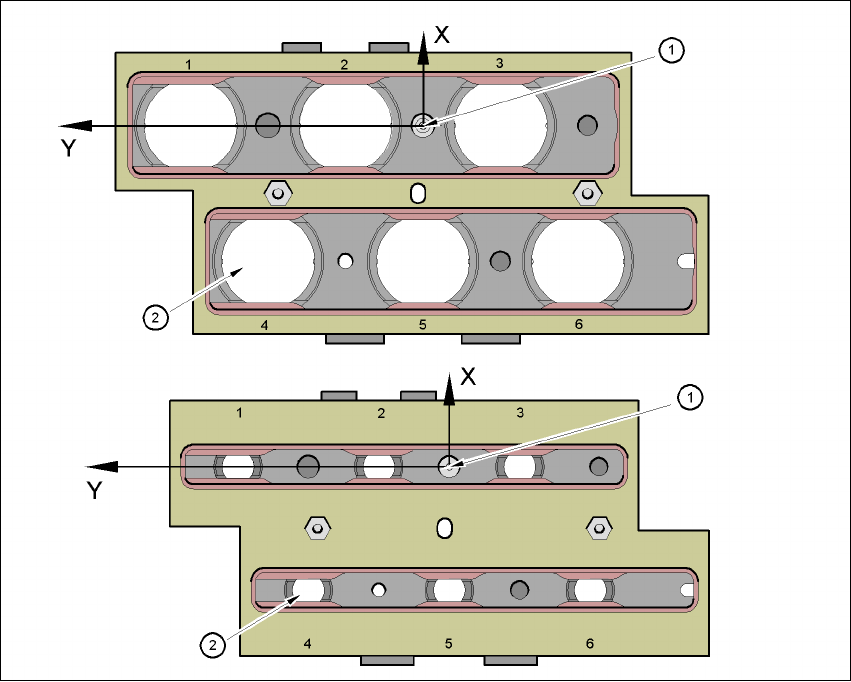

Fig. 7.1 - 26 Nozzle changer - Position detection
(1) Positioning fiducial
(2) Position of the nozzles in the magazine with respect to the positioning fiducial
User manual SIPLACE X-Series 7 Station extensions
Software Version SR.601.xx 11/2005 US Edition 7.1 Nozzle changer
403
7.1.3.10 "Row 2" nozzle changers for the 6-segment Collect&Place head
Item no. 00119664-xx
The "row 2" nozzle changer may be installed at the following locations:
X4 placement machine: Locations 1, 2, 3 and 4 (see Fig. 7.1 - 20
, page 394)
X3 placement machine: Locations 1, 3 and 4 (see Fig. 7.1 - 21
, page 395)
X2 placement machine: Locations 1 and 3 (see Fig. 7.1 - 22
, page 396)
The retrofit package contains an assembly kit and a nozzle take-off device with reject bin, in ad-
dition to the nozzle changer.
7
Fig. 7.1 - 27 Assembly kit for the "row 2" nozzle changer
(1) Assembly kit for the "row 2" nozzle changer
(2) Nozzle take-off device for type 8xx nozzles
(3) Nozzle take-off device for type 9xx nozzles
(4) Nozzle reject bin
7 Station extensions User manual SIPLACE X-Series
7.1 Nozzle changer Software Version SR.601.xx 11/2005 US Edition
404
7.1.4 Nozzle changer for the SIPLACE TwinHead
Magazine for 2 nozzles: Item no. 03005191-xx
Magazine for 1 nozzle: Item no. 03001807-xx
This nozzle changer can hold up to 12 nozzle magazines. There are two types of magazine avail-
able: standard magazines and magazines for special nozzles or grippers. The magazines are
seated on a common support. They are centered with two parallel pins and fixed in place with two
countersunk screws.
7
Fig. 7.1 - 28 Nozzle changers for the SIPLACE TwinHead
WARNING 7
Only install the associated nozzle changer for each placement head. There is a risk of head
crashes with mixed configurations.
7
7
