User manual SIPLACE X-Series 7 Station extensions
Software Version SR.601.xx 11/2005 US Edition 7.5 PCB barcode scanner
423
7.5.7.3 PCB overshoot over the machine with the dual conveyor

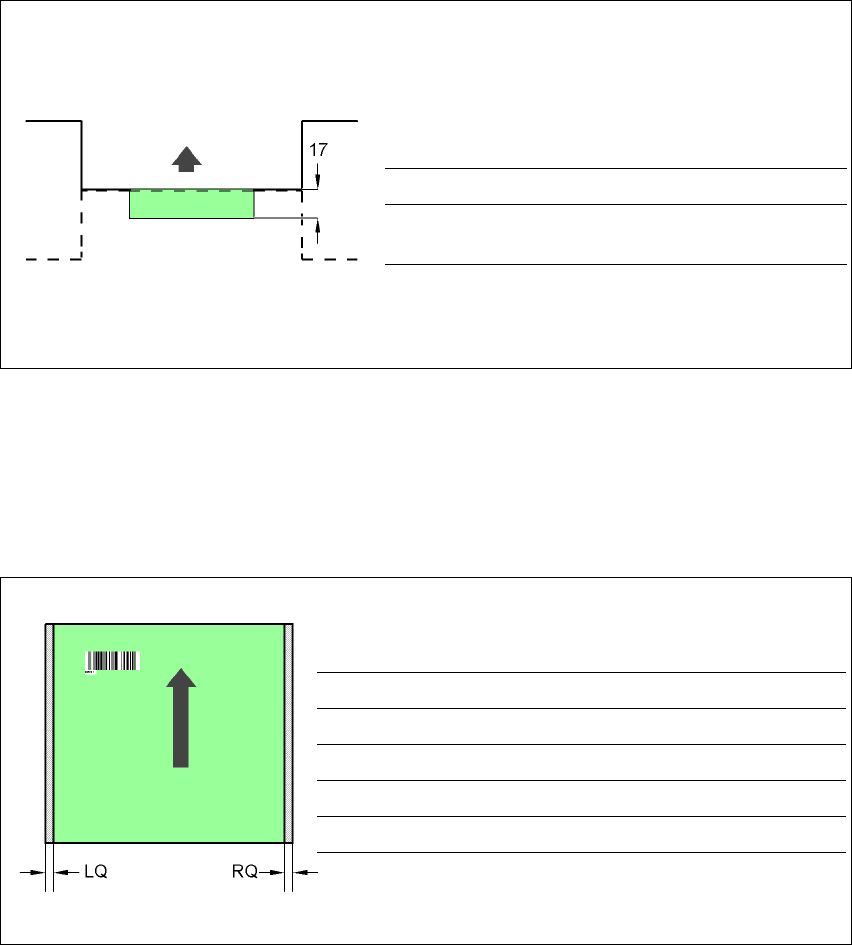

Fig. 7.5 - 6 PCB overshoot over the machine with the dual conveyor
7.5.7.4 Positioning along the width of the PCB -
Scanning beam
across
the direction of travel
Fig. 7.5 - 7 Positioning along the width of the PCB - Scanning beam across the direction of travel
PCB barcode scanner Overshoot [mm]
2D underside on the
dual conveyor
17
Input side of the downstream machine
Output side of the upstream machine
PCB barcode scanner LQ [mm] RQ [mm]
2D topside 3 3
1D topside 3 3
2D underside 5 5
1D underside 5 5
7 Station extensions User manual SIPLACE X-Series
7.5 PCB barcode scanner Software Version SR.601.xx 11/2005 US Edition
424
7.5.7.5 Positioning along the width of the PCB -
Scanning beam
along
the direction of travel,
PCB barcode scanner 1D
topside
Fig. 7.5 - 8 Positioning along the width of the PCB - Scanning beam along the direction of travel
PCB barcode scanner 1D topside
7.5.7.6 Positioning along the width of the PCB -
Scanning beam
along
the direction of travel,
PCB barcode scanner 1D
underside
Fig. 7.5 - 9 Positioning along the width of the PCB - Scanning beam along the direction of travel
PCB barcode scanner 1D underside
SC Single conveyor
DC1 Dual conveyor, track 1
DC2 Dual conveyor, track 2
SM1 Dual conveyor in Single conveyor mode, track 1
SM2 Dual conveyor in Single conveyor mode, track 2
7
PCB dimensions/conveyor LO [mm] RO [mm]
460 mm / SC 3 20
508 mm / SC 3 44
216 mm / DC1 3 24
250 mm / DC1
450 mm / SM1
358
216 mm / DC2 3 3
250 mm / DC2
450 mm / SM2
33
PCB dimensions/conveyor LU [mm] RU [mm]
460 mm / SC 20 3
508 mm / SC 44 3
216 mm / DC1 3 3
250 mm / DC1
450 mm / SM1
33
216 mm / DC2 24 3
250 mm / DC2
450 mm / SM2
58 3
User manual SIPLACE X-Series 7 Station extensions
Software Version SR.601.xx 11/2005 US Edition 7.6 PCB alignment
425
7.6 PCB alignment
Item no. 00119677-xx PCB alignment for single conveyor
Item no. 00119678-xx PCB alignment for dual conveyor
7.6.1 General
PCBs to be processed sometimes have a length to width ratio of 1:2 or worse. This means that
the shorter side of the PCB points in the direction of travel. During travel, such PCBs may twist
slightly and, as a result, the fiducials no longer lie within the PCB vision camera's search window.
In this case, the "PCB alignment" option ensures that these PCBs are realigned precisely at the
stopping position.
If PCBs with recesses in the direction of travel are processed, this may result in different process-
ing positions on machines with mechanical stoppers (HS-50, S-25 HM, F5 HM) and on machines
that monitor this position with laser light barriers (X-series, HF-series, HS-60, S-27 HM). The "PCB
alignment" option ensures that the PCBs are stopped at the same position on all PCB conveyors.
The "PCB alignment" option is available for both single and dual conveyors.
7

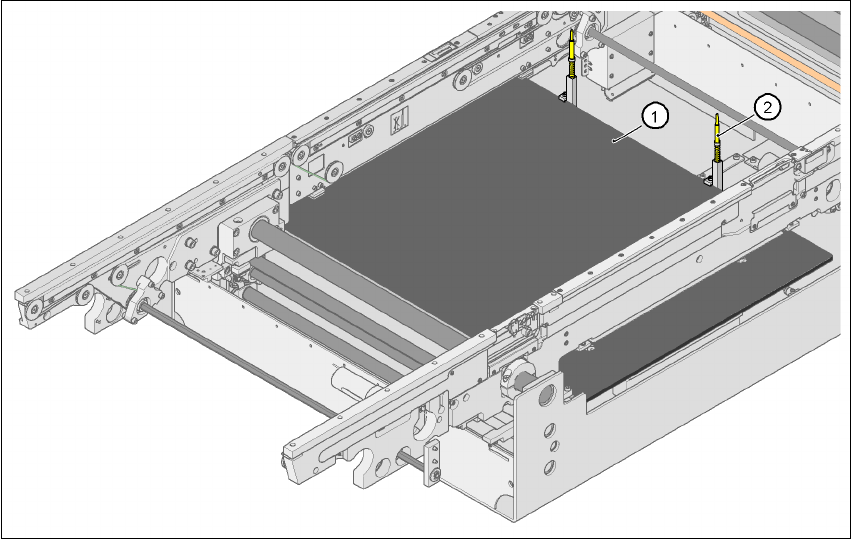

Fig. 7.6 - 1 PCB alignment
(1) Lifting table
(2) PCB stop
