User manual SIPLACE X-Series 7 Station extensions
Software Version SR.601.xx 11/2005 US Edition 7.12 Coplanarity laser module
437
7

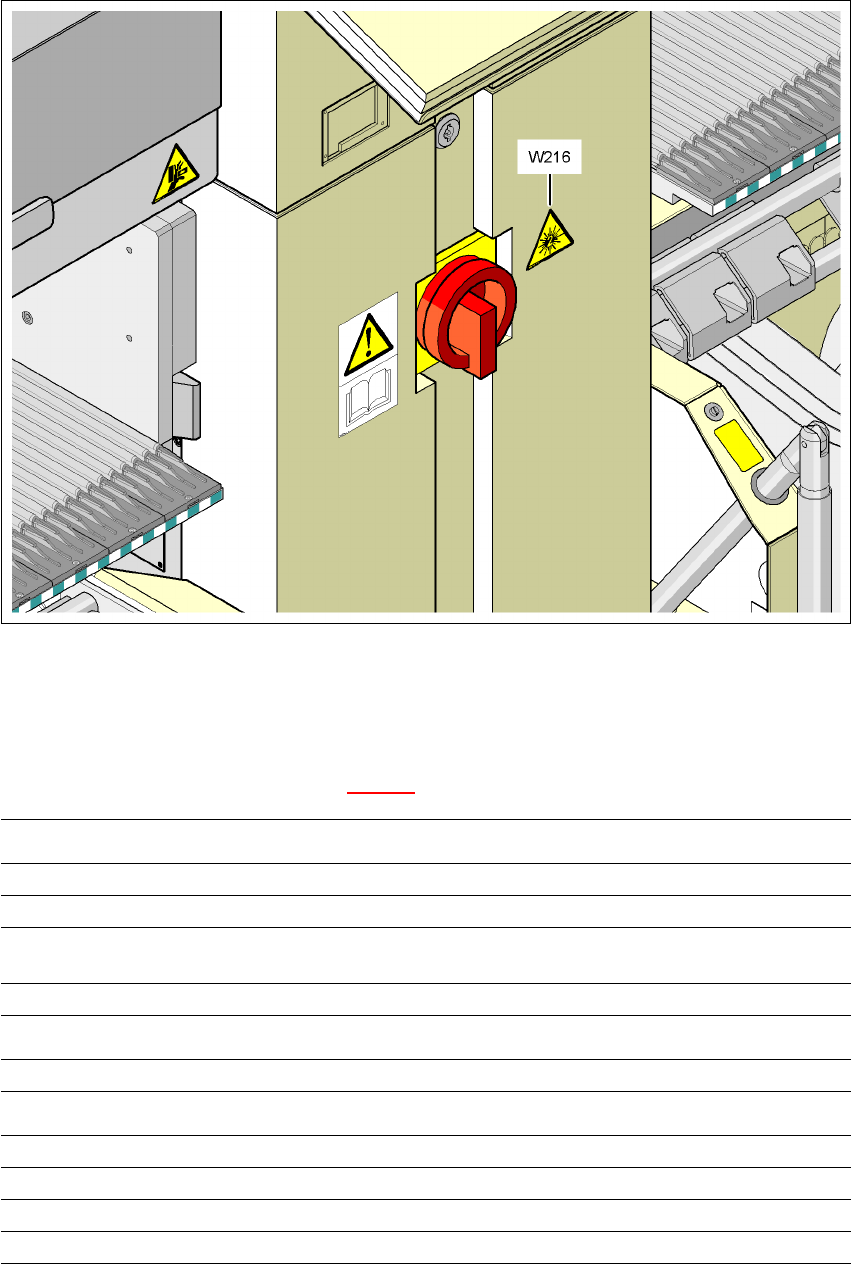

Fig. 7.12 - 3 Warning label W216 beside the main switch
7.12.5 LED displays on the controller
The statuses of the coplanarity module are indicated by LEDs. The LEDs can be found at the bot-
tom of the controller (see item 6 in Fig. 7.12 - 4
).
LED state Status display
Green Test object in measuring range
Yellow Middle of measuring range
Red
Outside the measuring range,
with low reflection
LED Off Laser switched off
LED Power Status display
LED lights up Supply voltage present
LED avg avg1 avg2
Off Off No averaging
Red Off Averaging 1
Off Red Averaging 2
Red Red Averaging 3
7 Station extensions User manual SIPLACE X-Series
7.12 Coplanarity laser module Software Version SR.601.xx 11/2005 US Edition
438
7
Fig. 7.12 - 4 Coplanarity laser module
(1) Laser sensor
(2) Detector
(3) Laser emitter
(4) Assembly bracket
(5) Controller
(6) LED displays and connections on the controller
User manual SIPLACE X-Series 7 Station extensions
Software Version SR.601.xx 11/2005 US Edition 7.13 Vacuum pump
439
7.13 Vacuum pump
Every Collect&Place head has a separate vacuum generator that supplies the holding and place-
ment circuit with the vacuum that it needs. The vacuum generator works on the Venturi principle.
The compressed air consumption of the X3 machine is, for example, around 550 st. l/min. This
means that the compressed air supply must be sized accordingly. If the owner does not have suf-
ficient capacity locally, the associated investment costs would be high, so we supply a vacuum
pump that will provide the necessary vacuum.
Other advantages of using the vacuum pump are:
– It roughly halves the machine's compressed air consumption.
– It reduces the input pressure.
– The placement machine can be easily integrated into existing lines.
– The ongoing operating costs reduce according to the energy costs.
The vacuum pump is maintenance-free and 100% oil-free. They have sufficient capacity to supply
the holding circuits of the Collect&Place heads.
PLEASE NOTE 7
There are currently vacuum pumps only for the 12-segment and 6-segment Collect & Place
heads.
Compressed air
consumption
without
vacuum pump
Compressed air
consumption
with
vacuum pump
Compressed air consumption
with 4 tape cutters and in
relation to the placement head
configuration
X2 placement machine
C&P / TH
C&P / C&P
X3 placement machine
C&P / C&P / TH
C&P / C&P / C&P
350 l/min.
450 l/min.
550 l/min.
700 l/min.
250 l/min.
200 l/min.
350 l/min.
300 l/min.
