2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels Software Version SR.601.xx 11/2005 US Edition
46
2.2.8 Warning label W207
2
Pos. W207 in Figs. 2.2 - 12 and 2.2 - 13, item no. 03009346-01
(number per placement system: 2 for the X2, 3 for the X3/X4)
2.2.8.1 Warning label W207 on the axis unit
2

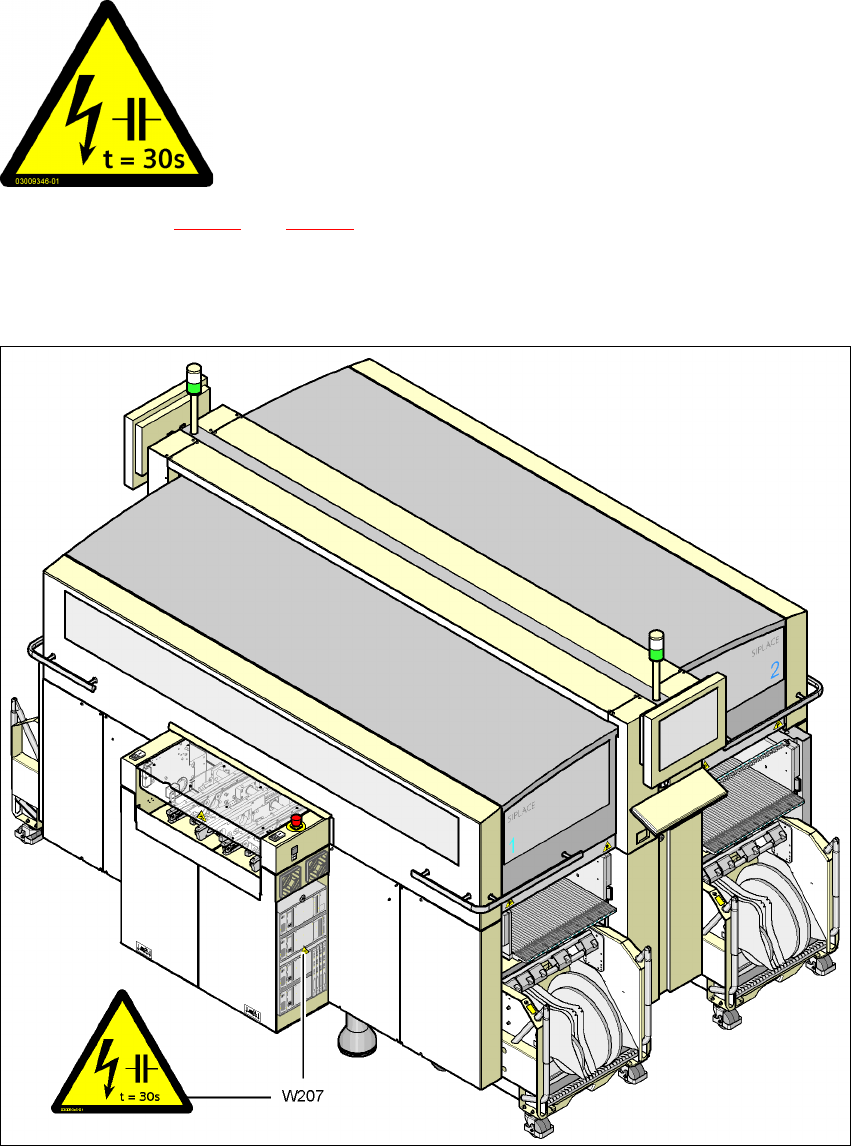

Fig. 2.2 - 12 Warning label W207 on the axis unit Macrolon panel
Pos. W207, item no. 03009346-01
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
User manual SIPLACE X-Series 2 Operational safety
Software Version SR.601.xx 11/2005 US Edition 2.2 Warning labels
47
2.2.8.2 Warning label W207 on the inrush current limitation for the main power supply
2

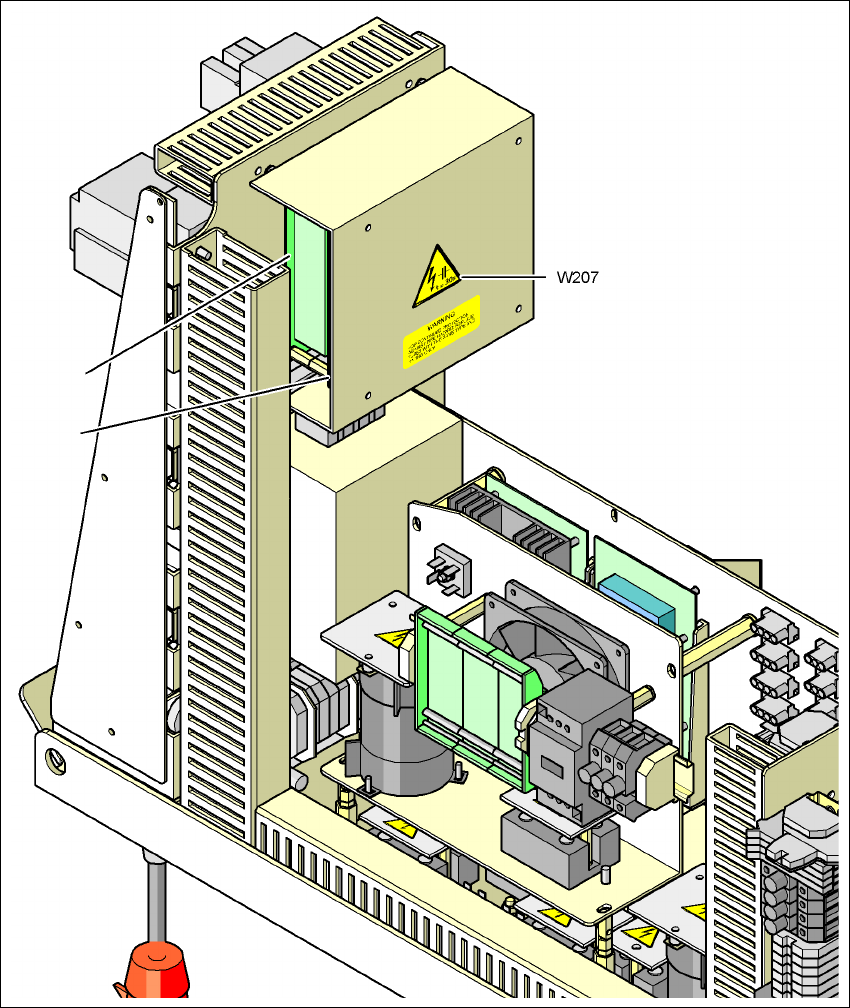

Fig. 2.2 - 13 Warning label W207 on the inrush current limitation for the main power supply
Pos. W207, item no. 03009346-01
PCB1 Board, inrush current limiter - transformer
PCB2 Board, inrush current limiter - servo unit
PCB2
PCB1
2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels Software Version SR.601.xx 11/2005 US Edition
48
2.2.9 Warning label W208 "Laser class 2" on the PCB conveyor
2
Pos. W208 "Laser class 2" on the PCB conveyor in Fig. 2.2 - 14, item no. 03009347-01
(number per placement system: 4 for the dual conveyor, 2 for the single conveyor)
2
2
2

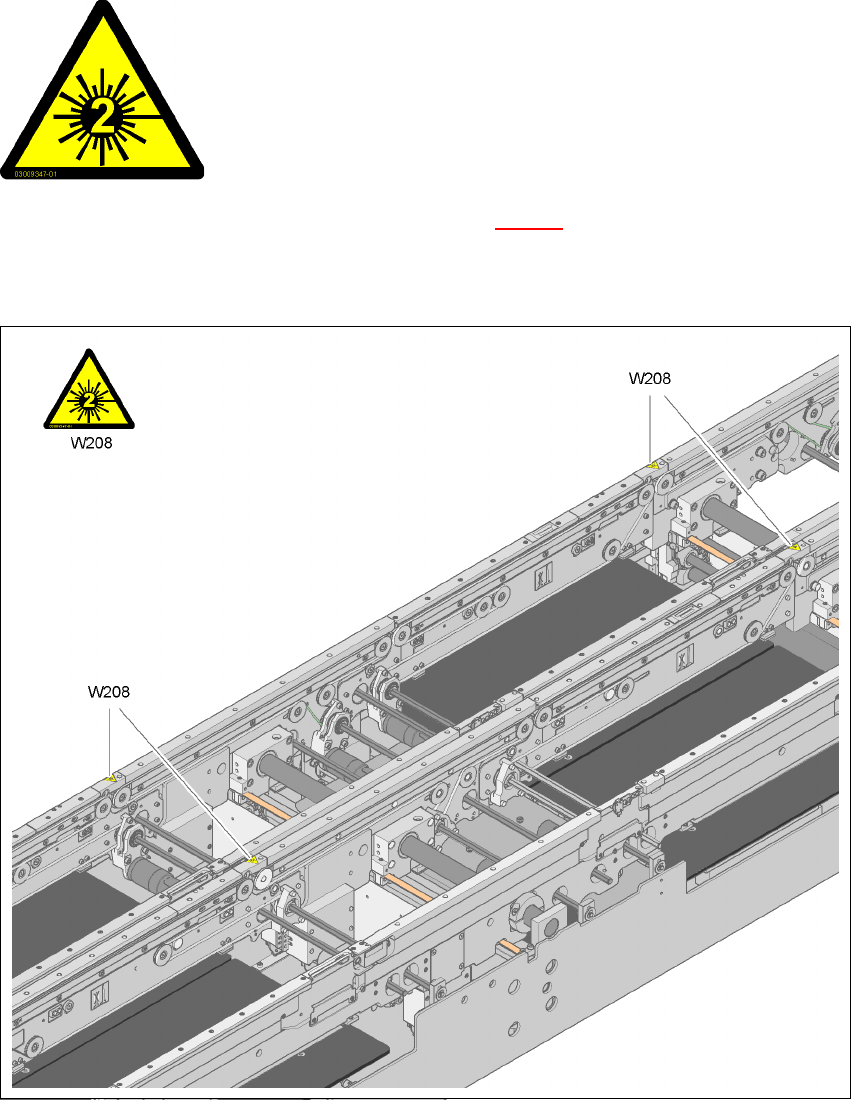

Fig. 2.2 - 14 Warning label W208 "Laser class 2" on the PCB conveyor
Pos. W208, item no. 03009347-01
2
2
LASER RADIATION!
Do not look into beam
Laser class 2
