User manual SIPLACE X-Series 2 Operational safety
Software Version SR.601.xx 11/2005 US Edition 2.2 Warning labels
49

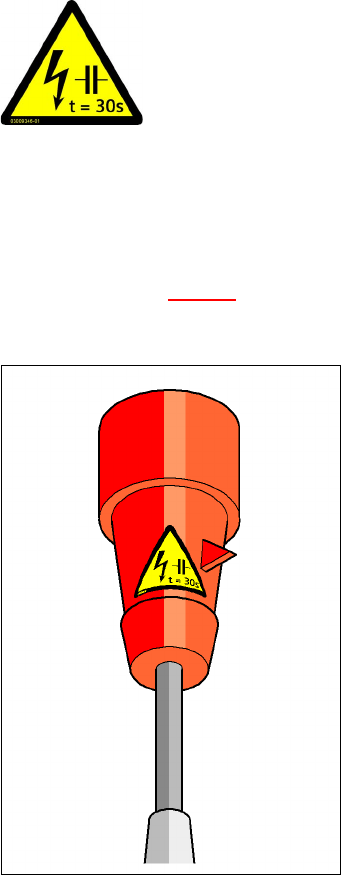

2.2.10 Warning label W211 on the CEKON plug
2
Pos. W 211 in Fig. 2.2 - 15 (number per placement system: 1)
2
Fig. 2.2 - 15 Warning label W211 on the CEKON plug
Pos. W211, item no. 03009351-01
2
RESIDUAL VOLTAGE!
Wait 30 seconds after disconnecting the main power plug from the mains to
allow any residual voltages to dissipate.
NAFTA region: Hazardous Voltage
Residual power at plug prongs and wire ends will cause death or serious
injury. Avoid contact with power plug and/or wire ends for 30 seconds
2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels Software Version SR.601.xx 11/2005 US Edition
50

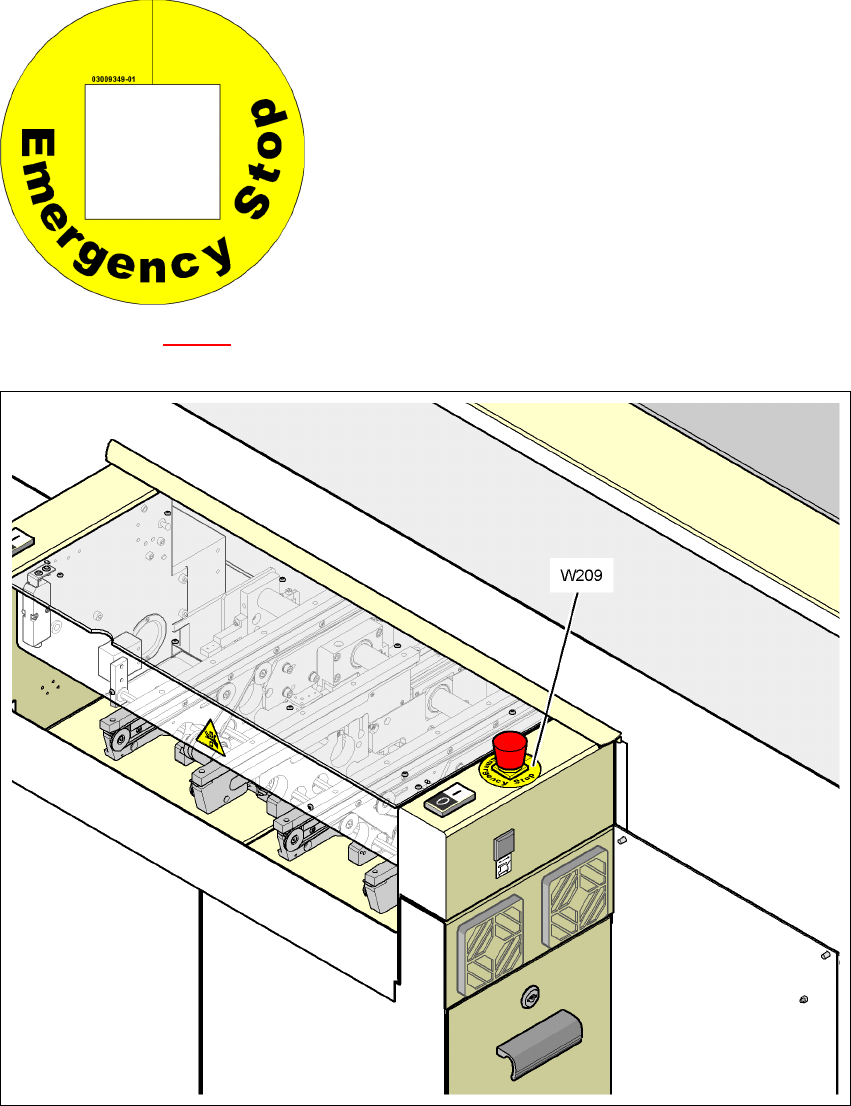

2.2.11 Warning label W209 on the emergency stop buttons
2
Pos. W209 in Fig. 2.2 - 16, item no. 03009349-01 (number per placement system: 2)
2
2
Fig. 2.2 - 16 Warning label W209 on the emergency stop buttons
Pos. W209, item no. 03009349-01
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
For Australia, Canada, Mexico and USA,
warning label W209 is affixed to the extension
kit instead of the yellow ring on the emergency
stop buttons.
User manual SIPLACE X-Series 2 Operational safety
Software Version SR.601.xx 11/2005 US Edition 2.2 Warning labels
51

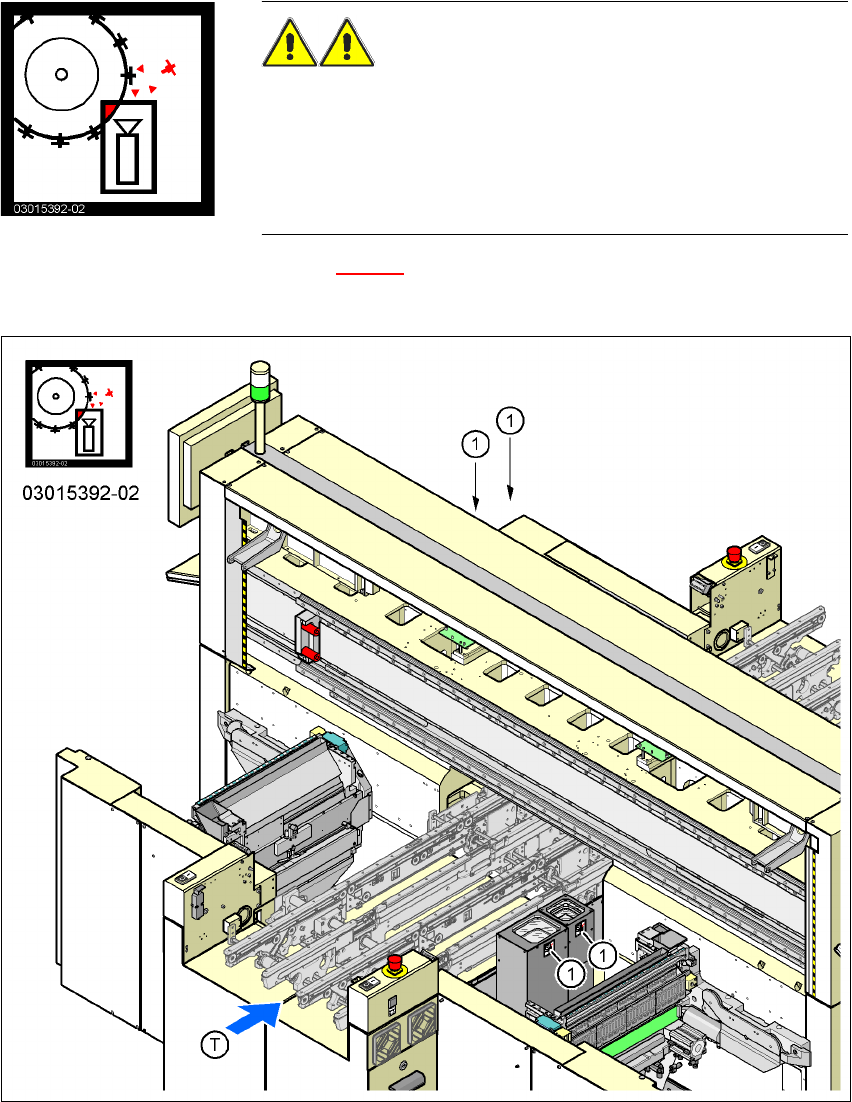

2.2.12 "Head crash" information plate on the component cameras of the TwinHead
"Head crash" information plate in Fig. 2.2 - 17, item no. 03015392-02
(number per placement system: 4 for the X2, 2 for the X3)
2
Fig. 2.2 - 17 "Head crash" information plate on the component cameras of the TwinHead
(1) "Head crash" information plate on the component cameras of the TwinHead
WARNING RISK OF HEAD CRASH 2
When the placement head is changed from the TwinHead to the
Collect&Place head, the TwinHead's component cameras (station-
ary, P&P, type 33, 55 x 45, and type 25, 16 x 16) must be removed,
otherwise the Collect&Place head will collide with the camera
housings.
