2 Operational safety User manual SIPLACE X-Series
2.5 Safety instructions for operating the machine Software Version SR.601.xx 11/2005 US Edition
60
2.5.7 Safety instructions for moving the component trolley
WARNING
To prevent accidents, ALWAYS follow the rules listed below when you move the component trol-
ley.
Æ Always hold the handles with both hands when you want to move the component trolley.
Æ Remember that a component trolley with the full complement of feeder modules can tip over
sideways or forward on gradients of 20° or more.
Æ Make sure that the surface on which the trolley is moved has a significantly smaller gradient.
Æ Be careful not to collide with obstacles. The trolley could tip forward if it is traveling fast
enough.
2.5.8 Note on the ESD safety of the placement machines
Only use nozzles that are identified as conductive. This is the only way to meet the requirements
for the ESD safety of the machine.
User manual SIPLACE X-Series 2 Operational safety
Software Version SR.601.xx 11/2005 US Edition 2.6 Safety equipment
61
2.6 Safety equipment
2.6.1 Protective covers
2

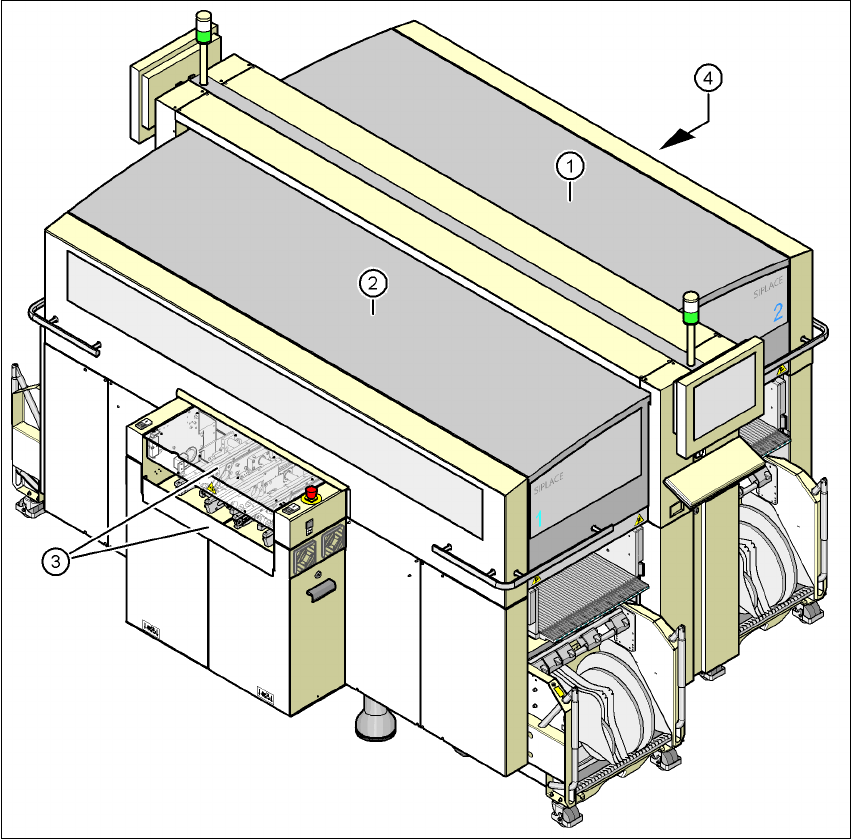

Fig. 2.6 - 1 Protective covers
(1) Protective cover, short
(2) Protective cover, long
(3) Cover flap and hand guard on the input belt
(4) Cover flap and hand guard on the output belt
2
The traveling range of the gantries has two protective covers that can be swung upwards (items
1 and 2). There are side screens to prevent access to the inside of the machine from the side. The
2 Operational safety User manual SIPLACE X-Series
2.6 Safety equipment Software Version SR.601.xx 11/2005 US Edition
62
two cover flaps (item 3 and 4) over the input or output belt of the PCB conveyor prevent access
to the PCB conveyor.
Function 2
The main power supply to the gantry axes is interrupted immediately if one of the protective covers
is swiveled up or one of the cover flaps on the PCB conveyor is raised. The gantry axes stop mov-
ing. The message "Close cover" is displayed on the screen.
Æ Close the protective covers and press one of the Start buttons (Pos. 1 in Fig. 2.6 - 2) to con-
tinue placement.
2
Fig. 2.6 - 2 Position of the Start buttons (white) on the machine
(1) Start button (white) on the machine
